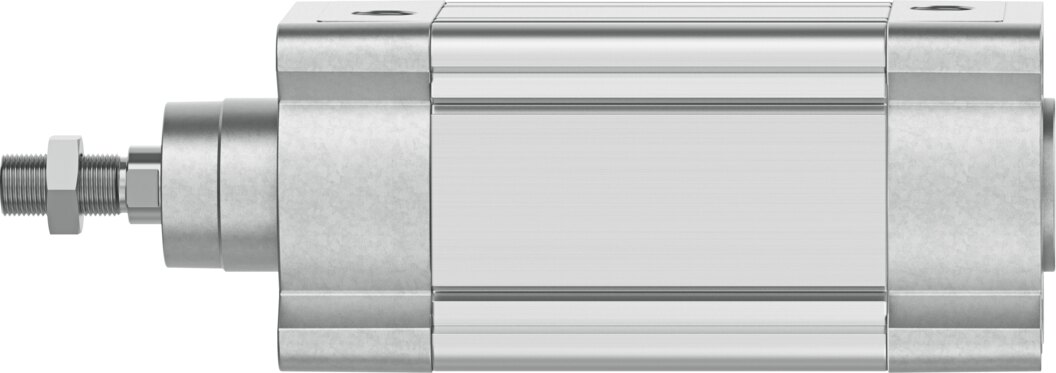

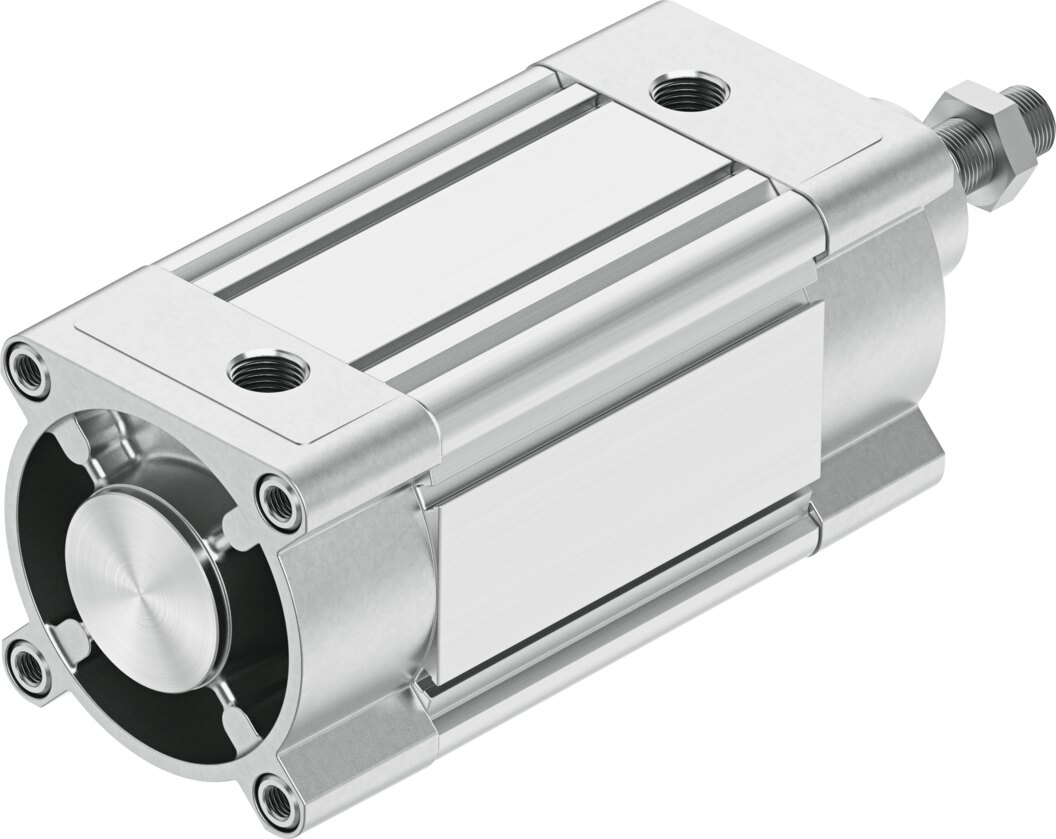

Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 100 mm DSBC-100-100-D3-PPSA-N3 - Festo 8165689

Name: Double-acting ISO 15552 standard cylinder Ø 100 mm stroke 100 mm DSBC-100-100-D3-PPSA-N3 - Festo 8165689
Brand: Festo
SKU: FES-8165689
Price: 360.38 EUR
Availability: InStock

Festo ✓ Original product Brand new

With 4712 N of advance force at 6 bar, the double-acting ISO 15552 standard cylinder DSBC-100-100-D3-PPSA-N3 moves loads over a 100 mm stroke, the piston measures Ø 100 mm. The self-adjusting end-position cushioning PPS adapts to load and speed, cushioning length 31 mm. The cylinder weighs 5.378 kg.

Net

€360.38

excl. VAT

Item FES-8165689

Manufacturer no. DSBC-100-100-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

4712 N of theoretical advance force at 6 bar over a 100 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-100-100-D3-PPSA-N3 with a Ø 100 mm piston. Prepared for proximity switches, port G1/2.

Benefits at a glance

Theoretical force at 6 bar: 4712 N advance, 4418 N return
End-position cushioning PPS with no adjustment, up to 2.5 J
Position detection via proximity switches
Operating pressure 0.4 to 12 bar
Mounting dimensions to ISO 15552, interchangeable
Piston rod thread m20x1.5, piston rod: high-alloy steel

Use

Typical tasks for the DSBC-100-100-D3-PPSA-N3 are clamping, ejecting and shifting over 100 mm in assembly and test systems. The DSBC-100-100-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.

Technical data

Order type	DSBC-100-100-D3-PPSA-N3
Festo part number	8165689
Stroke	100 mm
Piston diameter	100 mm
Piston rod thread	m20x1.5
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.4 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	2.5 J
Cushioning length	31 mm
Theoretical force at 6 bar, return stroke	4418 N
Theoretical force at 6 bar, advance stroke	4712 N
Moving mass	1390 g
Moving mass for 0 mm stroke	1000 g
Additional moving mass per 10 mm stroke	39 g
Product weight	5378 g
Basic weight for 0 mm stroke	3728 g
Additional weight per 10 mm stroke	152 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/2
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Weight	4.8 kg
Manufacturer	Festo
Hersteller-Nr	DSBC-100-100-D3-PPSA-N3
EAN	4052568598402
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/2
Piston Ø [mm]	100
Stroke [mm]	100
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	100
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
