Pilot-operated pressure regulator SYNTESI, size 2, G 1, type 5626R006 - Riegler 146089
The pilot-operated pressure regulator SYNTESI takes its set point as a pneumatic signal from an external pilot regulator. Port G 1, inlet pressure up to 13 bar, flow rate 7700 Nl/min at Δp 1 bar, temperature -10 to 50 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
On the pilot-operated pressure regulator SYNTESI an external pilot regulator sets the outlet pressure pneumatically. Inlet pressure up to 13 bar, flow rate 7700 Nl/min at Δp 1 bar, temperature -10 to 50 °C, size 2. Two rolling diaphragms: higher flow than the standard SYNTESI regulator, up to 7700 Nl/min at Δp 1 bar, less friction.
Benefits
- Flow rate 7700 Nl/min at Δp 1 bar
- Temperature range -10 to 50 °C
- Housing made of technopolymer, seals made of NBR
Applications
- Pressure control with a remotely mounted pilot regulator
- Systems with varying flow rates and fluctuating inlet pressure
Technical data
| Size | 2 |
|---|---|
| Inlet pressure max. | 13 bar |
| Temperature range | -10 to 50 °C |
| Housing | technopolymer |
| Pilot cap | anodised aluminium plate |
| Pilot port | M5 |
| Seal material | NBR |
| Diaphragm | NBR 60 Shore (hardness) with polyester fabric insert |

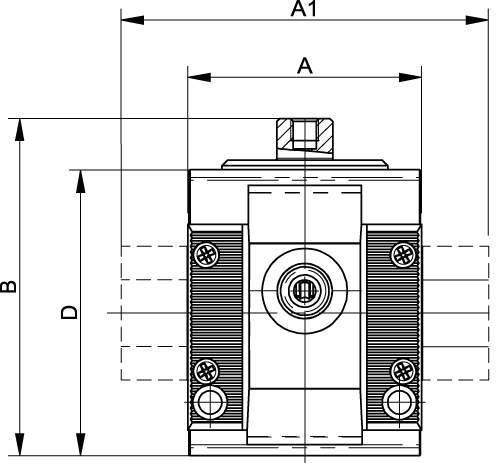

| Dimension A | 60.5 mm |
| Dimension A1 | 95.0 mm |
| Dimension B | 81.0 mm |
| Dimension D | 70.5 mm |
| Series | SYNTESI |
| Medium | compressed air, neutral gases |
| Inlet port | G 1 |
| Outlet port | G 1 |
| Front and back port thread | G 1/4 |
| Flow rate | 7700 Nl/min at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
| Flow rate | 7300 Nl/min at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Type (Riegler) | 5626R006 |
| Article number (Riegler) | 146089 |
| Manufacturer | Riegler |
| Hersteller-Nr | 5626R006 |
| EAN | 4047322776622 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Material | Technopolymer |
| Thread | G 1 |
| Size BG | 2 |
| Housing material | Technopolymer |
| Inlet pressure max. [bar] | 13 |
| Pneumatic connection | G1 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
