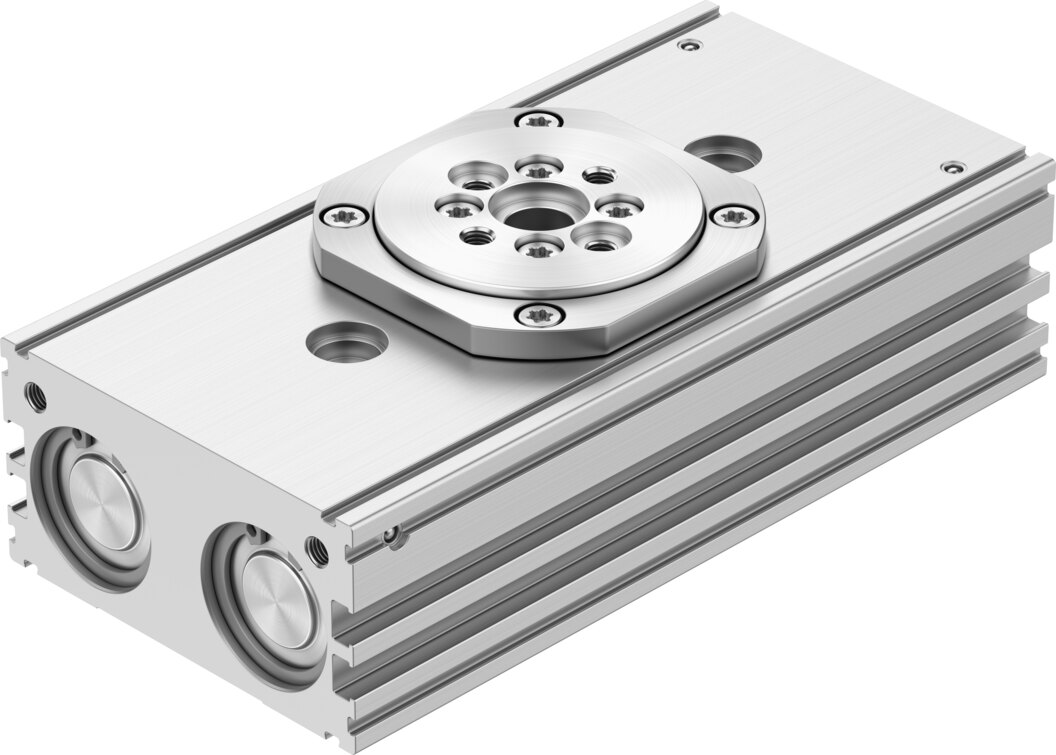

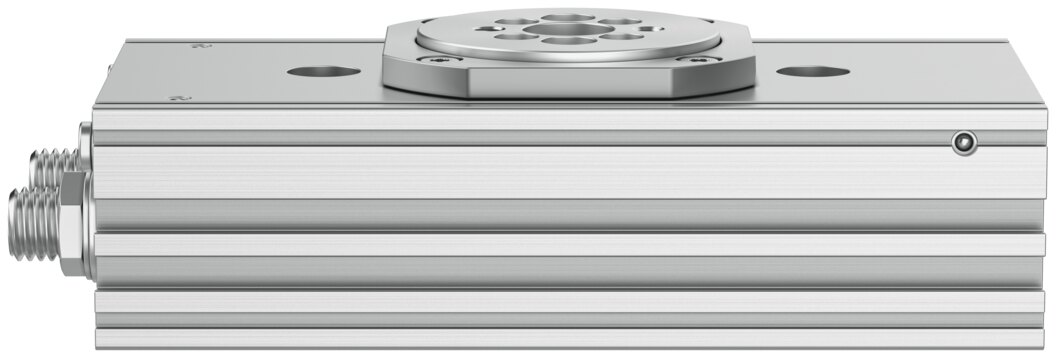

Semi-rotary drive, double-acting, 180°, 6.6 Nm at 6 bar, with elastic cushioning DRRS-25-180-FH-PA - Festo 8163613

The double-acting DRRS-25-180-FH-PA converts compressed air via rack and pinion into a rotary motion of 180°, with 6.6 Nm at 6 bar. It is connected via M5 and mounted via through-holes, female threads or a mounting kit.

Benefits

• Theoretical torque 6.6 Nm at 6 bar, operating pressure 3 to 8 bar
• Swivel angle 180°, adjustable from 45° to 200°, +10/-100° per end position
• Elastic cushioning rings at both ends, cushioning angle 25.5°, mass moment of inertia up to 0.04 kgm²
• Repetition accuracy 0.07°, plate axial runout 0.07 mm
• Flanged shaft carries 450 N static axial load and 10 Nm bending moment
• Cleanroom class 9 to ISO 14644-1, suitable for battery production (F1a)

Applications

Typical tasks are turning and swivelling motions in assembly and handling at 0 to 60 °C ambient temperature.
