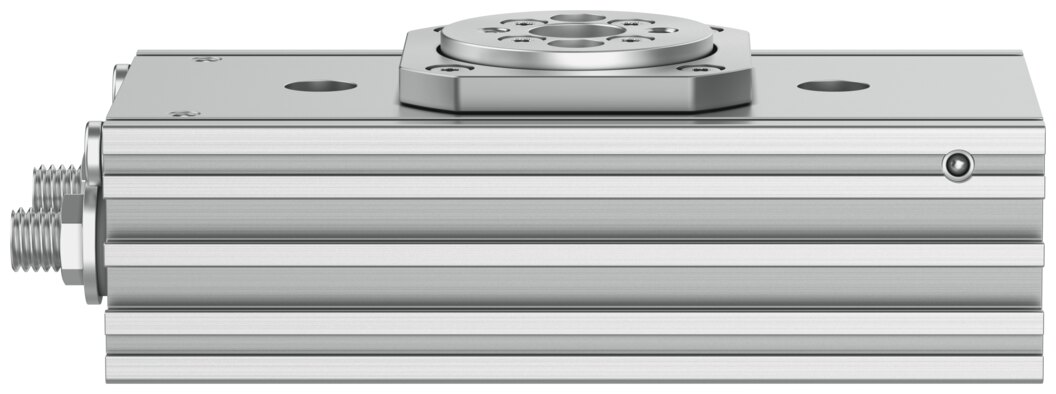

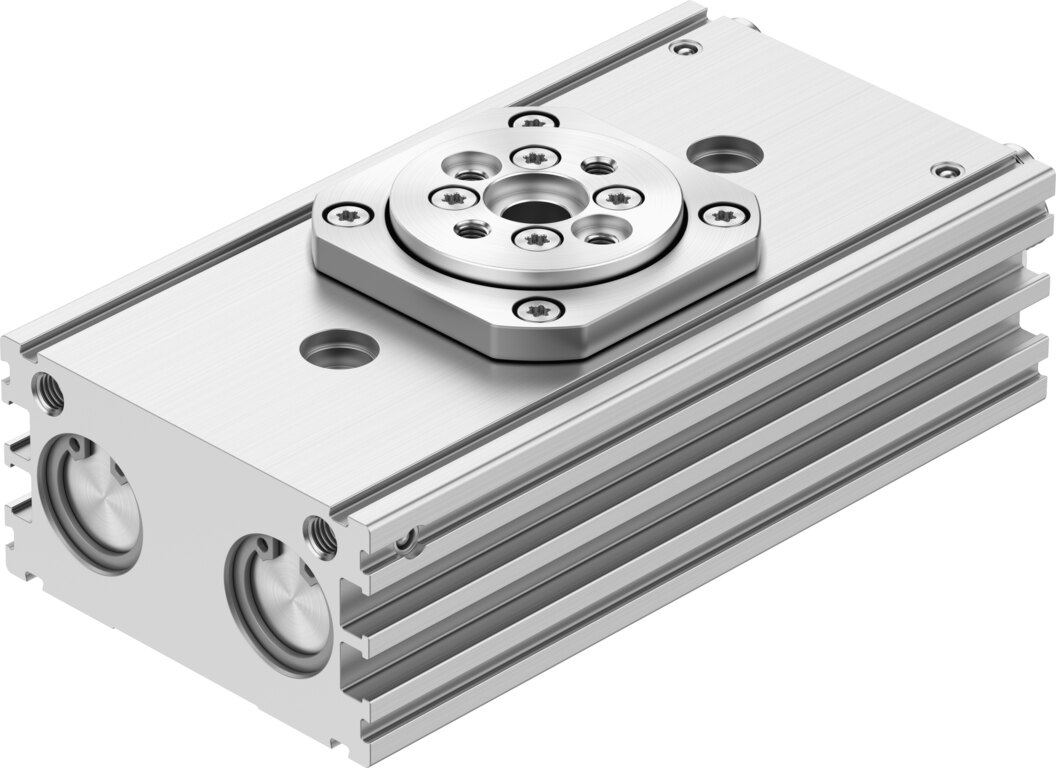

Semi-rotary drive DRRS-16-180-FH-PA - Festo 8163609
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 16 |
|---|---|
| Cushioning angle | 19.5 deg |
| Setting range of swivel angle for each end position | +10 /-100 deg |
| Axial eccentricity poppet valve | 0.07 mm |
| Swivel angle | 180 deg |
| Min. swivel angle | 45 deg |
| Max. swivel angle | 200 deg |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Design | Rack and pinion |
| Position detection | Via proximity switch |
| Operating pressure | 3 ... 8 bar |
| Repetition accuracy | 0.07 deg |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Storage temperature | -20 ... 60 °C |
| Ambient temperature | 0 ... 60 °C |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 2.1 Nm |
| Permissible mass moment of inertia | 0.008 kgm² |
| Max. bending moment | 4 Nm |
| Max. axial load static | 140 N |
| Product weight | 630 g |
| Type of mounting | With mounting kit, With through-hole, With female thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Anodised aluminium |
| Flange shaft material | Wrought aluminium alloy |
| Pinion material | Tempered steel |
| Weight | 0.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DRRS-16-180-FH-PA |
| EAN | 4052568627843 |
| Zolltarifnummer | 84123900 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
