Semi-rotary drive, double-acting, 180°, 0.9 Nm at 6 bar, with elastic cushioning DRRS-12-180-FH-PA - Festo 8163607

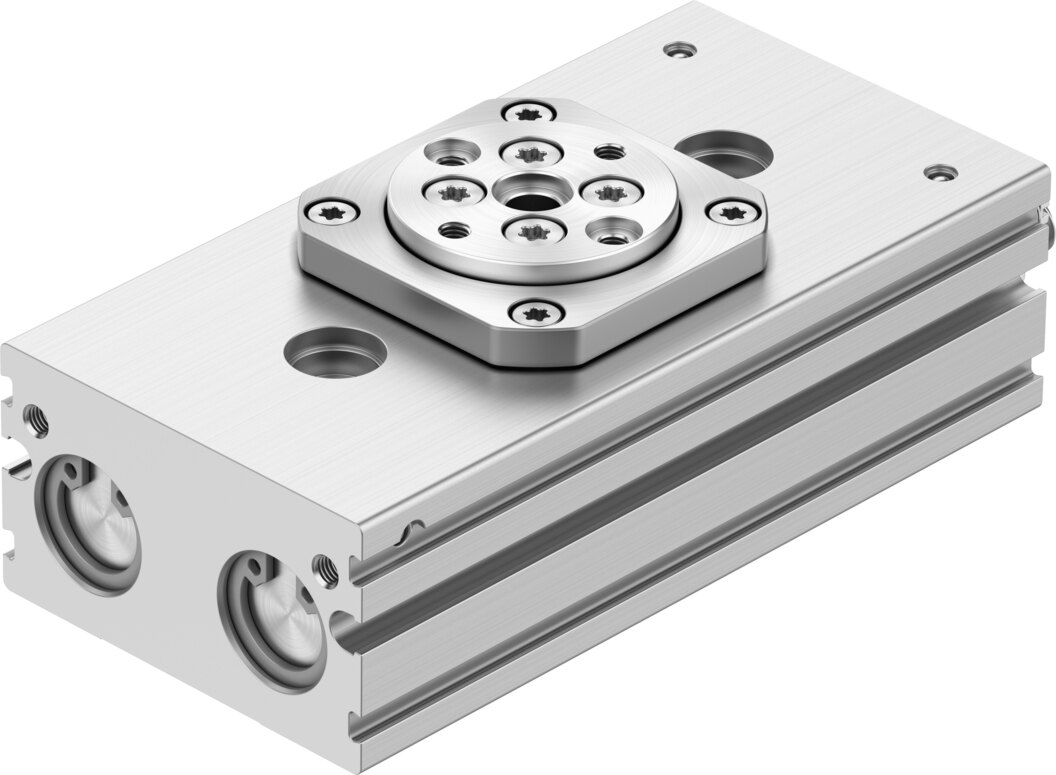

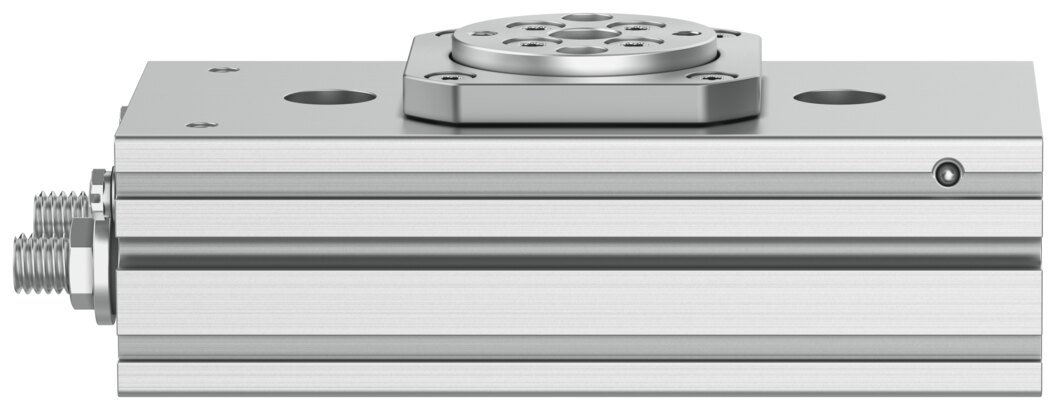

The double-acting DRRS-12-180-FH-PA converts compressed air via rack and pinion into a rotary motion of 180°, with 0.9 Nm at 6 bar. It is connected via M3 and mounted via through-holes, female threads or a mounting kit.

Benefits

• Theoretical torque 0.9 Nm at 6 bar, operating pressure 3 to 8 bar
• Swivel angle 180°, adjustable from 45° to 200°, +10/-100° per end position
• Elastic cushioning rings at both ends, cushioning angle 23.5°, mass moment of inertia up to 0.005 kgm²
• Repetition accuracy 0.05°, plate axial runout 0.05 mm
• Flanged shaft carries 80 N static axial load and 2 Nm bending moment
• Cleanroom class 9 to ISO 14644-1, suitable for battery production (F1a)

Applications

The drive suits swivel tasks in assembly cells and handling systems, permitted at 0 to 60 °C.
