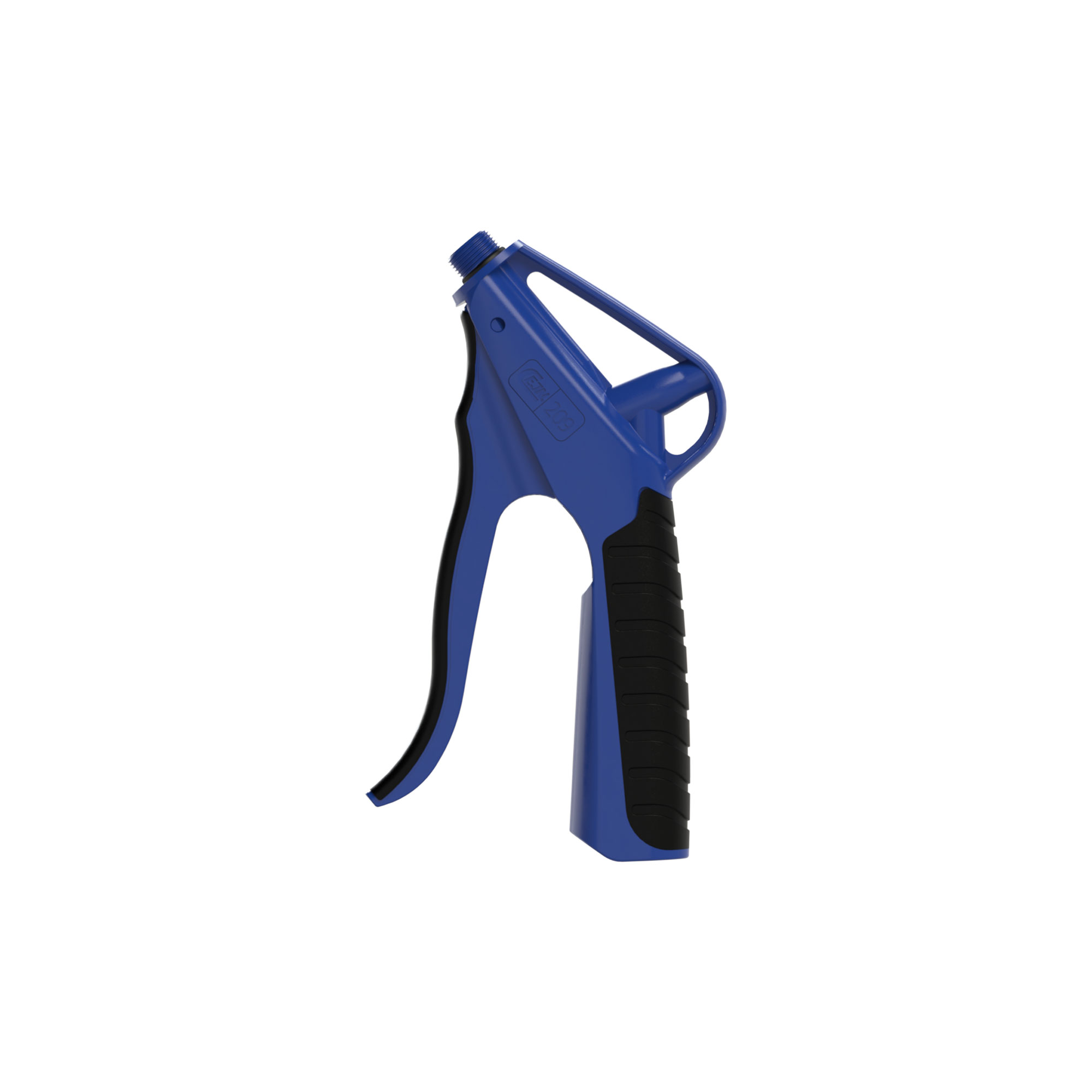

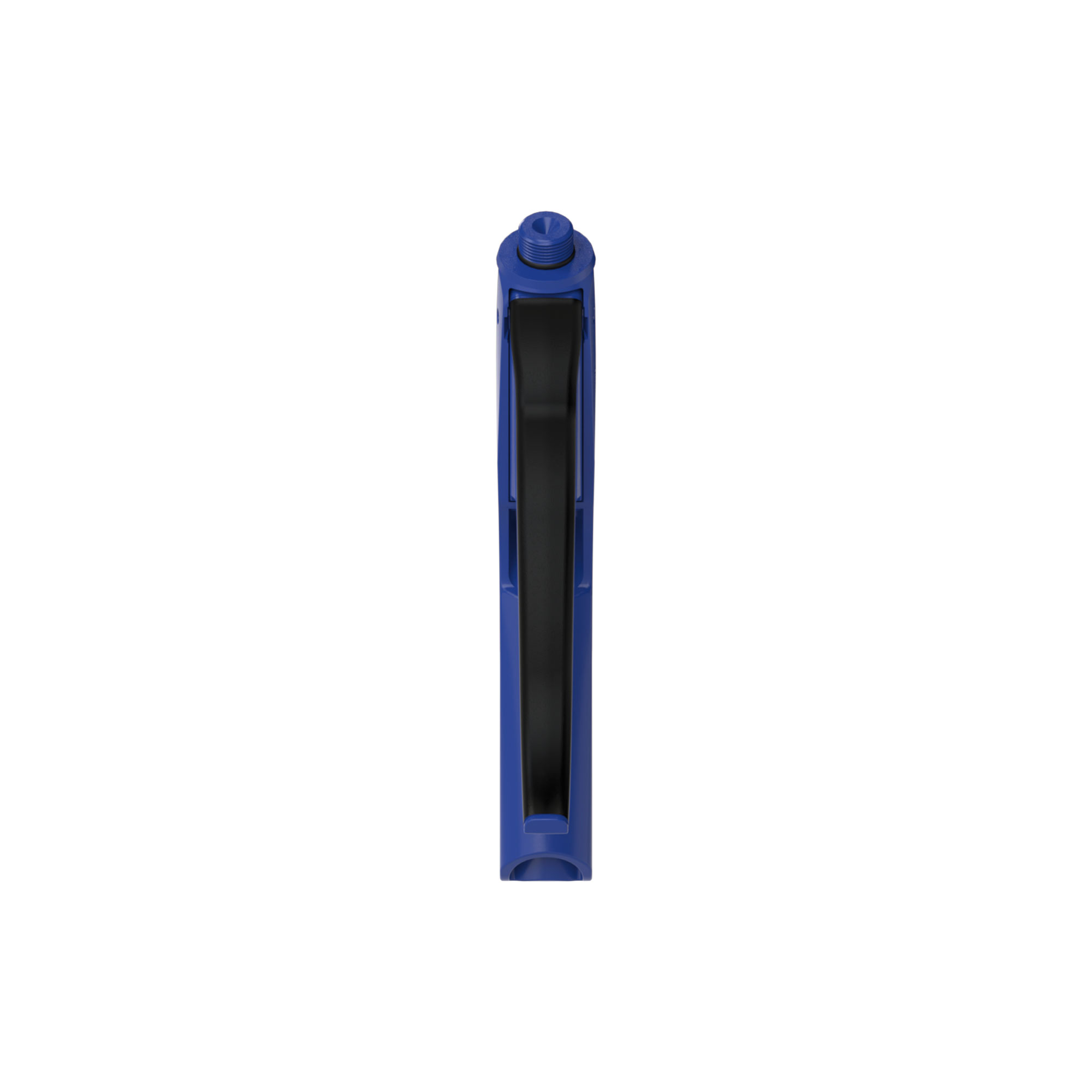

Metering basic blow gun in POM without nozzle, softgrip, Rc 1/4 female thread, type 36 K/T.209 - Riegler 163275
Clean workpieces and machines without detours: metering basic blow gun, high blowing force, softgrip. Operating pressure up to 16 bar, Rc 1/4 female thread, temperature range -20 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The metering basic blow gun 36 K/T.209 is rated for up to 16 bar operating pressure and connects via a Rc 1/4 female thread. Softgrip surfaces on grip and lever ensure a secure hold.
Benefits
- Operating pressure up to 16 bar
- Softgrip surfaces on grip and lever for a secure hold
- Ergonomic for right- and left-handers, several hanging positions on the bracket
- Temperature range -20 to 60 °C
- Rc 1/4 female thread for screwing in a plug or fitting
- M14x1 male thread on the gun head
Applications
In workshops and production it blows chips, dust and residual moisture off workpieces, machines and fixtures.
Technical data
| Type no. | 36 K/T.209 |
|---|---|
| Max. operating pressure | 16 bar |
| Temperature range | -20 to 60 °C |
| Material | POM |
| Connecting thread | Rc 1/4 female |
| Nozzle thread on gun | M14x1 male |
| Connection | Rc 1/4 female thread |
| Weight | 0.11 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | 36 K/T.209 |
| EAN | 4047322875073 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Sweden |
| Thread | Rc 1/4 |
| Thread type | Internal thread |
| Betriebsdruck max [bar] | 16 |
| Pneumatic connection | Rc1/4 |
| Temperaturbereich | -20-60 °C |
| Temperature (max.) | 60 |
