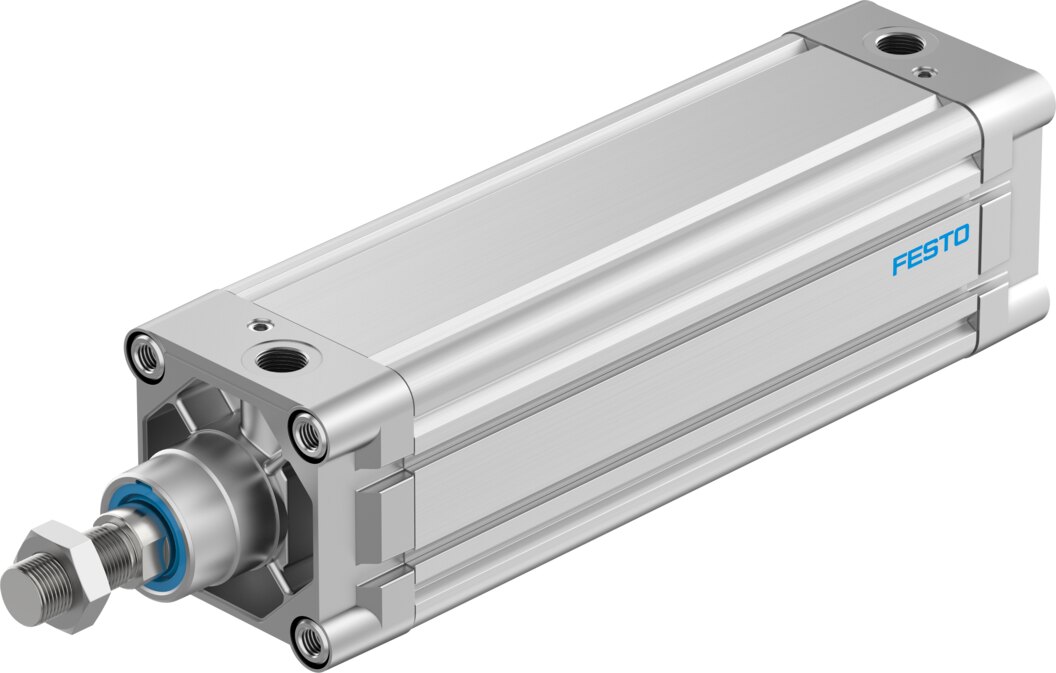

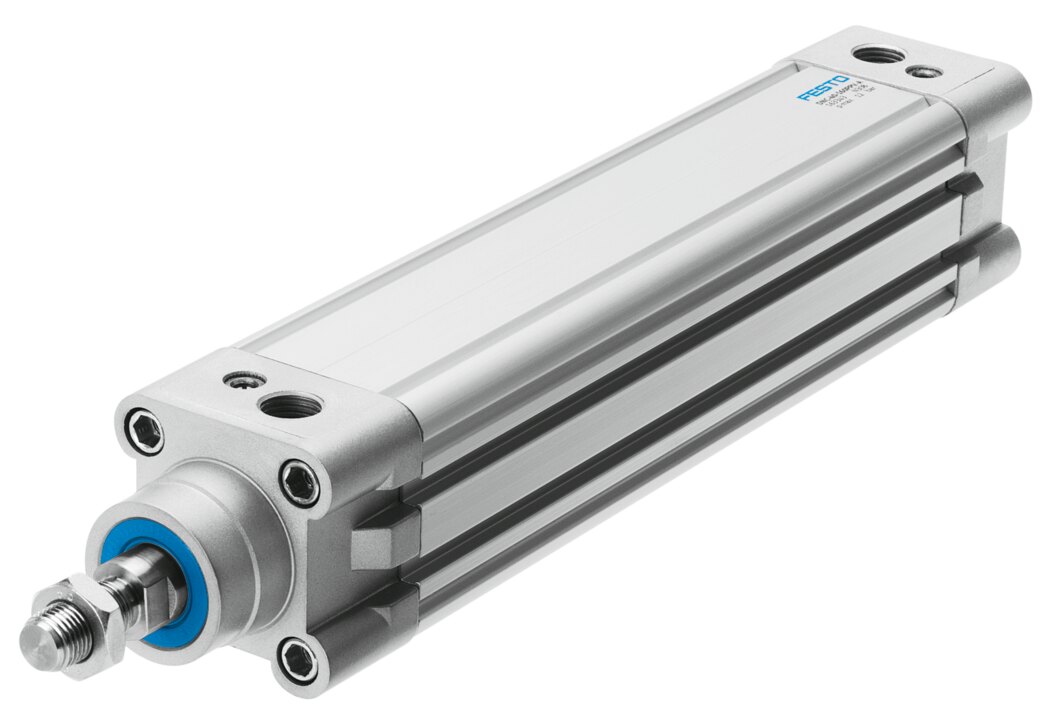

ISO cylinder DNC-40- - - Festo 163334
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Stroke | 2 ... 2000 mm |
|---|---|
| Piston diameter | 40 mm |
| Based on standard | ISO 15552 |
| Cushioning | Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch, None |
| Variants | Improved running performance, Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Piston rod with external hexagon, Extended piston rod, Clamping unit on the piston rod, With protection against rotation, High corrosion protection, Dust protection, Uniform, slow movement, Low friction, Through piston rod, Through, hollow piston rod, Heat-resistant seals max. 120°C, Temperature range -40 to 80°C, Monostable valve, mounted on right, unactuated piston rod, retracted, Monostable valve, mounted on right, unactuated piston rod, advanced, Bistable valve, mounted on right, unactuated piston rod, retracted, Monostable valve, mounted on left, unactuated piston rod, retracted, Monostable valve, mounted on left, unactuated piston rod, advanced, Bistable valve, mounted on left, unactuated piston rod, retracted, Piston rod at one end |
| Protection against torque/guide | Square piston rod |
| Operating pressure | 0.2 ... 12 bar |
| Mode of operation | Double-acting |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Explosion protection certification outside the EU | EPL Gb (GB) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress, 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L, VDMA24364 zone III |
| Ambient temperature | -40 ... 120 °C |
| Impact energy in end positions | 0.2 J |
| Max. torque for protection against torsion | 1.1 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 633 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 633 ... 754 N |
| Type of mounting | With female thread, With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS compliant |
| Material cover | Die-cast aluminium, coated |
| Material cylinder barrel | Wrought aluminium alloy, Smooth-anodised |
| Weight | 0.95 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DNC-40- - |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
