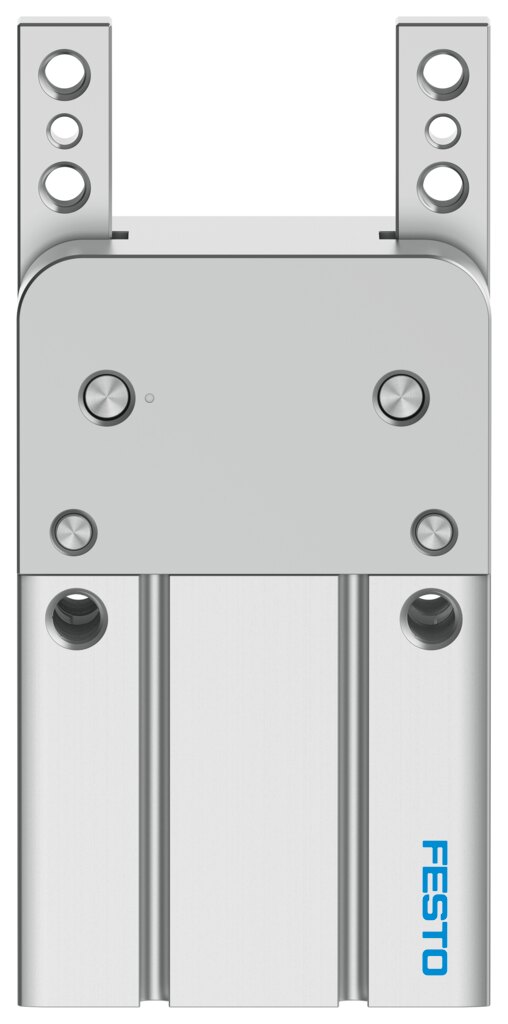

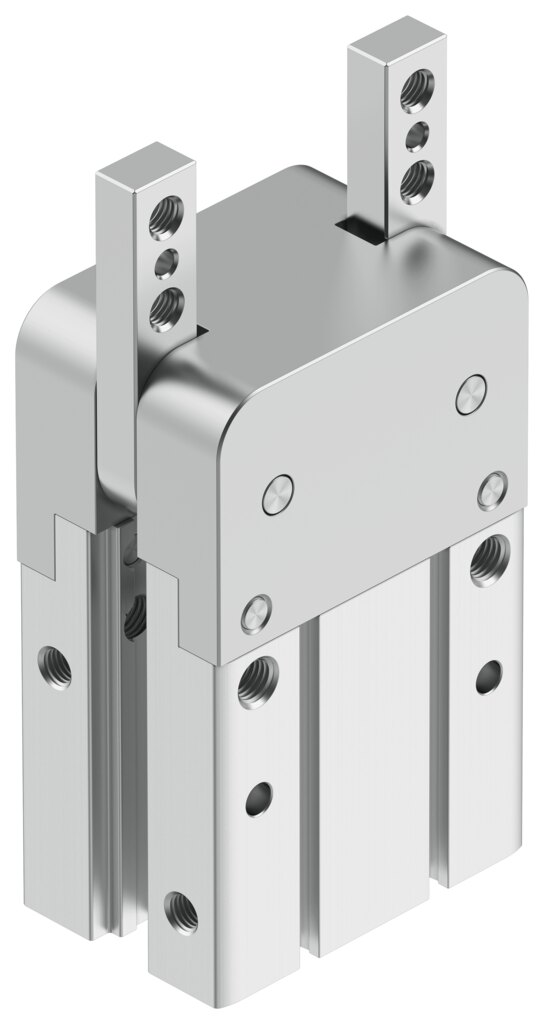

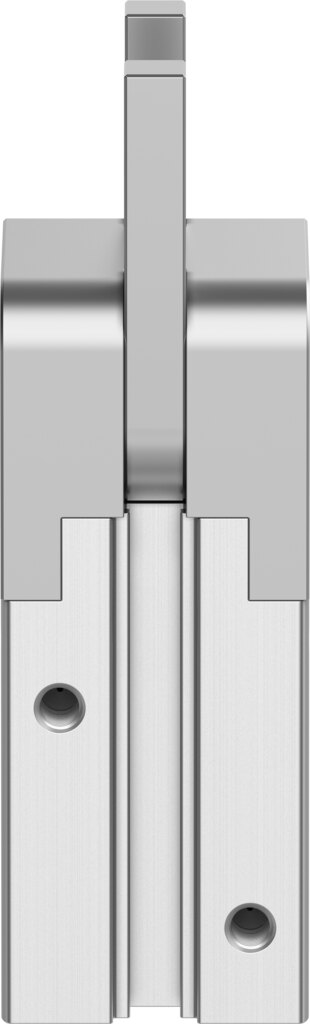

Pneumatic angle gripper size 25, opening angle 30° DHWC-25-A - Festo 8128136

Festo ✓ Original product Brand new

The angle gripper DHWC-25-A opens its jaws at an angle and delivers 265.1 Ncm total gripping torque when closing at 6 bar. Opening angle up to 30°, repetition accuracy 0.1 mm, double-acting. Runs on 1 to 8 bar via M5 port. Position detection with proximity switches.

Net
€338.43
excl. VAT
Item FES-8128136
Manufacturer no. DHWC-25-A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 25, 265.1 Ncm total gripping torque when closing at 6 bar: the DHWC-25-A is a Festo angle gripper. The jaws open at an angle. Version DHWC-25-A: double-acting.

Benefits

  • 265.1 Ncm total gripping torque when closing at 6 bar
  • Repetition accuracy 0.1 mm, replacement accuracy 0.2 mm
  • Opening angle up to 30°, the jaws clear the working area
  • Closing time from 50 ms, opening time from 38 ms at 6 bar, operating frequency 2 Hz
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHWC-25-A are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHWC-25-A is a suitable choice. Shipping weight 0.38 kg.

Technical data

Size25
Max. replacement accuracy0.2 mm
Max. opening angle30°
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.1 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationDouble-acting
Gripper functionAngular
Gripping force retentionNone
DesignPositively driven motion sequence
Position detectionVia proximity switch
Operating pressure1 to 8 bar
Max. operating frequency of gripper2 Hz
Min. opening time at 6 bar38 ms
Min. closing time at 6 bar50 ms
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping torque, opening at 6 bar322.6 Ncm
Total gripping torque, closing at 6 bar265.1 Ncm
Mass moment of inertia1083 kgcm²
Max. force on gripper jaw Fz static140 N
Max. torque at gripper Mx static2.2 Nm
Max. torque at gripper My static2.2 Nm
Max. torque at gripper Mz static2.2 Nm
Product weight362 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM5
Note on materialsRoHS compliant
Cover cap materialWrought aluminium alloy, anodised
Housing materialAnodised wrought aluminium alloy
Gripper jaw materialHigh-alloy steel
Weight0.38 kg
ManufacturerFesto
Hersteller-NrDHWC-25-A
EAN4052568567880
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
MediumCompressed air
Functiondouble-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
