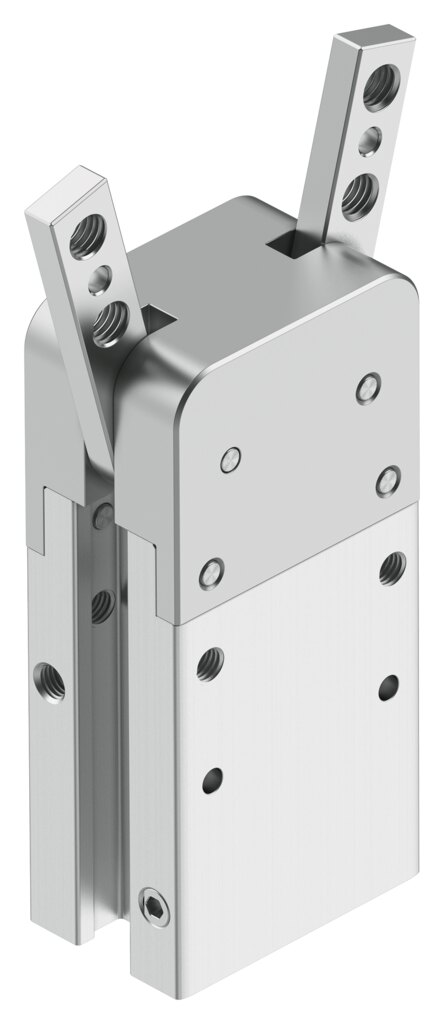

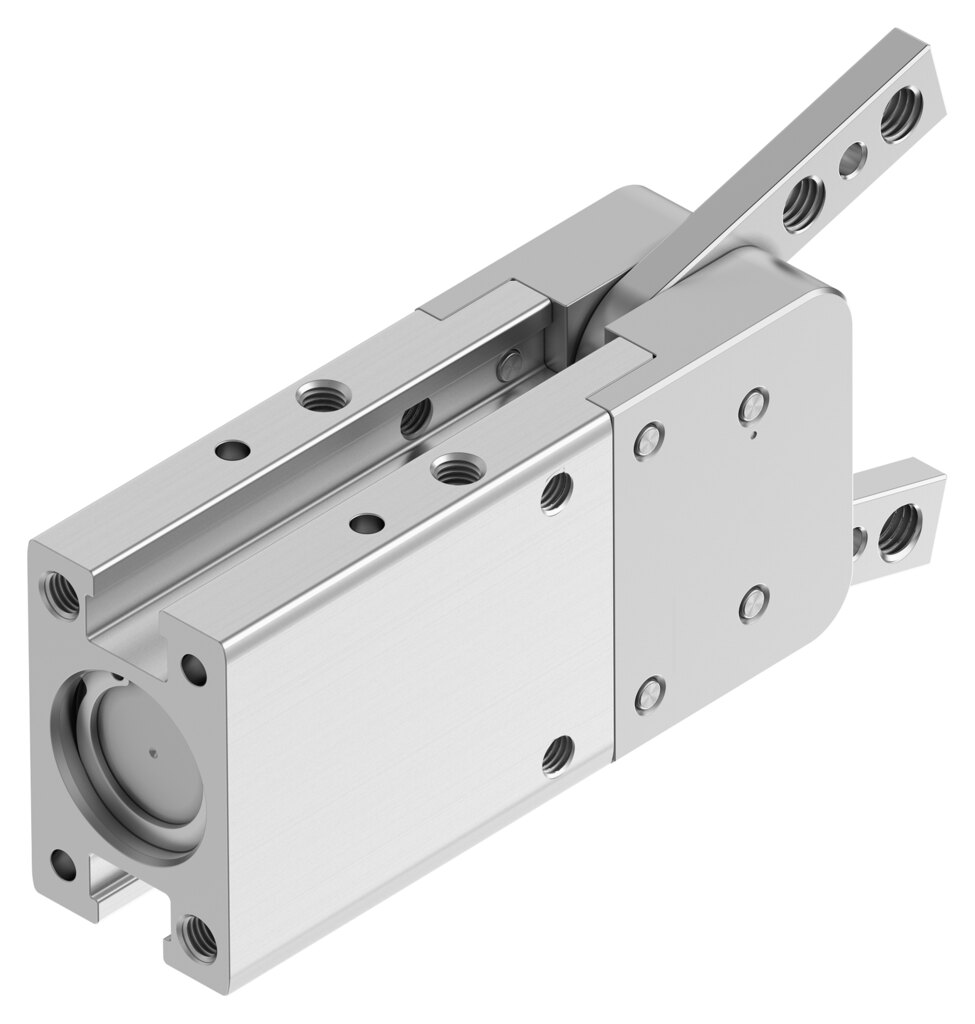

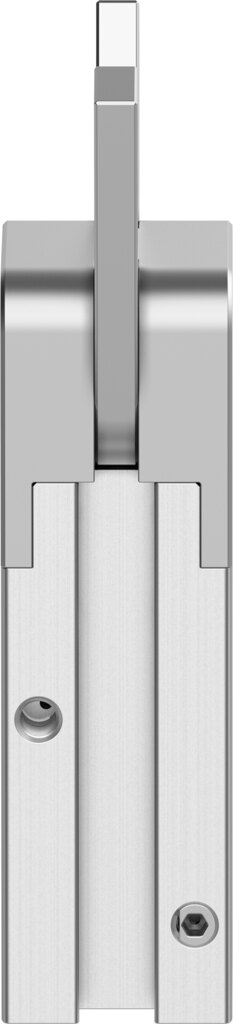

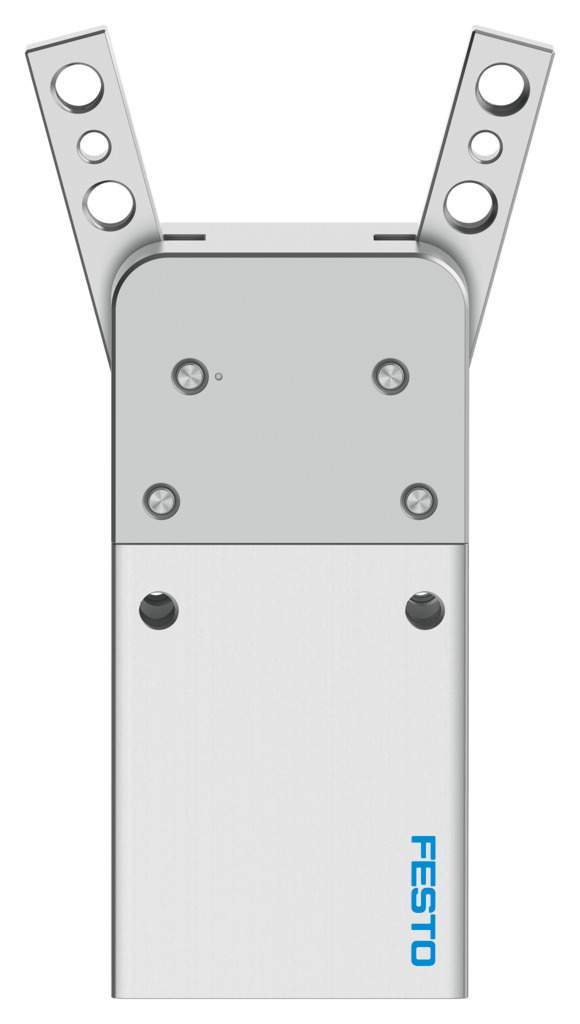

Pneumatic angle gripper size 10, opening angle 30° DHWC-10-A-S-NO - Festo 8133476
The angle gripper DHWC-10-A-S-NO opens its jaws at an angle and delivers 15.9 Ncm total gripping torque when closing at 6 bar. Opening angle up to 30°, repetition accuracy 0.1 mm, single-acting, normally open. Runs on 2 to 8 bar via M3 port. Gripping force retention when opening for secure holding.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Size 10, 15.9 Ncm total gripping torque when closing at 6 bar: the DHWC-10-A-S-NO is a Festo angle gripper. The jaws open at an angle. Version DHWC-10-A-S-NO: single-acting, normally open.
Benefits
- 15.9 Ncm total gripping torque when closing at 6 bar
- Repetition accuracy 0.1 mm, replacement accuracy 0.2 mm
- Opening angle up to 30°, the jaws clear the working area
- Closing time from 12 ms, opening time from 6 ms at 6 bar, operating frequency 3 Hz
- Gripping force retention when opening
- Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C
Applications
Typical tasks for the DHWC-10-A-S-NO are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Position detection with proximity switches. The DHWC-10-A-S-NO is suitable for battery production with reduced Cu/Zn/Ni values (F1a).
Technical data
| Size | 10 |
|---|---|
| Max. replacement accuracy | 0.2 mm |
| Max. opening angle | 30° |
| Rotational symmetry | 0.2 mm |
| Repetition accuracy, gripper | 0.1 mm |
| Number of gripper jaws | 2 |
| Drive system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Single-acting, normally open |
| Gripper function | Angular |
| Gripping force retention | During opening |
| Design | Positively driven motion sequence |
| Position detection | Via proximity switch |
| Operating pressure | 2 to 8 bar |
| Max. operating frequency of gripper | 3 Hz |
| Min. opening time at 6 bar | 6 ms |
| Min. closing time at 6 bar | 12 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible, after that always operate lubricated |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 to 60 °C |
| Total gripping torque, closing at 6 bar | 15.9 Ncm |
| Mass moment of inertia | 0.039 kgcm² |
| Max. force on gripper jaw Fz static | 40 N |
| Max. torque at gripper Mx static | 0.4 Nm |
| Max. torque at gripper My static | 0.5 Nm |
| Max. torque at gripper Mz static | 0.5 Nm |
| Product weight | 53.5 g |
| Type of mounting | Direct mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin |
| Pneumatic connection | M3 |
| Note on materials | RoHS compliant |
| Cover cap material | Wrought aluminium alloy, anodised |
| Housing material | Anodised wrought aluminium alloy |
| Gripper jaw material | High-alloy steel |
| Manufacturer | Festo |
| Hersteller-Nr | DHWC-10-A-S-NO |
| EAN | 4052568567989 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M3 |
| Medium | Compressed air |
| Function | single-acting |
| Actuation type | pneumatic |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
