Rotary indexing table, size 65, 4 index positions, 2.1 Nm, anticlockwise DHTG-65-4-A-L - Festo 8213366

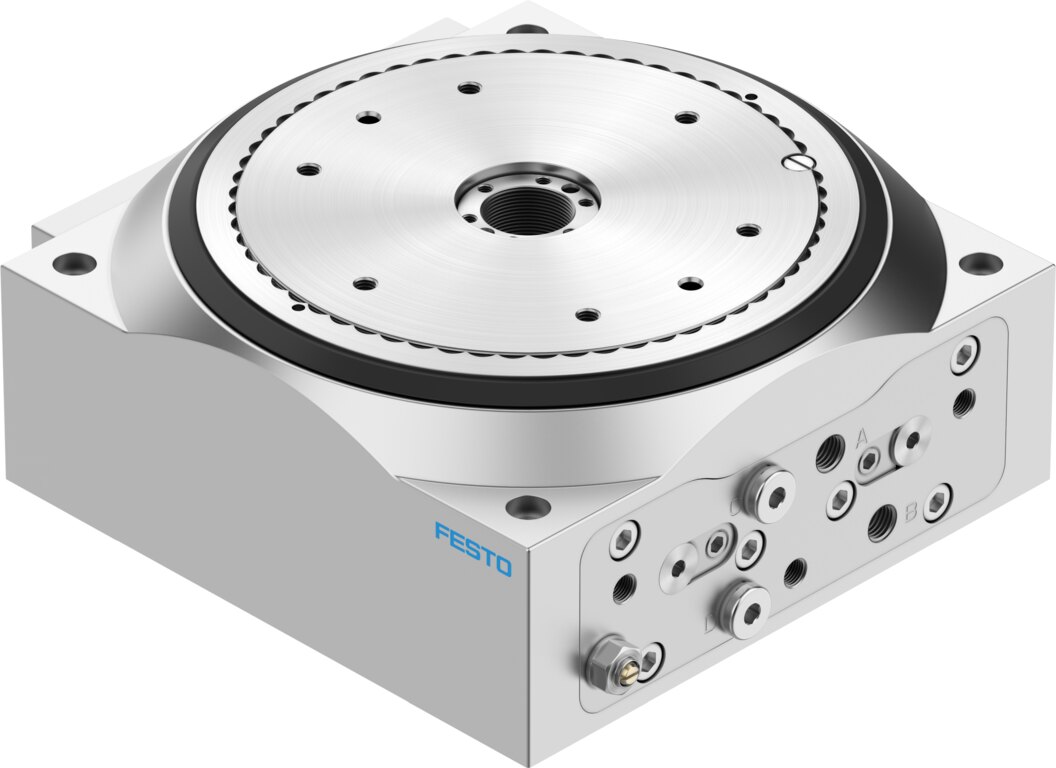

The Festo rotary indexing table DHTG-65-4-A-L turns its plate in 4 steps of 90° each and applies 2.1 Nm at 6 bar. A rack and pinion drive with gear rim coupling performs the motion in a positively driven sequence.

Benefits

• Theoretical torque of 2.1 Nm at 6 bar
• 4 index positions: the plate indexes in steps of 90°
• Static load capacity of 1000 N axial and 2000 N radial
• Axial runout 0.02 mm, radial runout 0.02 mm, repetition accuracy 0.03°
• Operating pressure 3 to 8 bar
• End positions cushioned by adjustable shock absorbers with hard characteristic

Applications

Workpiece holders are mounted on the plate of the DHTG-65-4-A-L and indexed station by station by the drive, for example for loading, screwing or marking. Centring sleeves locate the size 65 table on the machine frame.
