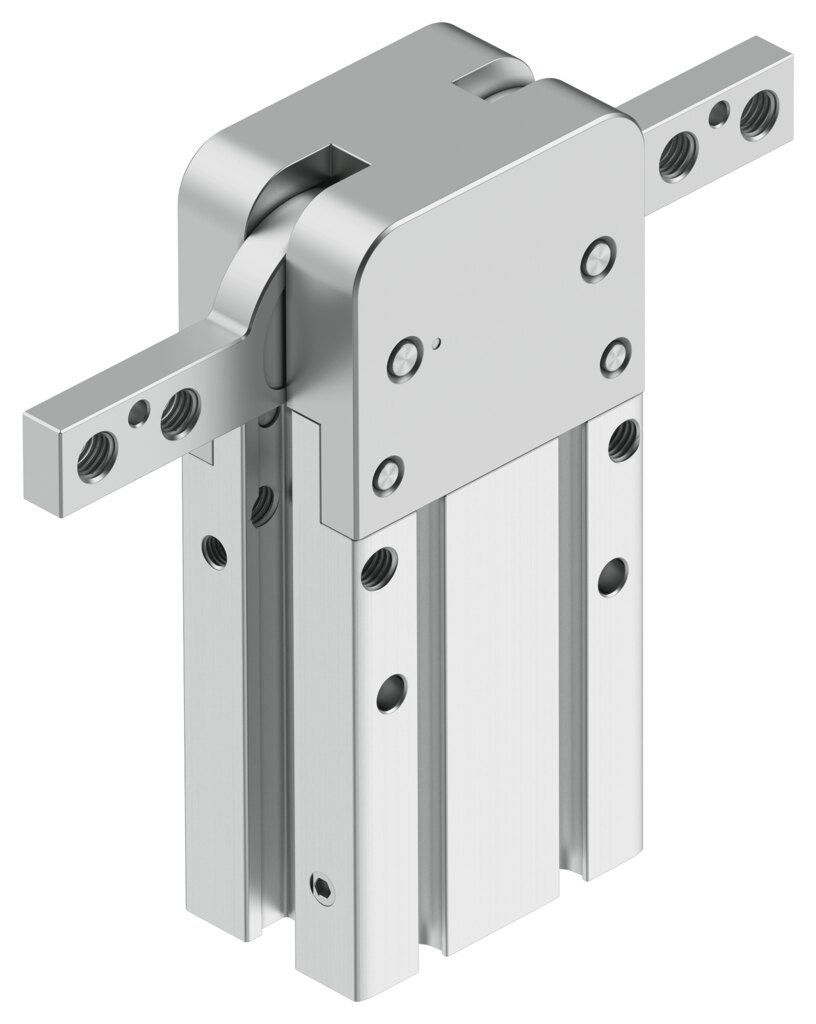

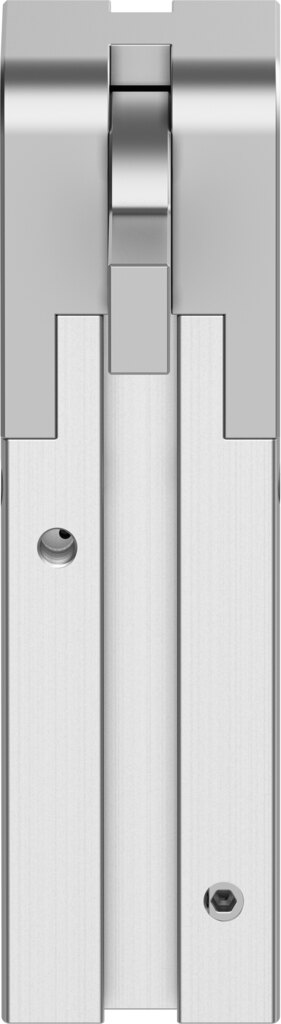

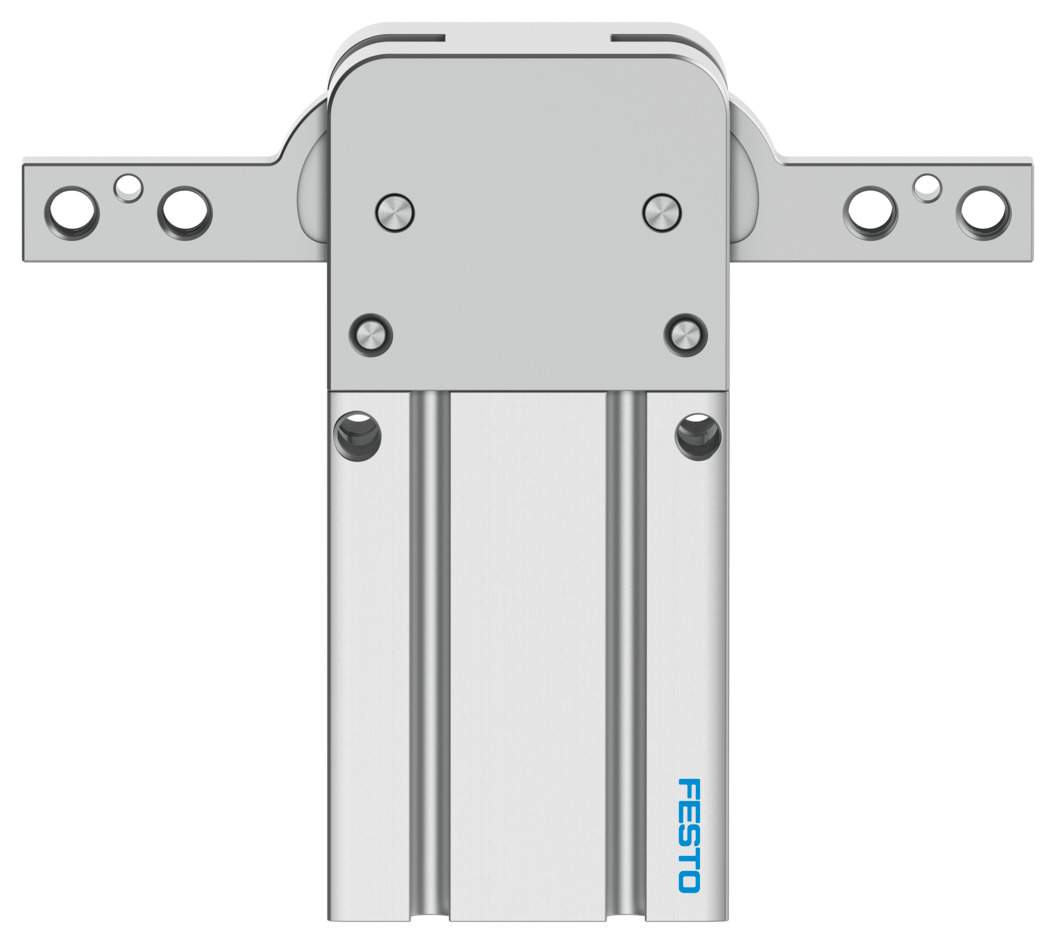

Pneumatic radial gripper size 16, opening angle 180° DHRC-16-A-S-NO - Festo 8128721

Festo ✓ Original product Brand new

The radial gripper DHRC-16-A-S-NO swings its jaws wide open and delivers 50.3 Ncm total gripping torque when closing at 6 bar. Opening angle up to 180°, repetition accuracy 0.1 mm, single-acting, normally open. Runs on 2 to 8 bar via M3 port. Gripping force retention when opening for secure holding.

Net
€433.49
excl. VAT
Item FES-8128721
Manufacturer no. DHRC-16-A-S-NO
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 16, 50.3 Ncm total gripping torque when closing at 6 bar: the DHRC-16-A-S-NO is a Festo radial gripper. The jaws open on a circular path. Version DHRC-16-A-S-NO: single-acting, normally open.

Benefits

  • 50.3 Ncm total gripping torque when closing at 6 bar
  • Repetition accuracy 0.1 mm, replacement accuracy 0.2 mm
  • Opening angle up to 180°, the jaws clear the working area
  • Closing time from 21 ms, opening time from 42 ms at 6 bar, operating frequency 2 Hz
  • Gripping force retention when opening
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHRC-16-A-S-NO are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Position detection with proximity switches. The DHRC-16-A-S-NO is suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

Size16
Max. replacement accuracy0.2 mm
Max. opening angle180°
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.1 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationSingle-acting, normally open
Gripper functionRadial
Gripping force retentionDuring opening
DesignPositively driven motion sequence
Position detectionVia proximity switch
Operating pressure2 to 8 bar
Max. operating frequency of gripper2 Hz
Min. opening time at 6 bar42 ms
Min. closing time at 6 bar21 ms
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping torque, closing at 6 bar50.3 Ncm
Mass moment of inertia0.134 kgcm²
Max. force on gripper jaw Fz static60 N
Max. torque at gripper Mx static2 Nm
Max. torque at gripper My static1 Nm
Max. torque at gripper Mz static2 Nm
Product weight112.5 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM3
Note on materialsRoHS compliant
Cover cap materialWrought aluminium alloy, anodised
Housing materialAnodised wrought aluminium alloy
Gripper jaw materialHigh-alloy steel
ManufacturerFesto
Hersteller-NrDHRC-16-A-S-NO
EAN4052568567958
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
MediumCompressed air
Functionsingle-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
