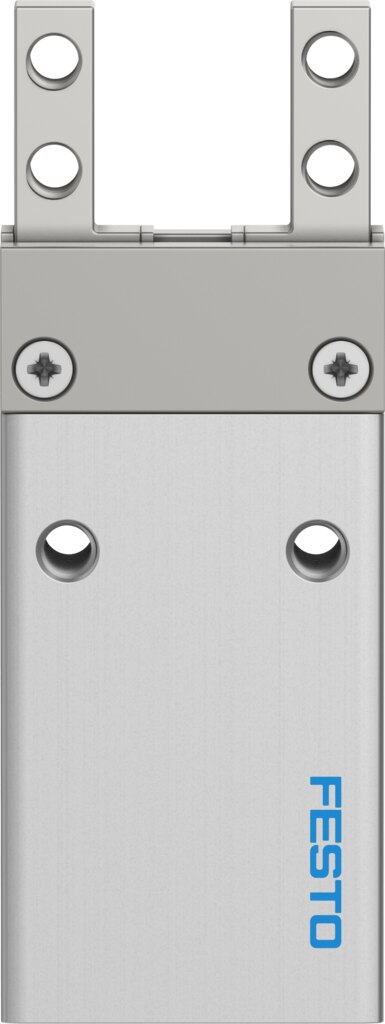

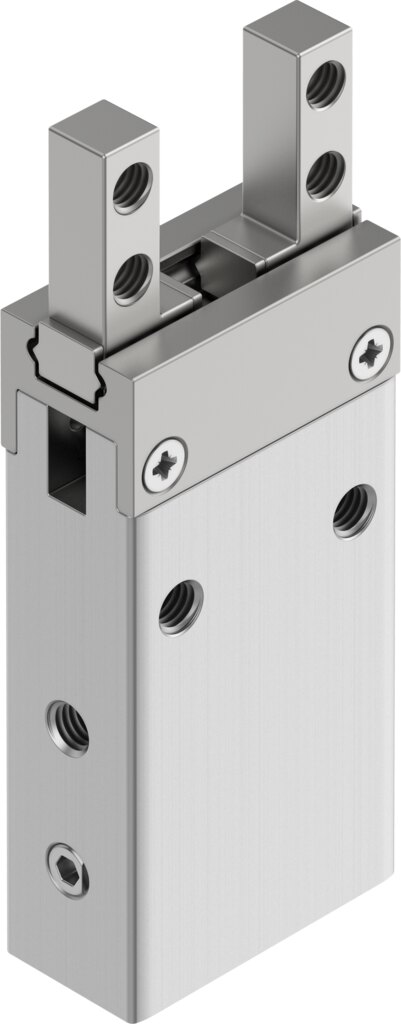

Pneumatic parallel gripper size 6, stroke per jaw 2 mm DHPC-6-A-NO-S-1 - Festo 8116742

Festo ✓ Original product Brand new

The parallel gripper DHPC-6-A-NO-S-1 holds prismatic and round parts and delivers 3.9 N gripping force per jaw when closing at 6 bar. 2 mm stroke per jaw, repetition accuracy 0.02 mm, single-acting, normally open, ball guide. Runs on 3.5 to 8 bar via M3 port.

Net
€231.53
excl. VAT
Item FES-8116742
Manufacturer no. DHPC-6-A-NO-S-1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 6, 3.9 N gripping force per jaw when closing at 6 bar: the DHPC-6-A-NO-S-1 is a Festo parallel gripper. Both jaws move parallel towards each other. Version DHPC-6-A-NO-S-1: single-acting, normally open, ball guide, side finger mounting.

Benefits

  • 3.9 N gripping force per jaw when closing at 6 bar, total gripping force 7.8 N
  • Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
  • 2 mm stroke per jaw, with max. 6 g per external gripper finger
  • Closing time from 6 ms, opening time from 8 ms at 6 bar, operating frequency 3 Hz
  • Gripping force retention when opening
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPC-6-A-NO-S-1 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 6 g. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHPC-6-A-NO-S-1 is a suitable choice.

Technical data

Size6
Stroke per gripper jaw2 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0°
Max. gripper jaw backlash Sz0 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.02 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationSingle-acting, normally open
Gripper functionParallel
Gripping force retentionDuring opening
DesignLever, Side mounting method for gripper fingers, Positively driven motion sequence
GuideBall guide
Position detectionVia proximity switch
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Operating pressure3.5 to 8 bar
Max. operating frequency of gripper3 Hz
Min. opening time at 6 bar8 ms
Min. closing time at 6 bar6 ms
Max. mass per external gripper finger6 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping force, closing at 6 bar7.8 N
Gripping force per gripper jaw, closing at 6 bar3.9 N
Mass moment of inertia0.012 kgcm²
Max. force on gripper jaw Fz static22 N
Max. torque at gripper Mx static0.11 Nm
Max. torque at gripper My static0.24 Nm
Max. torque at gripper Mz static0.11 Nm
Product weight27 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread
Pneumatic connectionM3
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialHigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrDHPC-6-A-NO-S-1
EAN4052568553968
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
MediumCompressed air
Functionsingle-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
