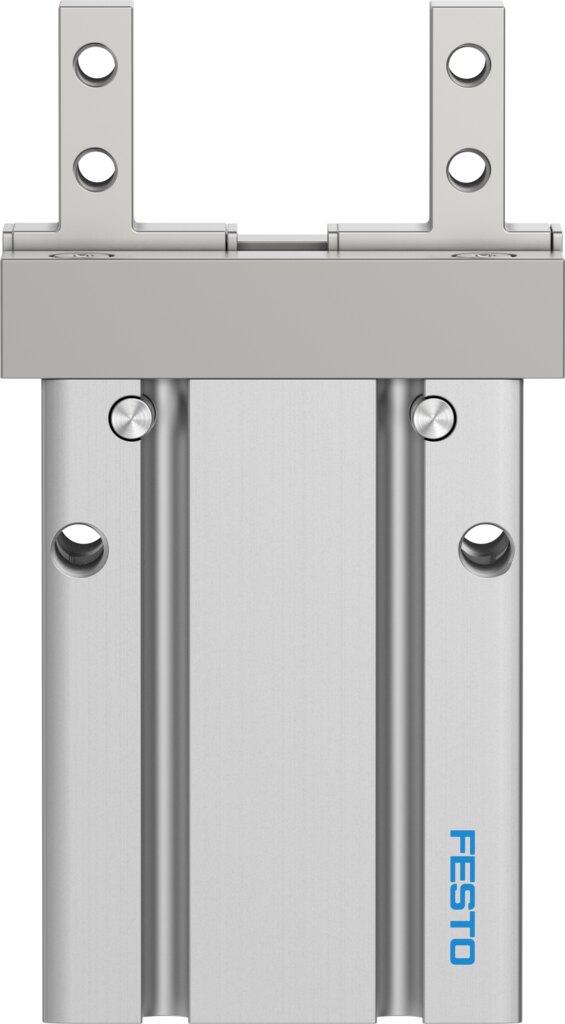

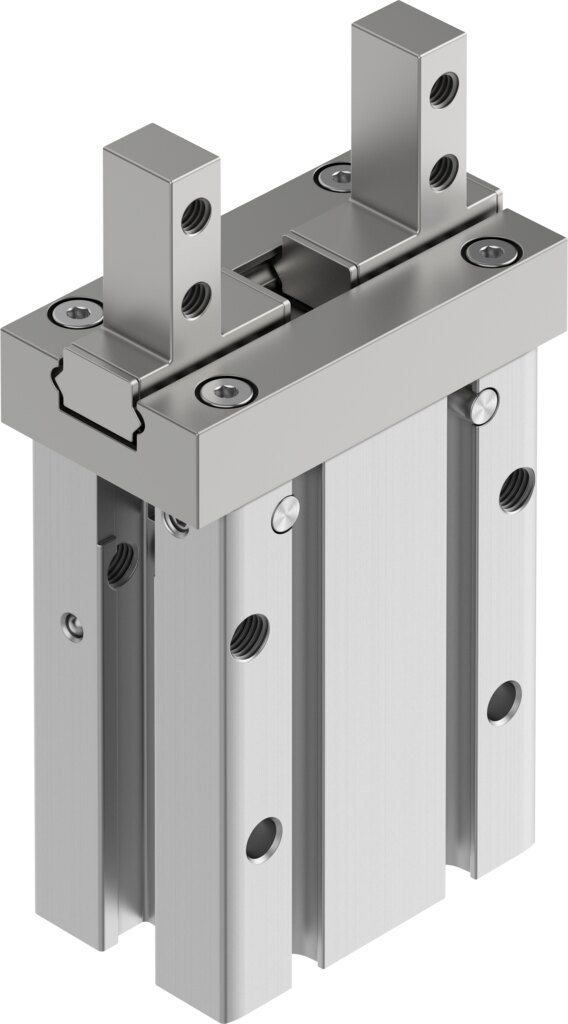

Pneumatic parallel gripper size 16, stroke per jaw 3 mm DHPC-16-A-B-1 - Festo 8116789

Festo ✓ Original product Brand new

With 53.9 N gripping force per jaw when closing at 6 bar, the parallel gripper DHPC-16-A-B-1 holds prismatic and round parts. 3 mm stroke per jaw, repetition accuracy 0.02 mm, double-acting, ball guide. Runs on 1 to 8 bar via M3 port. Position detection with proximity switches.

Net
€246.84
excl. VAT
Item FES-8116789
Manufacturer no. DHPC-16-A-B-1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 16, 53.9 N gripping force per jaw when closing at 6 bar: the DHPC-16-A-B-1 is a Festo parallel gripper. Both jaws move parallel towards each other. Version DHPC-16-A-B-1: double-acting, ball guide, side finger mounting.

Benefits

  • 53.9 N gripping force per jaw when closing at 6 bar, total gripping force 107.8 N
  • Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
  • 3 mm stroke per jaw, with max. 50 g per external gripper finger
  • Closing time from 31 ms, opening time from 29 ms at 6 bar, operating frequency 3 Hz
  • Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C

Applications

Typical tasks for the DHPC-16-A-B-1 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 50 g. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHPC-16-A-B-1 is a suitable choice. Shipping weight 0.12 kg.

Technical data

Size16
Stroke per gripper jaw3 mm
Max. replacement accuracy0.2 mm
Max. angular gripper jaw backlash ax, ay0°
Max. gripper jaw backlash Sz0 mm
Rotational symmetry0.2 mm
Repetition accuracy, gripper0.02 mm
Number of gripper jaws2
Drive systemPneumatic
Mounting positionAny
Mode of operationDouble-acting
Gripper functionParallel
Gripping force retentionNone
DesignLever, Side mounting method for gripper fingers, Positively driven motion sequence
GuideBall guide
Position detectionVia proximity switch
VariantsVariant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils)
Operating pressure1 to 8 bar
Max. operating frequency of gripper3 Hz
Min. opening time at 6 bar29 ms
Min. closing time at 6 bar31 ms
Max. mass per external gripper finger50 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible, after that always operate lubricated
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Total gripping force, opening at 6 bar125.4 N
Total gripping force, closing at 6 bar107.8 N
Gripping force per gripper jaw, opening at 6 bar62.7 N
Gripping force per gripper jaw, closing at 6 bar53.9 N
Mass moment of inertia0.148 kgcm²
Max. force on gripper jaw Fz static84 N
Max. torque at gripper Mx static0.71 Nm
Max. torque at gripper My static0.94 Nm
Max. torque at gripper Mz static0.71 Nm
Product weight111 g
Type of mountingDirect mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin
Pneumatic connectionM3
Note on materialsRoHS compliant
Housing materialAnodised aluminium
Gripper jaw materialHigh-alloy stainless steel
Weight0.12 kg
ManufacturerFesto
Hersteller-NrDHPC-16-A-B-1
EAN4052568554415
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM3
MediumCompressed air
Functiondouble-acting
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
