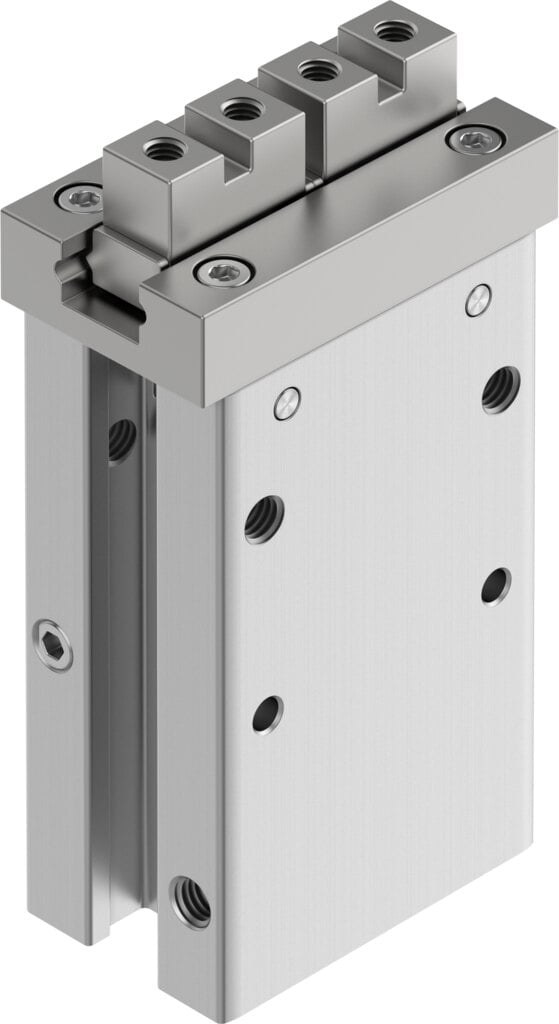

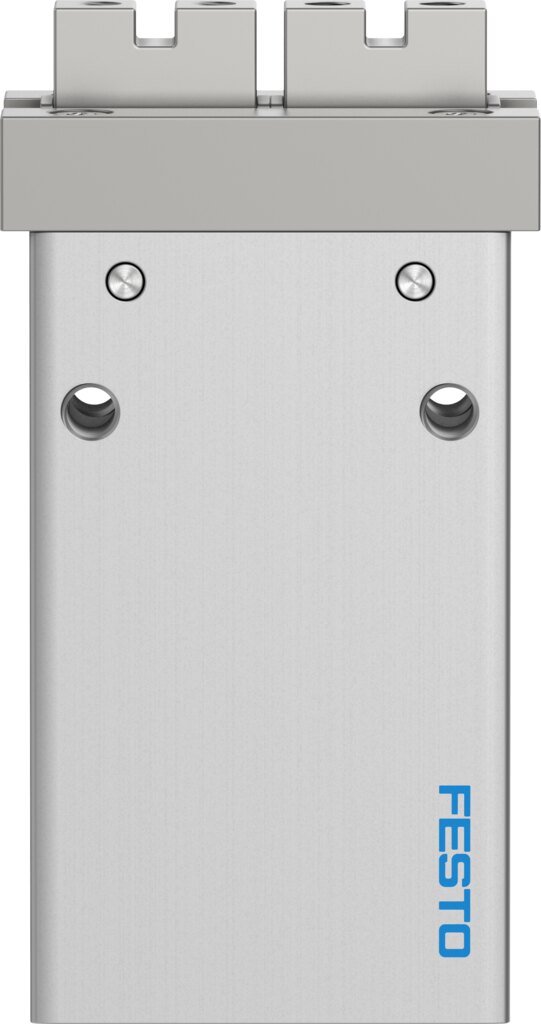

Pneumatic parallel gripper size 10, stroke per jaw 2 mm DHPC-10-A-NC-S-2 - Festo 8116767
With 19.6 N gripping force per jaw when opening at 6 bar, the parallel gripper DHPC-10-A-NC-S-2 holds prismatic and round parts. 2 mm stroke per jaw, repetition accuracy 0.02 mm, single-acting, normally closed, ball guide. Runs on 3.5 to 8 bar via M3 port. Position detection with proximity switches.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Size 10, 19.6 N gripping force per jaw when opening at 6 bar: the DHPC-10-A-NC-S-2 is a Festo parallel gripper. Both jaws move parallel towards each other. Version DHPC-10-A-NC-S-2: single-acting, normally closed, ball guide, flat finger mounting.
Benefits
- 19.6 N gripping force per jaw when opening at 6 bar
- Repetition accuracy 0.02 mm, replacement accuracy 0.2 mm
- 2 mm stroke per jaw, with max. 25 g per external gripper finger
- Closing time from 26 ms, opening time from 12 ms at 6 bar, operating frequency 3 Hz
- Gripping force retention when closing
- Corrosion resistance class CRC 0, ambient temperature -10 to 60 °C
Applications
Typical tasks for the DHPC-10-A-NC-S-2 are assembly, feeding and pick-and-place in automated systems, at -10 to 60 °C ambient temperature. Gripper fingers are mounted on the jaws, each external finger may weigh up to 25 g. Position detection with proximity switches. For battery production with reduced Cu/Zn/Ni values (F1a), the DHPC-10-A-NC-S-2 is a suitable choice.
Technical data
| Size | 10 |
|---|---|
| Stroke per gripper jaw | 2 mm |
| Max. replacement accuracy | 0.2 mm |
| Max. angular gripper jaw backlash ax, ay | 0° |
| Max. gripper jaw backlash Sz | 0 mm |
| Rotational symmetry | 0.2 mm |
| Repetition accuracy, gripper | 0.02 mm |
| Number of gripper jaws | 2 |
| Drive system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Single-acting, normally closed |
| Gripper function | Parallel |
| Gripping force retention | During closing |
| Design | Flat mounting method for gripper fingers, Lever, Positively driven motion sequence |
| Guide | Ball guide |
| Position detection | Via proximity switch |
| Variants | Variant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils) |
| Operating pressure | 3.5 to 8 bar |
| Max. operating frequency of gripper | 3 Hz |
| Min. opening time at 6 bar | 12 ms |
| Min. closing time at 6 bar | 26 ms |
| Max. mass per external gripper finger | 25 g |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible, after that always operate lubricated |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 to 60 °C |
| Total gripping force, opening at 6 bar | 39.2 N |
| Gripping force per gripper jaw, opening at 6 bar | 19.6 N |
| Mass moment of inertia | 0.045 kgcm² |
| Max. force on gripper jaw Fz static | 33 N |
| Max. torque at gripper Mx static | 0.28 Nm |
| Max. torque at gripper My static | 0.18 Nm |
| Max. torque at gripper Mz static | 0.28 Nm |
| Product weight | 57 g |
| Type of mounting | Direct mounting via through-hole, Direct mounting via thread, Via through-hole and dowel pin, Via female thread and dowel pin |
| Pneumatic connection | M3 |
| Note on materials | RoHS compliant |
| Housing material | Anodised aluminium |
| Gripper jaw material | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | DHPC-10-A-NC-S-2 |
| EAN | 4052568554217 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M3 |
| Medium | Compressed air |
| Function | single-acting |
| Actuation type | pneumatic |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
