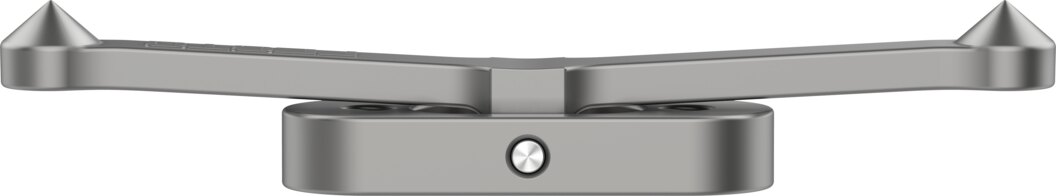

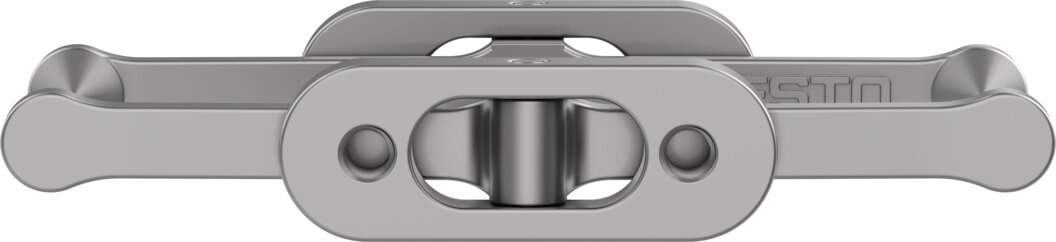

Gripper jaws for microwell plates stainless DHAS-GG-B18-16-A1 - Festo 8119108
The gripper jaws DHAS-GG-B18-16-A1 made of high-alloy stainless steel are designed for gripping microwell plates. Size 16 mm, corrosion resistance class CRC 4 for very high corrosion stress, gripper jaws made of high-alloy stainless steel, cylindrical pin made of spring steel.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The gripper jaws DHAS-GG-B18-16-A1 made of high-alloy stainless steel are designed for gripping microwell plates. Size 16 mm, product weight 24.4 g.
Benefits
- Size 16 mm
- Corrosion resistance class CRC 4 for very high corrosion stress
- Gripper jaws made of high-alloy stainless steel, cylindrical pin made of spring steel
- Vibration and shock tested with severity level 2 to EN 60068-2-6 and EN 60068-2-27
- Mounting with female thread M3
- Ambient temperature 0 to 40 °C
Applications
The DHAS-GG-B18-16-A1 are intended for laboratory automation with microwell plates. Corrosion resistance class CRC 4 stands for very high corrosion stress.
Technical data
| Order type | DHAS-GG-B18-16-A1 |
|---|---|
| Festo part number | 8119108 |
| Size | 16 mm |
| Mounting position | any |
| Design | for microwell plates |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 4 - very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 0 - 100% |
| Ambient temperature | 0 to 40 °C |
| Product weight | 24.4 g |
| Type of mounting | with female thread M3 |
| Note on materials | RoHS compliant |
| Material gripper jaws | high-alloy stainless steel |
| Material cylindrical dowel pin | spring steel |
| Customs tariff number | 84799070 |
| Weight | 0.035 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DHAS-GG-B18-16-A1 |
| EAN | 4052568466763 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Series | DHAS |
| Temperaturbereich | 0-40 °C |
| Temperature (max.) | 40 |
