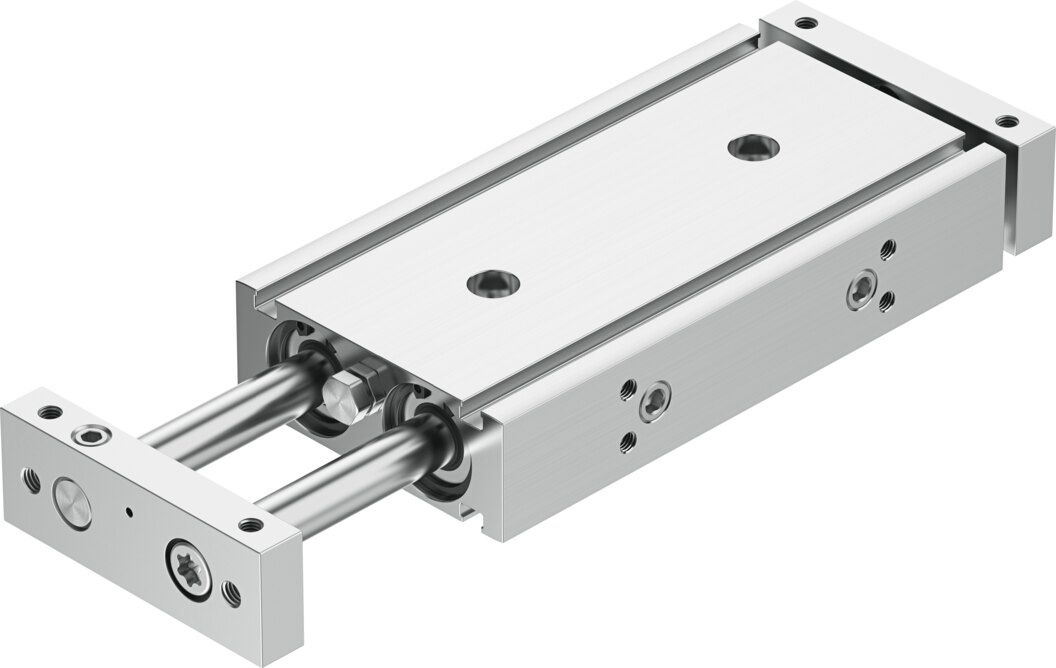

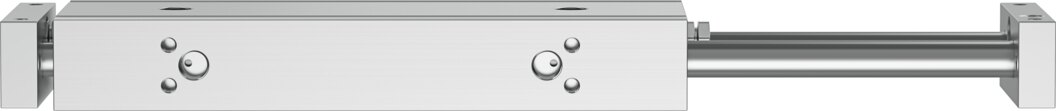

Twin cylinder with two yokes Ø 25 mm 100 mm stroke DGTZ-GF-25-100-J-T-P-A - Festo 8103463

25 mm piston, 100 mm stroke and 454 N advancing force at 6 bar: the DGTZ-GF-25-100-J-T-P-A twin cylinder combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 454 N advance and 454 N return at 6 bar (theoretical)
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.3 J
• Cleanroom and PWIS: class 5 to ISO 14644-1, PWIS-free to VDMA24364-Zone III
• Piston rod: high-alloy stainless steel

Applications

Typical uses of the DGTZ-GF-25-100-J-T-P-A are ejecting, separating and lifting on conveyor lines and in fixtures. Operating medium for the DGTZ-GF-25-100-J-T-P-A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -10 to 80 °C, any mounting position. Documented for this 100 mm stroke version: cleanroom class 5 to ISO 14644-1.
