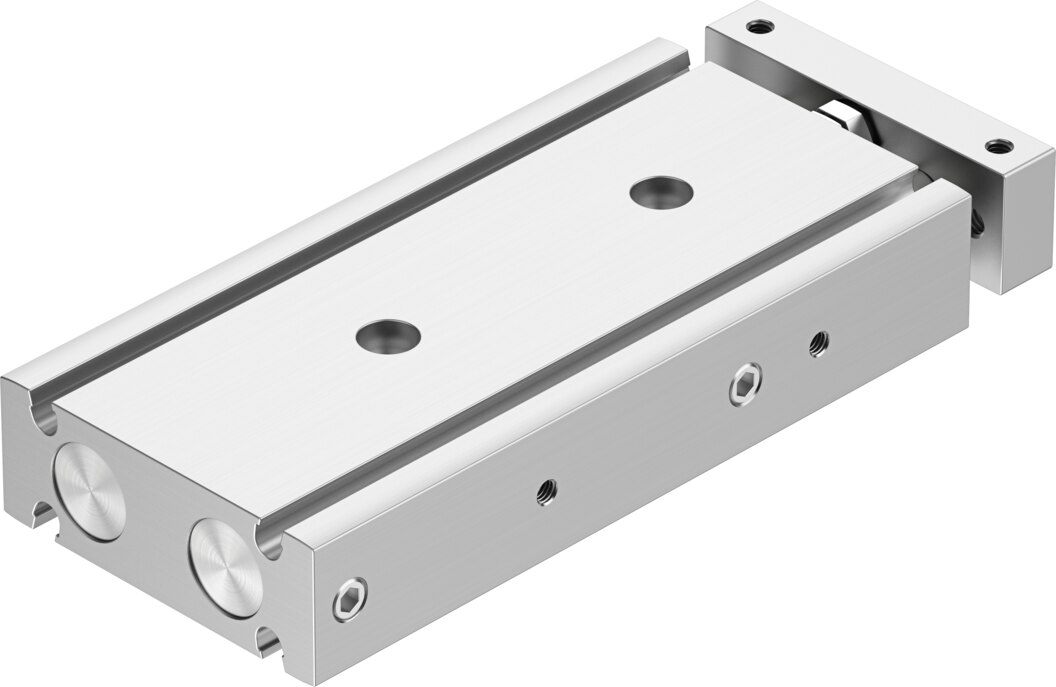

Twin cylinder with plain-bearing guide Ø 10 mm 50 mm stroke DGTZ-GF-10-50-P-A - Festo 8100558

10 mm piston, 50 mm stroke and 94 N advancing force at 6 bar: the DGTZ-GF-10-50-P-A twin cylinder combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 94 N advance and 60 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.08 J
• Cleanroom and PWIS: class 5 to ISO 14644-1, PWIS-free to VDMA24364-Zone III

Applications

The DGTZ-GF-10-50-P-A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DGTZ-GF-10-50-P-A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 80 °C ambient temperature and can be mounted in any position. Documented for this 50 mm stroke version: cleanroom class 5 to ISO 14644-1.
