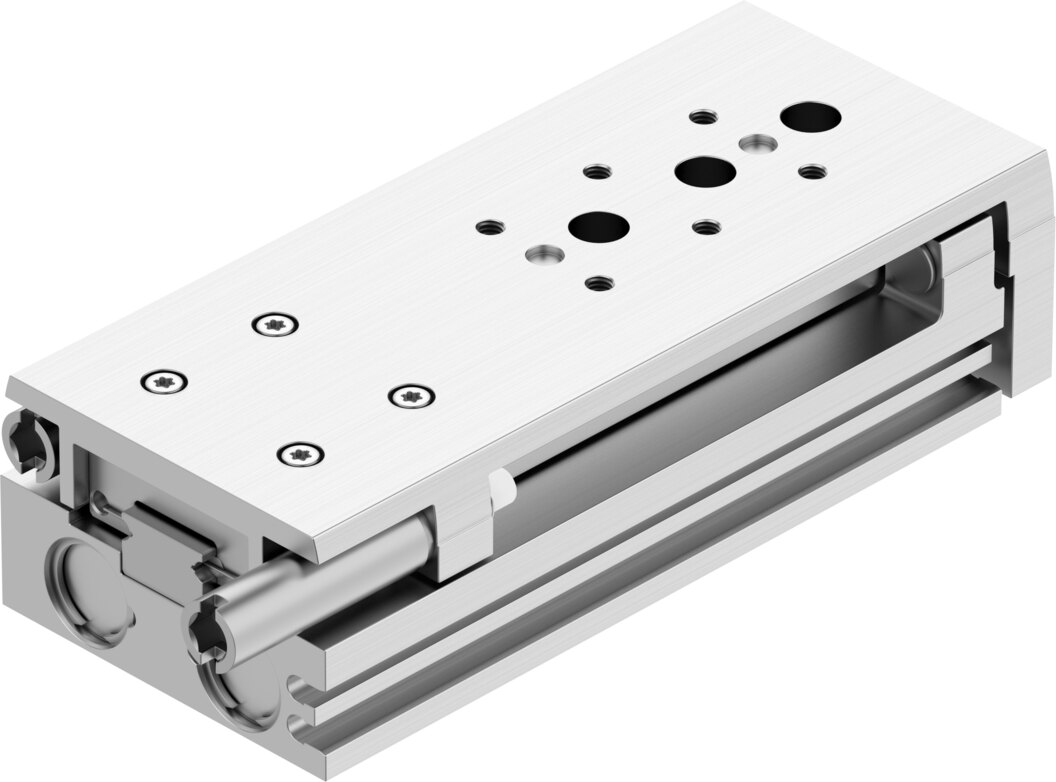

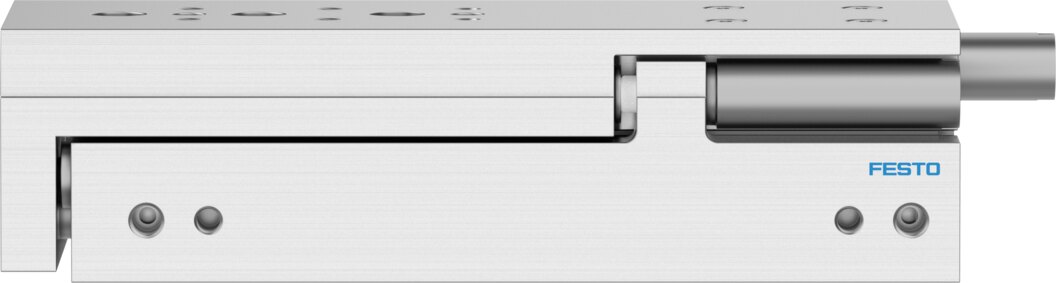

Double-acting mini slide piston Ø 12 mm stroke 80 mm DGST-12-80-Y12A - Festo 8085174
With a 80 mm stroke and 136 N theoretical force at 6 bar, the DGST-12-80-Y12A handles short, guided linear movements. The recirculating ball bearing guide takes transverse forces up to 600 N and torques up to 8.9 Nm. It meets cleanroom class 6 to ISO 14644-1.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
136 N on the advance stroke and 102 N on return at 6 bar, plus a 80 mm stroke: the Festo DGST-12-80-Y12A is a mini slide for handling axes in tight spaces.
Benefits
- Recirculating ball bearing guide for transverse forces up to 600 N and torques Mx 8.9 Nm, My 6.5 Nm, Mz 6.5 Nm
- Travel speed up to 0.8 m/s
- End position cushioning: external hydraulic cushioning, permissible impact energy 1.4 J
- Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Repetition accuracy ≤ 0.02 mm for reproducible end positions
- Theoretical force at 6 bar: 136 N advance, 102 N return
Applications
Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, compressed air is supplied via M5. End positions can be sensed with proximity switches.
Technical data
| Type | DGST-12-80-Y12A |
|---|---|
| Series | Festo DGST |
| Stroke | 80 mm |
| Piston diameter | 12 mm |
| Adjustable end position range, front | 16.7 mm |
| Adjustable end position range, rear | 15.2 mm |
| Mode of operation | Double-acting |
| Operating mode of drive unit | Yoke |
| Design | Yoke, piston rod, slide |
| Guide | Recirculating ball bearing guide |
| Cushioning | External hydraulic cushioning |
| Cushioning length | 5 mm |
| Impact energy in end positions | 1.4 J |
| Maximum speed | 0.8 m/s |
| Repetition accuracy | ≤ 0.02 mm |
| Position detection | Via proximity switch |
| Mounting position | Any |
| Operating pressure | 1 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then always required) |
| Ambient temperature | -10 to 60 °C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Maximum force Fy | 600 N |
| Maximum force Fz | 600 N |
| Maximum moment Mx | 8.9 Nm |
| Maximum moment My | 6.5 Nm |
| Maximum moment Mz | 6.5 Nm |
| Theoretical force at 6 bar, advance stroke | 136 N |
| Theoretical force at 6 bar, return stroke | 102 N |
| Moving mass | 376 g |
| Product weight | 808 g |
| Pneumatic connection | M5 |
| Type of mounting | With through-hole |
| Material housing | Wrought aluminium alloy |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material guide | POM, TPE-E, high-alloy steel |
| Material seals | HNBR |
| Note on materials | RoHS compliant |
| Festo part number | 8085174 |
| HS code | 84123100 |
| Weight | 0.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGST-12-80-Y12A |
| EAN | 4052568450625 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 12 |
| Stroke [mm] | 80 |
| Seal material | HNBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | double-acting |
| Bore (mm) | 12 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
