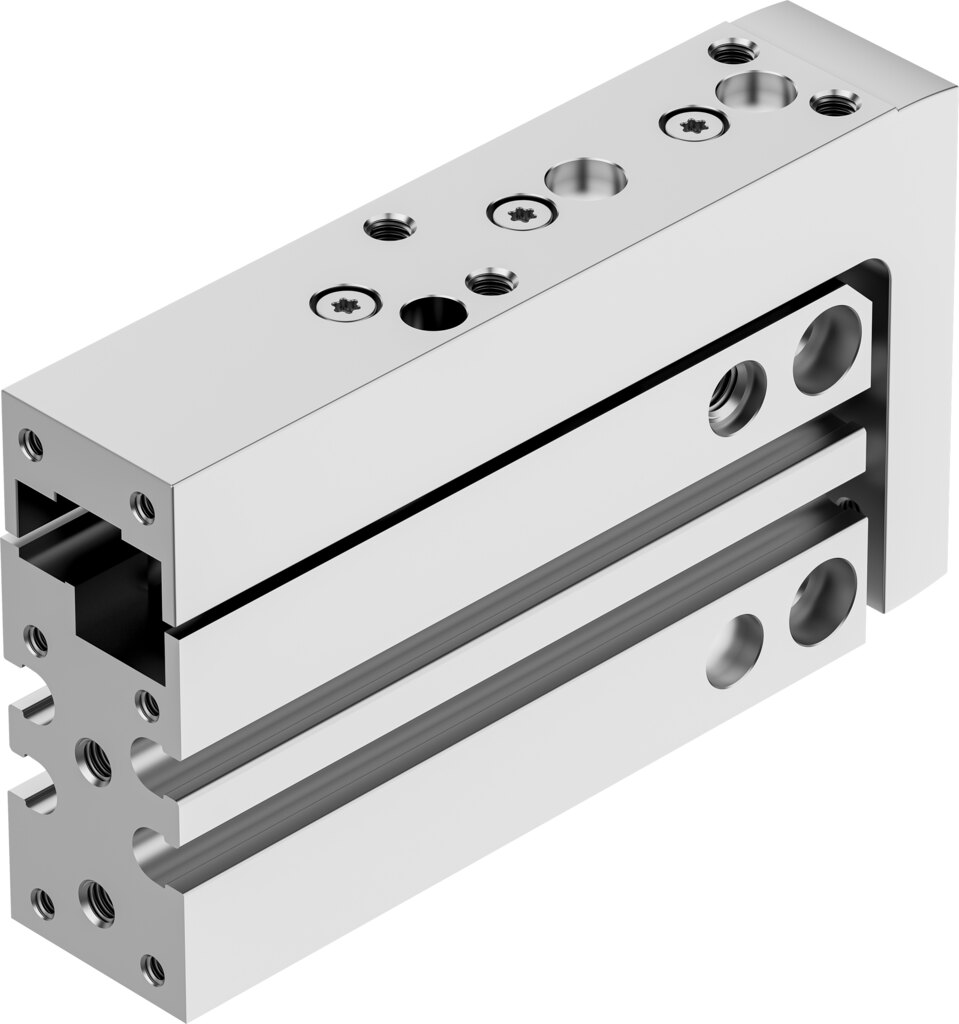

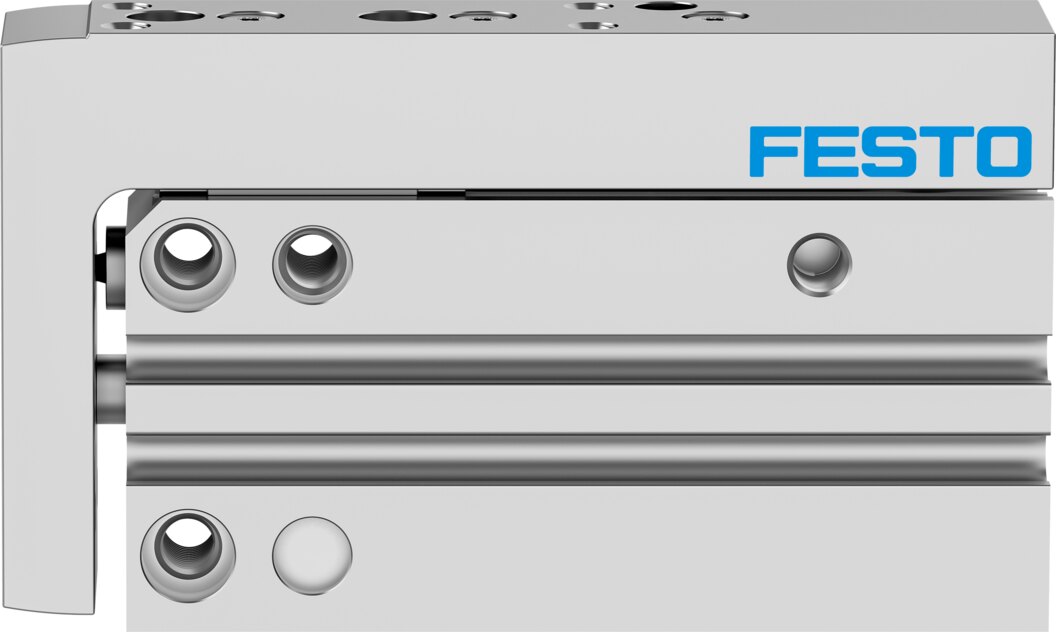

Double-acting mini slide piston Ø 6 mm stroke 30 mm DGSS-6-30-E1A - Festo 8164055

17 N on the advance stroke and 13 N on return at 6 bar, plus a 30 mm stroke: the Festo DGSS-6-30-E1A is a mini slide for handling axes in tight spaces.

Benefits

• Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
• Travel speed up to 0.5 m/s
• Theoretical force at 6 bar: 17 N advance, 13 N return
• Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Repetition accuracy ≤ 0.3 mm for reproducible end positions
• End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.01 J

Applications

As a compact linear axis, the DGSS-6-30-E1A works in feeding technology and small parts assembly. Compressed air to ISO 8573-1:2010 [7:4:4], 1.5 to 8 bar, port M3. End positions can be sensed with proximity switches.
