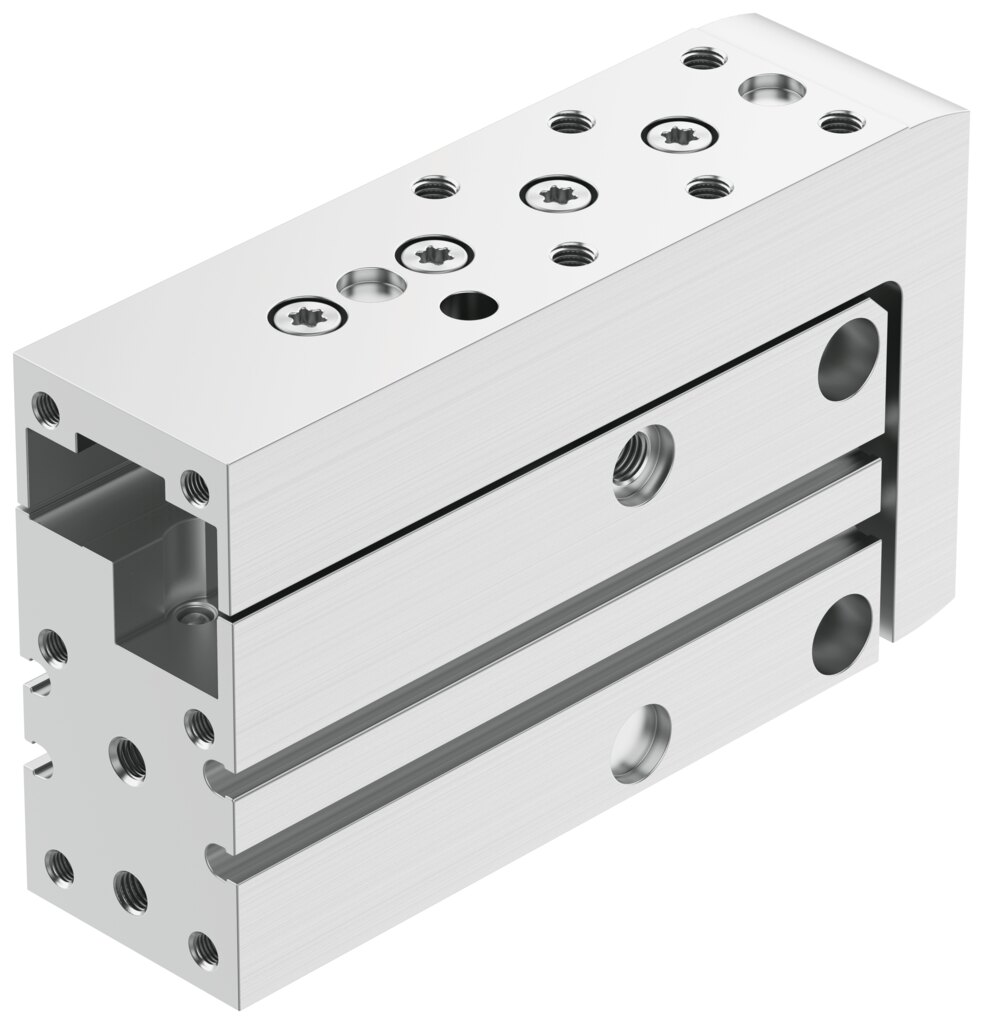

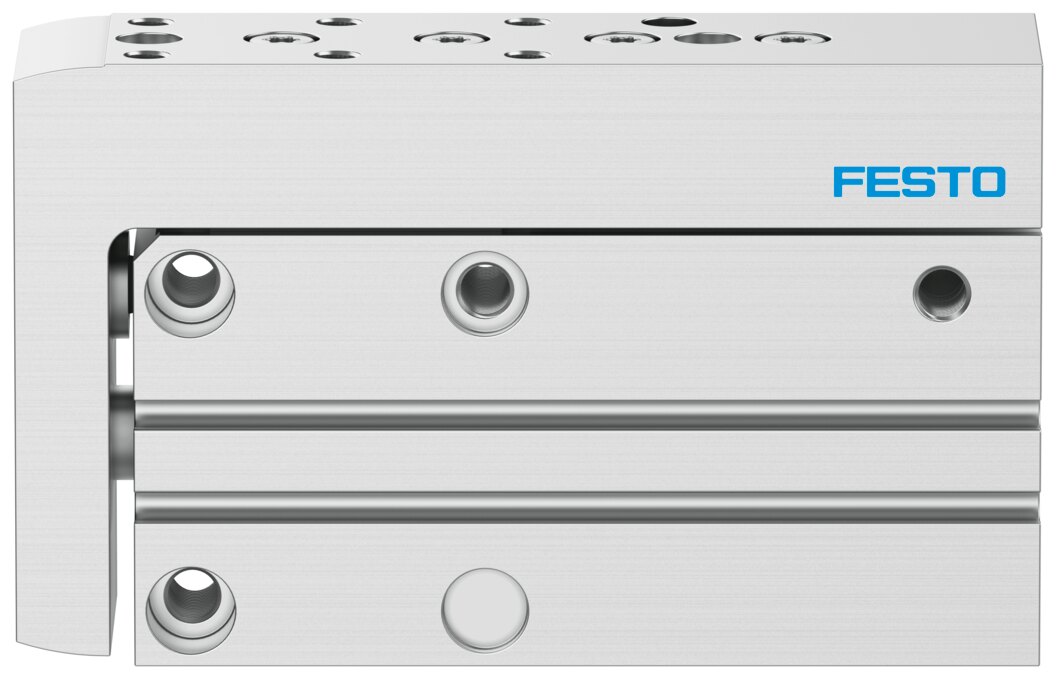

Double-acting mini slide piston Ø 20 mm stroke 40 mm DGSS-20-40-E1A - Festo 8164083
With a 40 mm stroke and 188 N theoretical force at 6 bar, the DGSS-20-40-E1A handles short, guided linear movements. Its recirculating ball bearing guide carries up to 1238 N transverse load. End position cushioning: elastomer cushioning at both ends.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where small loads have to be moved precisely along a guide, the mini slide DGSS-20-40-E1A is the right unit: 40 mm stroke, piston Ø 20 mm and 188 N advance force at 6 bar, combined with a recirculating ball bearing guide.
Benefits
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
- Repetition accuracy ≤ 0.3 mm for reproducible end positions
- Theoretical force at 6 bar: 188 N advance, 158 N return
- Recirculating ball bearing guide for transverse forces up to 1238 N and torques Mx 8 Nm, My 4 Nm, Mz 4 Nm
- Travel speed up to 0.5 m/s
Applications
Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, with female thread, compressed air is supplied via M5. End positions can be sensed with proximity switches.
Technical data
| Type | DGSS-20-40-E1A |
|---|---|
| Series | Festo DGSS |
| Size | 20 |
| Stroke | 40 mm |
| Piston diameter | 20 mm |
| Mode of operation | Double-acting |
| Design | Yoke, piston rod, slide |
| Guide | Recirculating ball bearing guide |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Cushioning length | 1 mm |
| Impact energy in end positions | 0.05 J |
| Maximum speed | 0.5 m/s |
| Repetition accuracy | ≤ 0.3 mm |
| Position detection | Via proximity switch |
| Mounting position | Any |
| Operating pressure | 1 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then always required) |
| Ambient temperature | -10 to 60 °C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Maximum force Fy | 1238 N |
| Maximum force Fz | 1238 N |
| Maximum moment Mx | 8 Nm |
| Maximum moment My | 4 Nm |
| Maximum moment Mz | 4 Nm |
| Theoretical force at 6 bar, advance stroke | 188 N |
| Theoretical force at 6 bar, return stroke | 158 N |
| Moving mass | 209 g |
| Product weight | 513 g |
| Pneumatic connection | M5 |
| Type of mounting | With through-hole, with female thread |
| Material housing | Wrought aluminium alloy |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material guide | NBR, PA, high-alloy steel |
| Material seals | NBR, PU |
| Note on materials | RoHS compliant |
| Festo part number | 8164083 |
| HS code | 84123100 |
| Weight | 0.55 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGSS-20-40-E1A |
| EAN | 4052568620387 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 20 |
| Stroke [mm] | 40 |
| Seal material | NBR, PU |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | double-acting |
| Bore (mm) | 20 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
