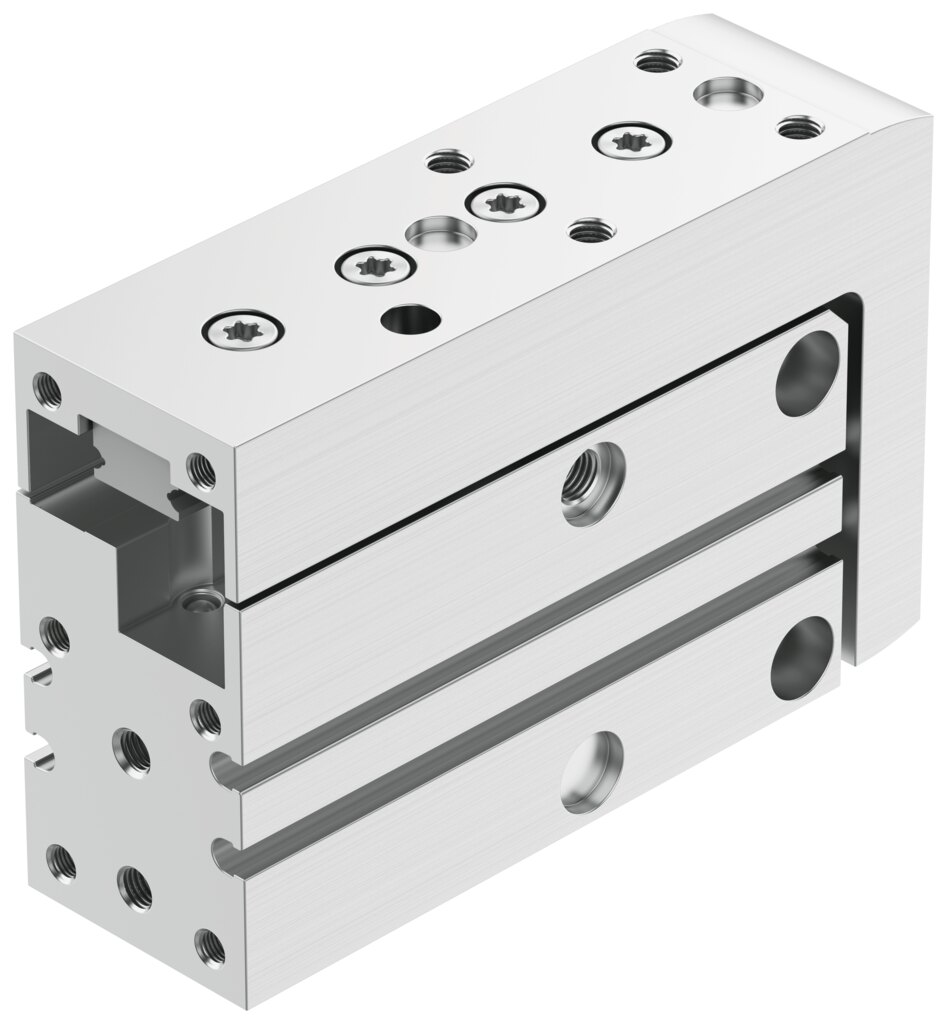

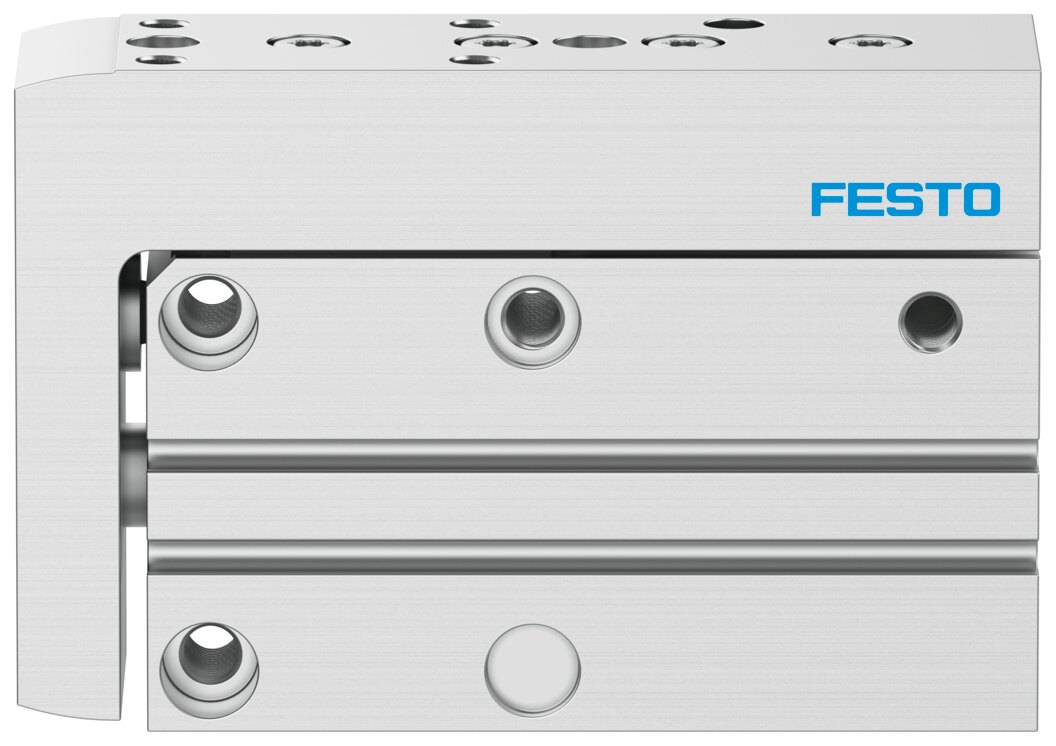

Double-acting mini slide piston Ø 20 mm stroke 30 mm DGSS-20-30-E1A - Festo 8164082

Festo ✓ Original product Brand new

With a 30 mm stroke and 188 N theoretical force at 6 bar, the DGSS-20-30-E1A handles short, guided linear movements. Its recirculating ball bearing guide carries up to 1363 N transverse load. End position cushioning: elastomer cushioning at both ends.

Net
€261.59
excl. VAT
Item FES-8164082
Manufacturer no. DGSS-20-30-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The mini slide DGSS-20-30-E1A makes a separate guide on the cylinder unnecessary. The recirculating ball bearing guide is built in, the stroke is 30 mm with a 20 mm piston.

Benefits

  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Travel speed up to 0.5 m/s
  • Theoretical force at 6 bar: 188 N advance, 158 N return
  • End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.05 J
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Repetition accuracy ≤ 0.3 mm for reproducible end positions

Applications

The DGSS-20-30-E1A works as a lifting or transverse axis in handling systems, also in combination with grippers. Port M5, operation at 1 to 8 bar and -10 to 60 °C ambient temperature. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-20-30-E1A
SeriesFesto DGSS
Size20
Stroke30 mm
Piston diameter20 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length1 mm
Impact energy in end positions0.05 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy1363 N
Maximum force Fz1363 N
Maximum moment Mx8.9 Nm
Maximum moment My4.4 Nm
Maximum moment Mz4.4 Nm
Theoretical force at 6 bar, advance stroke188 N
Theoretical force at 6 bar, return stroke158 N
Moving mass199 g
Product weight477 g
Pneumatic connectionM5
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164082
HS code84123100
Weight0.5 kg
ManufacturerFesto
Hersteller-NrDGSS-20-30-E1A
EAN4052568620370
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Piston Ø [mm]20
Stroke [mm]30
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)20
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
