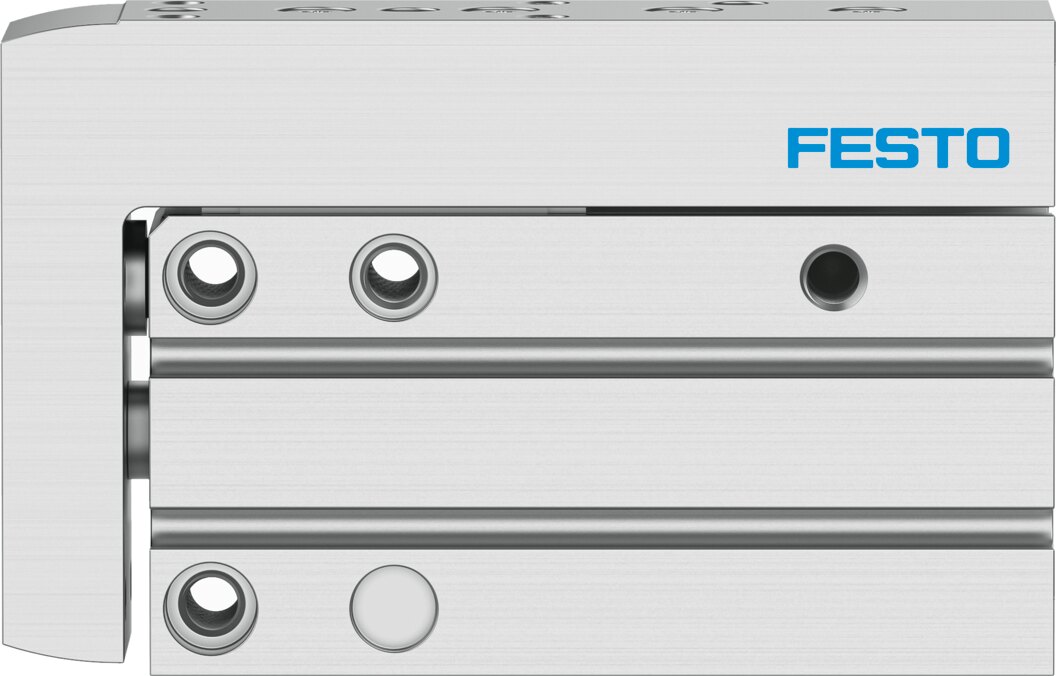

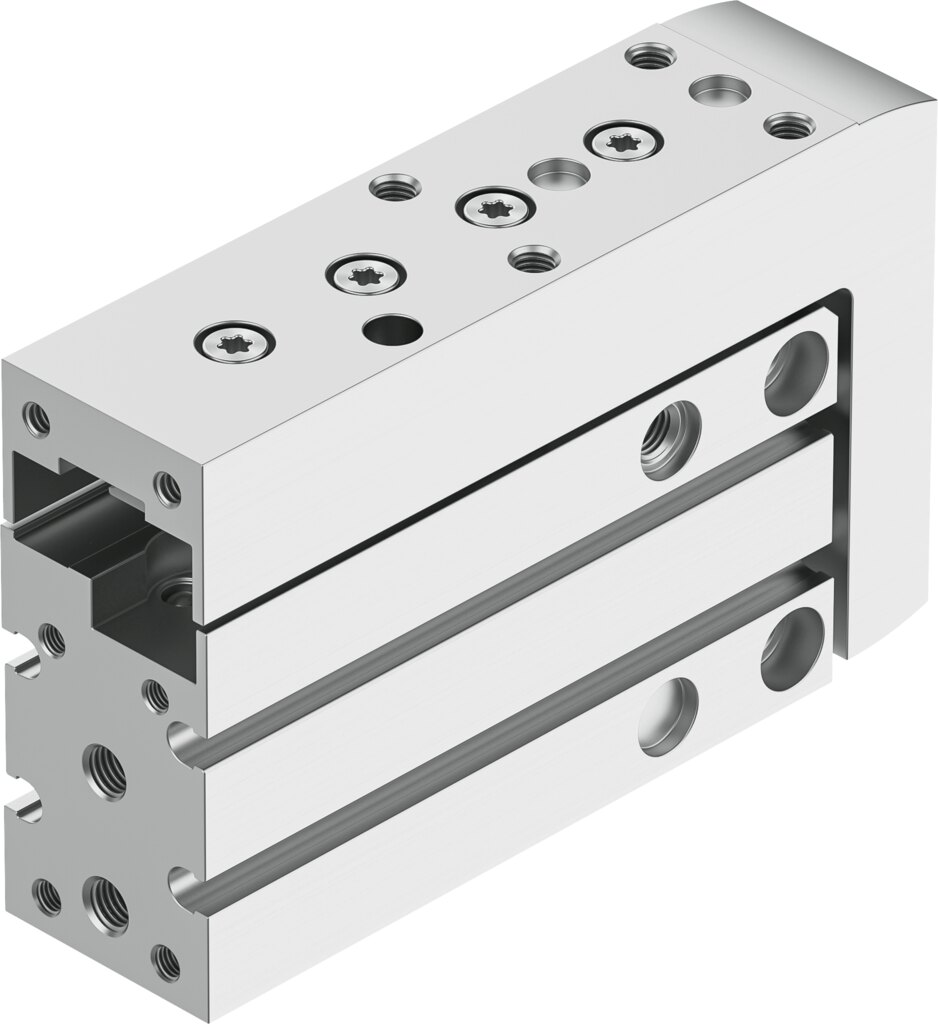

Double-acting mini slide piston Ø 16 mm stroke 30 mm DGSS-16-30-E1A - Festo 8164073
The Festo DGSS-16-30-E1A mini slide moves attached parts over a 30 mm stroke and delivers 121 N on the advance stroke at 6 bar. The recirculating ball bearing guide takes transverse forces up to 808 N and torques up to 3.8 Nm. End position cushioning: elastomer cushioning at both ends.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The double-acting mini slide DGSS-16-30-E1A from the Festo DGSS series combines drive and guide: the slide travels 30 mm and takes transverse forces of up to 808 N.
Benefits
- Travel speed up to 0.5 m/s
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
- Repetition accuracy ≤ 0.3 mm for reproducible end positions
- End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.03 J
- Recirculating ball bearing guide for transverse forces up to 808 N and torques Mx 3.8 Nm, My 2.3 Nm, Mz 2.3 Nm
Applications
The DGSS-16-30-E1A works as a lifting or transverse axis in handling systems, also in combination with grippers. Port M5, operation at 1 to 8 bar and -10 to 60 °C ambient temperature. End positions can be sensed with proximity switches.
Technical data
| Type | DGSS-16-30-E1A |
|---|---|
| Series | Festo DGSS |
| Size | 16 |
| Stroke | 30 mm |
| Piston diameter | 16 mm |
| Mode of operation | Double-acting |
| Design | Yoke, piston rod, slide |
| Guide | Recirculating ball bearing guide |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Cushioning length | 0.65 mm |
| Impact energy in end positions | 0.03 J |
| Maximum speed | 0.5 m/s |
| Repetition accuracy | ≤ 0.3 mm |
| Position detection | Via proximity switch |
| Mounting position | Any |
| Operating pressure | 1 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then always required) |
| Ambient temperature | -10 to 60 °C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Maximum force Fy | 808 N |
| Maximum force Fz | 808 N |
| Maximum moment Mx | 3.8 Nm |
| Maximum moment My | 2.3 Nm |
| Maximum moment Mz | 2.3 Nm |
| Theoretical force at 6 bar, advance stroke | 121 N |
| Theoretical force at 6 bar, return stroke | 104 N |
| Moving mass | 114 g |
| Product weight | 253 g |
| Pneumatic connection | M5 |
| Type of mounting | With through-hole, with female thread |
| Material housing | Wrought aluminium alloy |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material guide | NBR, PA, high-alloy steel |
| Material seals | NBR, PU |
| Note on materials | RoHS compliant |
| Festo part number | 8164073 |
| HS code | 84123100 |
| Weight | 0.27 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGSS-16-30-E1A |
| EAN | 4052568620080 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 16 |
| Stroke [mm] | 30 |
| Seal material | NBR, PU |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | double-acting |
| Bore (mm) | 16 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
