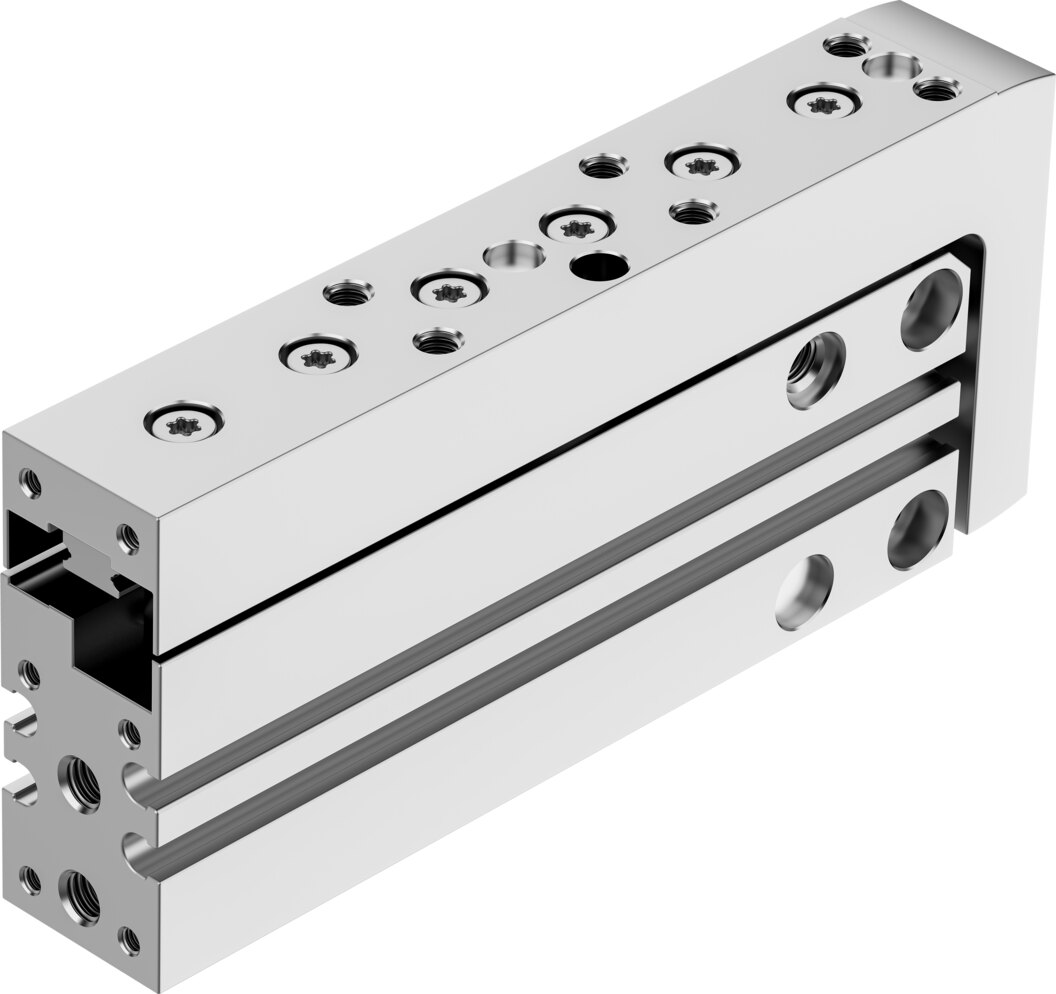

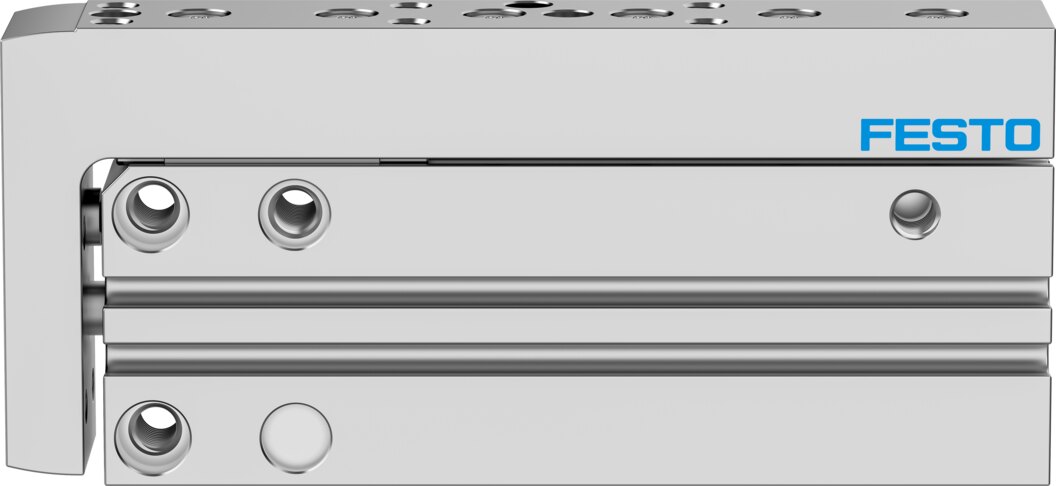

Double-acting mini slide piston Ø 10 mm stroke 60 mm DGSS-10-60-E1A - Festo 8164067

Festo ✓ Original product Brand new

The Festo DGSS-10-60-E1A mini slide moves attached parts over a 60 mm stroke and delivers 47 N on the advance stroke at 6 bar. The recirculating ball bearing guide takes transverse forces up to 572 N and torques up to 2.1 Nm. End position cushioning: elastomer cushioning at both ends.

Net
€231.70
excl. VAT
Item FES-8164067
Manufacturer no. DGSS-10-60-E1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

47 N on the advance stroke and 39 N on return at 6 bar, plus a 60 mm stroke: the Festo DGSS-10-60-E1A is a mini slide for handling axes in tight spaces.

Benefits

  • Theoretical force at 6 bar: 47 N advance, 39 N return
  • Recirculating ball bearing guide for transverse forces up to 572 N and torques Mx 2.1 Nm, My 1.8 Nm, Mz 1.8 Nm
  • Travel speed up to 0.5 m/s
  • Repetition accuracy ≤ 0.3 mm for reproducible end positions
  • Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

The slide is used in placement, assembly and packaging systems where short strokes with high guide accuracy are needed. Mounting with through-hole, with female thread, any mounting position. End positions can be sensed with proximity switches.

Technical data

TypeDGSS-10-60-E1A
SeriesFesto DGSS
Size10
Stroke60 mm
Piston diameter10 mm
Mode of operationDouble-acting
DesignYoke, piston rod, slide
GuideRecirculating ball bearing guide
CushioningElastomer cushioning, double-sided, stroke not adjustable
Cushioning length1.5 mm
Impact energy in end positions0.018 J
Maximum speed0.5 m/s
Repetition accuracy≤ 0.3 mm
Position detectionVia proximity switch
Mounting positionAny
Operating pressure1 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then always required)
Ambient temperature-10 to 60 °C
Corrosion resistance class CRC1 - Low corrosion stress
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Maximum force Fy572 N
Maximum force Fz572 N
Maximum moment Mx2.1 Nm
Maximum moment My1.8 Nm
Maximum moment Mz1.8 Nm
Theoretical force at 6 bar, advance stroke47 N
Theoretical force at 6 bar, return stroke39 N
Moving mass92 g
Product weight222 g
Pneumatic connectionM5
Type of mountingWith through-hole, with female thread
Material housingWrought aluminium alloy
Material coverWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material guideNBR, PA, high-alloy steel
Material sealsNBR, PU
Note on materialsRoHS compliant
Festo part number8164067
HS code84123100
Weight0.23 kg
ManufacturerFesto
Hersteller-NrDGSS-10-60-E1A
EAN4052568632311
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Piston Ø [mm]10
Stroke [mm]60
Seal materialNBR, PU
Housing materialAluminium
MediumCompressed air
Functiondouble-acting
Bore (mm)10
Betriebsdruck max [bar]8
Temperaturbereich-10-60 °C
Temperature (max.)60
