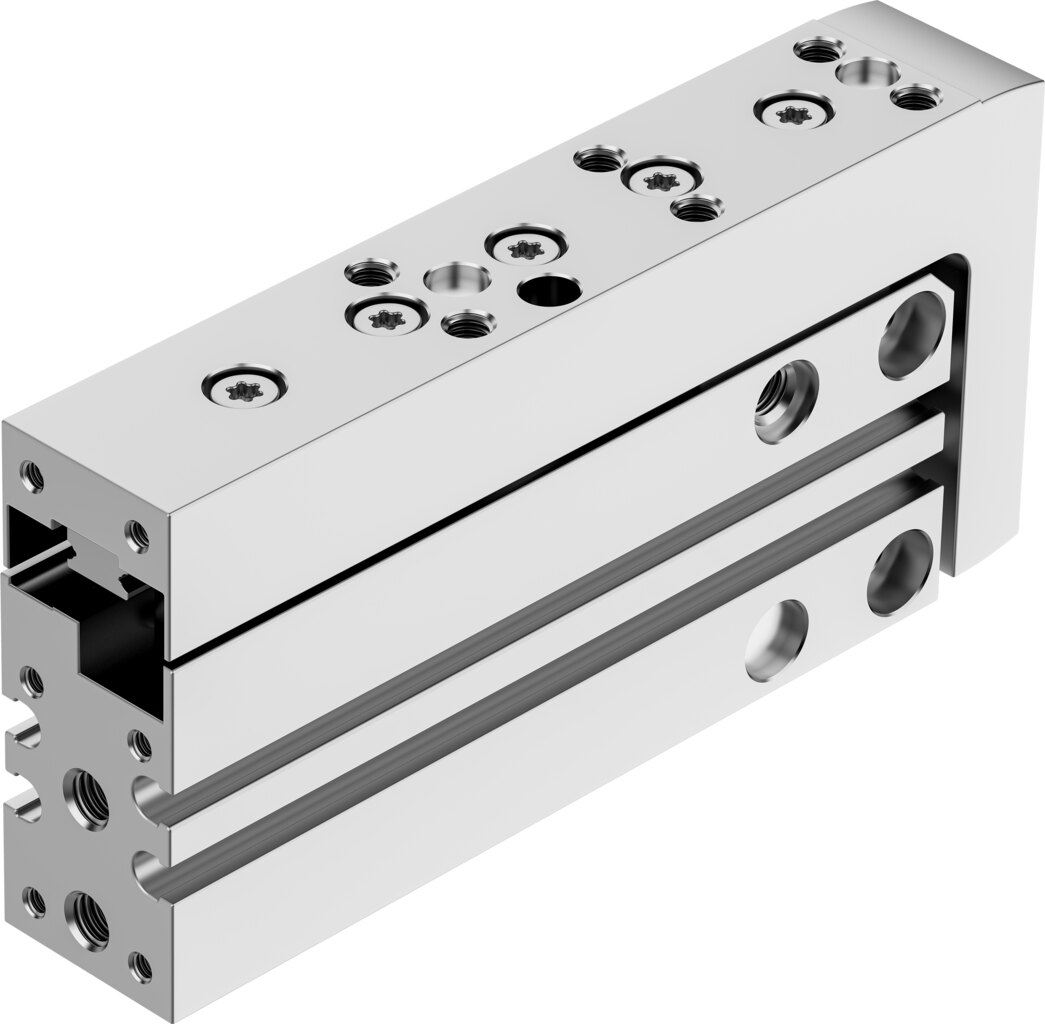

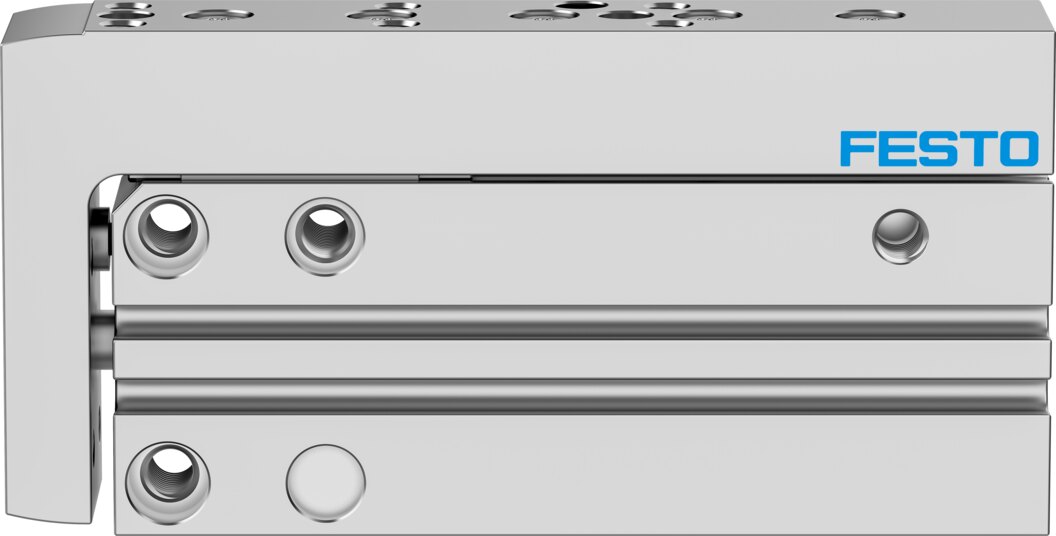

Double-acting mini slide piston Ø 10 mm stroke 50 mm DGSS-10-50-E1A - Festo 8164066
The Festo DGSS-10-50-E1A mini slide moves attached parts over a 50 mm stroke and delivers 47 N on the advance stroke at 6 bar. Its recirculating ball bearing guide carries up to 608 N transverse load. End position cushioning: elastomer cushioning at both ends.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The mini slide DGSS-10-50-E1A makes a separate guide on the cylinder unnecessary. The recirculating ball bearing guide is built in, the stroke is 50 mm with a 10 mm piston.
Benefits
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- End position cushioning: elastomer cushioning at both ends, permissible impact energy 0.018 J
- Theoretical force at 6 bar: 47 N advance, 39 N return
- Repetition accuracy ≤ 0.3 mm for reproducible end positions
- Travel speed up to 0.5 m/s
- Cleanroom class 6 to ISO 14644-1, LABS conformity VDMA24364-C1-L
Applications
Typical tasks are feeding, aligning and pick-and-place in assembly and test systems. Any mounting position is possible, mounting is with through-hole, with female thread, compressed air is supplied via M5. End positions can be sensed with proximity switches.
Technical data
| Type | DGSS-10-50-E1A |
|---|---|
| Series | Festo DGSS |
| Size | 10 |
| Stroke | 50 mm |
| Piston diameter | 10 mm |
| Mode of operation | Double-acting |
| Design | Yoke, piston rod, slide |
| Guide | Recirculating ball bearing guide |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Cushioning length | 1.5 mm |
| Impact energy in end positions | 0.018 J |
| Maximum speed | 0.5 m/s |
| Repetition accuracy | ≤ 0.3 mm |
| Position detection | Via proximity switch |
| Mounting position | Any |
| Operating pressure | 1 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then always required) |
| Ambient temperature | -10 to 60 °C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Maximum force Fy | 608 N |
| Maximum force Fz | 608 N |
| Maximum moment Mx | 2.2 Nm |
| Maximum moment My | 1.9 Nm |
| Maximum moment Mz | 1.9 Nm |
| Theoretical force at 6 bar, advance stroke | 47 N |
| Theoretical force at 6 bar, return stroke | 39 N |
| Moving mass | 84 g |
| Product weight | 202 g |
| Pneumatic connection | M5 |
| Type of mounting | With through-hole, with female thread |
| Material housing | Wrought aluminium alloy |
| Material cover | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material guide | NBR, PA, high-alloy steel |
| Material seals | NBR, PU |
| Note on materials | RoHS compliant |
| Festo part number | 8164066 |
| HS code | 84123100 |
| Manufacturer | Festo |
| Hersteller-Nr | DGSS-10-50-E1A |
| EAN | 4052568632304 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 10 |
| Stroke [mm] | 50 |
| Seal material | NBR, PU |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | double-acting |
| Bore (mm) | 10 |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
