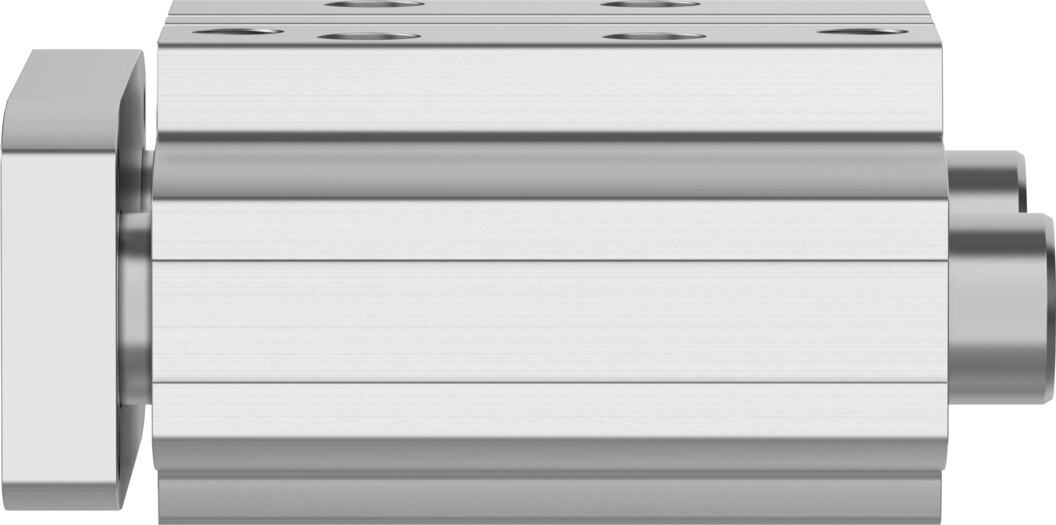

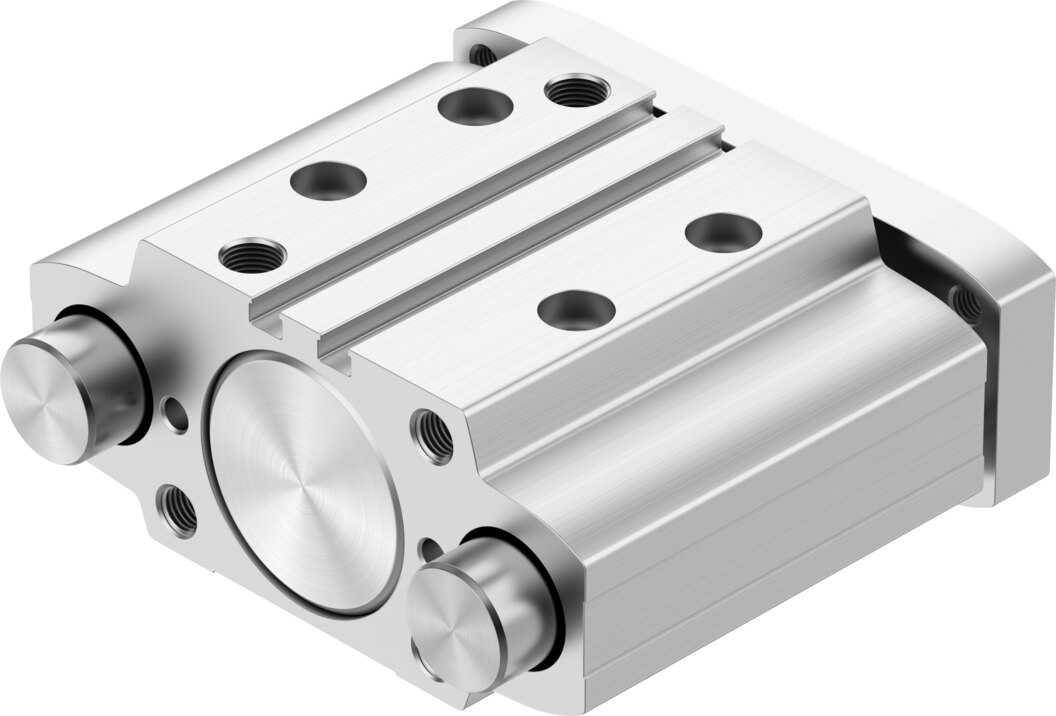

Guided drive with plain-bearing guide Ø 40 mm 25 mm stroke DGRC-GF-40-25-PA - Festo 8218219

Where a bare piston rod cannot take side loads, the DGRC-GF-40-25-PA guided drive steps in with 25 mm stroke and 754 N advancing force at 6 bar.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1057 N
• Force: 754 N advance and 686 N return at 6 bar (theoretical)
• Moments: Mx up to 44.39 Nm, My/Mz up to 21.67 Nm
• PWIS conformity: PWIS-free to VDMA24364-B1/B2-L
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.7 J
• Torsional backlash: only 0.035°

Applications

The DGRC-GF-40-25-PA suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DGRC-GF-40-25-PA runs on compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 60 °C ambient temperature and can be mounted in any position. Documented for this 25 mm stroke version: reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
