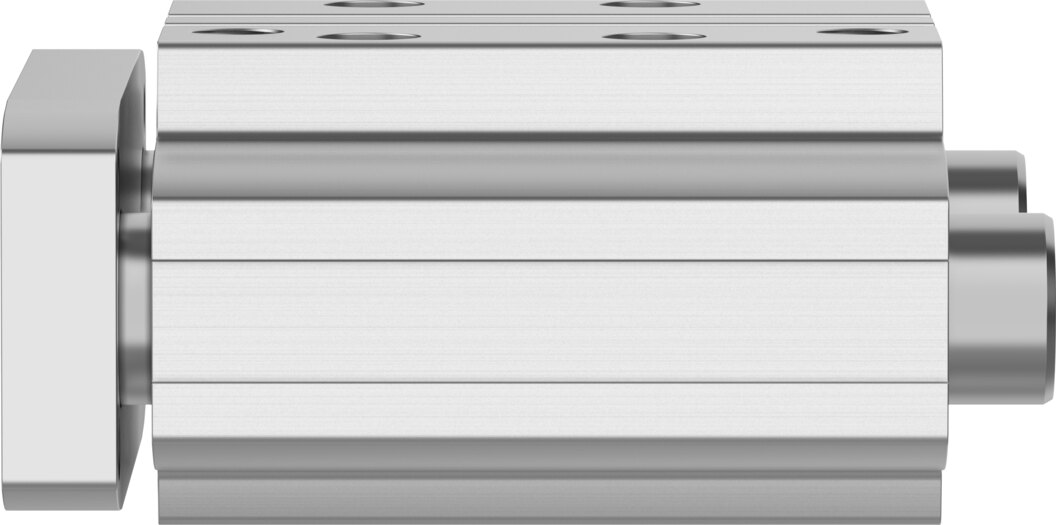

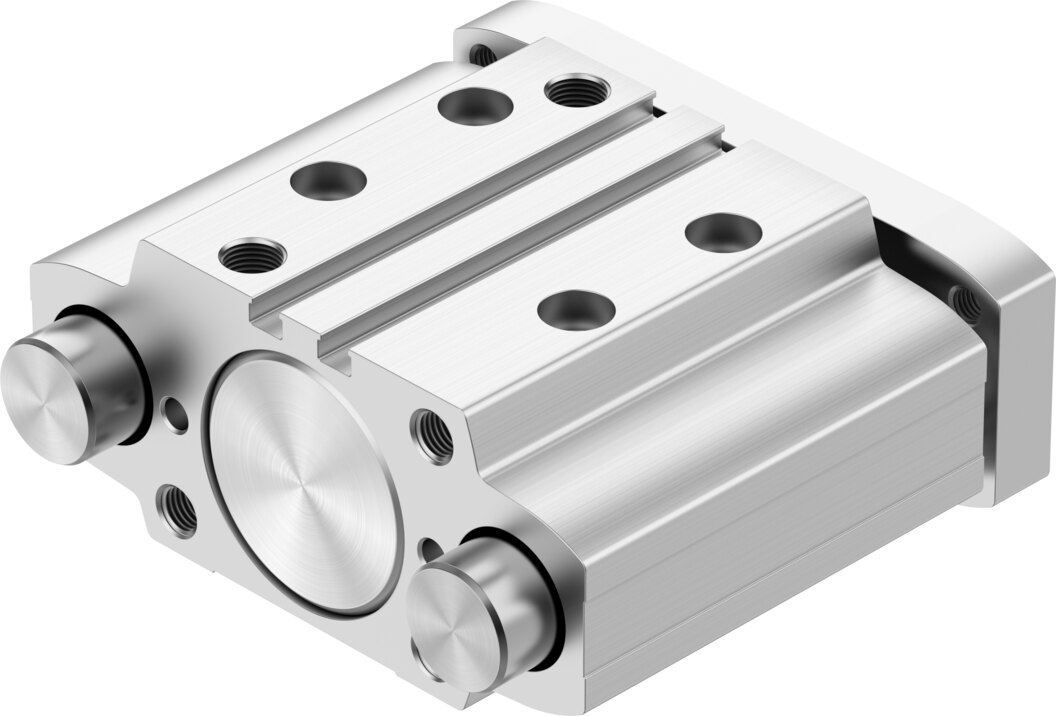

Guided drive DGRC-GF-40-100-PA - Festo 8218222
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Distance from centre of gravity of load to yoke plate xs | 50 mm |
|---|---|
| Stroke | 100 mm |
| Piston diameter | 40 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 1.5 ... 10 bar |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 60 °C |
| Impact energy in end positions | 0.7 J |
| Max. force Fy | 1057 N |
| Max. force Fy static | 1057 N |
| Max. force Fz | 1057 N |
| Max. force Fz static | 1057 N |
| Max. moment Mx | 44.39 Nm |
| Max. torque Mx static | 44.39 Nm |
| Max. moment My | 31.18 Nm |
| Max. torque My static | 31.18 Nm |
| Max. moment Mz | 31.18 Nm |
| Max. torque Mz static | 31.18 Nm |
| Max. permissible torque load Mx as a function of stroke | 7.23 Nm |
| Max. effective load dependent upon stroke at defined distance xs | 133.8 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 686 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 754 N |
| Torsional backlash | 0.035 deg |
| Moving mass | 1110.5 g |
| Product weight | 2156.3 g |
| Basic weight for 0 mm stroke | 1045.8 g |
| Centre of gravity of moving mass as a function of stroke | 76.3 mm |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material dynamic seals | TPE-U(PU) |
| Material end plate | Anodised wrought aluminium alloy |
| Material guide rod | High-alloy steel |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGRC-GF-40-100-PA |
| EAN | 4052568771218 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
