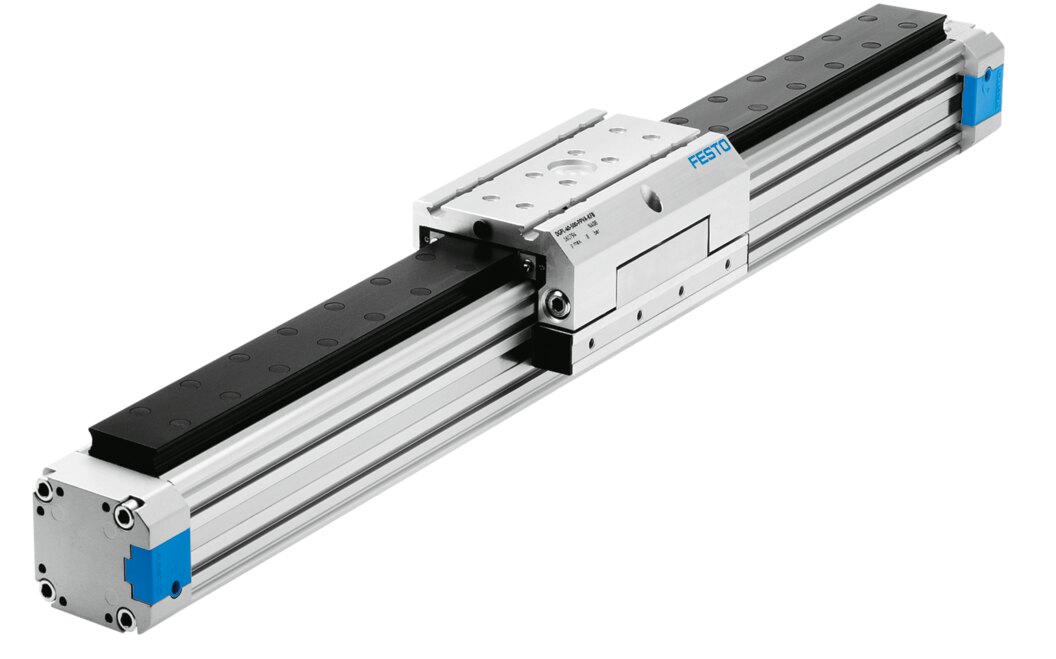

Linear drive DGPL-40- - - Festo 175136
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Stroke | 10 ... 3000 mm |
|---|---|
| Piston diameter | 40 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve |
| Mounting position | Any |
| Guide | Plain-bearing guide, Basic Guide, Recirculating ball bearing guide, Heavy-duty guide |
| Coupling design | Positive-locking (slot) |
| Position detection | Via proximity switch, With attached displacement encoder, Via integrated displacement encoder |
| Variants | Clamping unit at rear, Clamping unit, underneath, Clamping unit at front |
| Operating pressure | 1.5 ... 8 bar |
| Mode of operation | Double-acting |
| Explosion ambient temperature | -10°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress, 1 - Low corrosion stress, 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 |
| Ambient temperature | -10 ... 60 °C |
| Cushioning length | 30 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 754 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 754 N |
| alternative connections | See product drawing |
| Pneumatic connection | G1/4 |
| Material cover | Die-cast aluminium, coated |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Aluminium, anodised |
| Weight | 12 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DGPL-40- - |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
