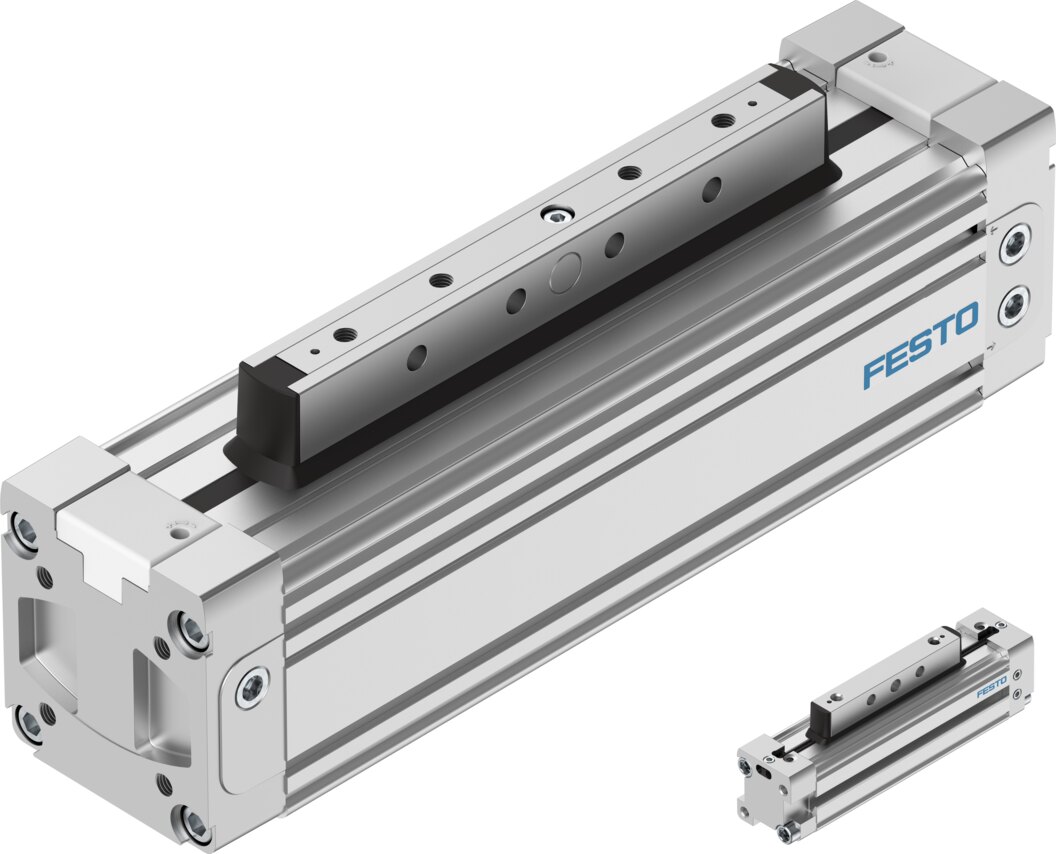

Rodless linear drive Ø 32 mm stroke 1200 mm DGC-32-1200-GF-PPV-A-DL - Festo 594814

1200 mm of stroke on a compact length: on the rodless DGC-32-1200-GF-PPV-A-DL the motion stays within the profile. Piston Ø 32 mm, stroke and equipment are defined by the order code.

Benefits

• Piston Ø 32 mm and stroke 1200 mm, defined by the order code DGC-32-1200-GF-PPV-A-DL
• Pneumatic end-position cushioning PPV, adjustable at both ends
• Prepared for proximity switches to sense the end positions (code A in the type)
• Weight 9 kg

Applications

The DGC-32-1200-GF-PPV-A-DL suits transfer movements, lifting stations and simple handling axes with 1200 mm of travel. The guide and slide version follows from the order code, we are glad to advise on load and speed sizing for the 32 mm piston.
