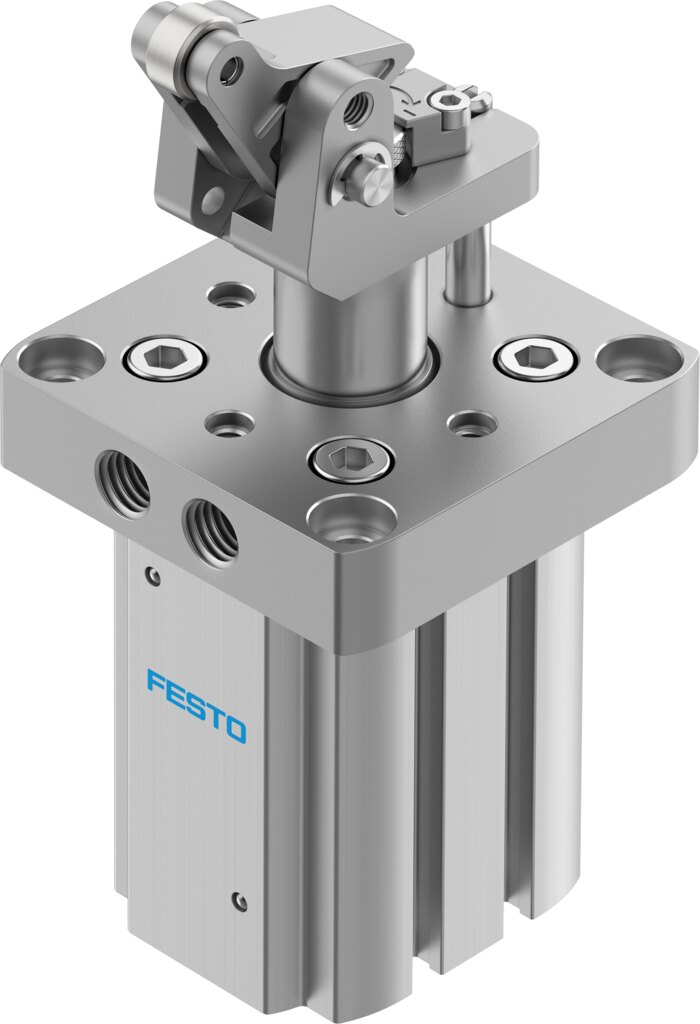

Stopper cylinder with toggle lever, double-acting, Ø 50 mm, stroke 30 mm DFST-50-30-DL-Y4-A-G2 - Festo 8090408

With 50 mm piston diameter and 30 mm stroke, the DFST stops workpiece carriers at defined positions, the extended piston rod withstands impact forces up to 3000 N. The DFST-50 runs double-acting at 2 to 10 bar.

Benefits

• Impact force on the extended piston rod up to 3000 N
• Toggle lever with shock absorber adjustable at the front, cushioning length 15 mm, toggle lever position can be sensed by inductive sensors
• Operating pressure 2 to 10 bar, mounting position vertical
• Piston rod in high-alloy stainless steel, CRC 1
• Position sensing via proximity switches, air connection G1/8

Applications

It is used wherever workpiece carriers are accumulated, separated or positioned at a machining station. The DFST-50-30-DL-Y4-A-G2 is installed in vertical position, ambient temperature 5 to 60 °C. PWIS conformity to VDMA 24364-Zone III.
