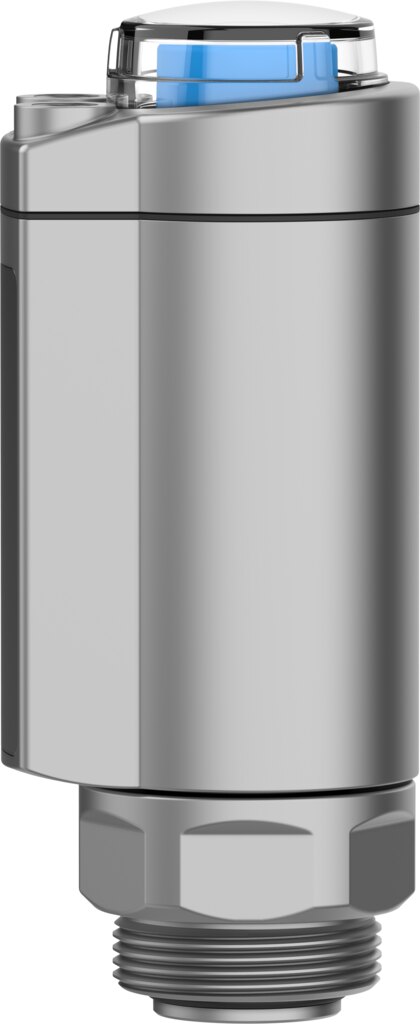

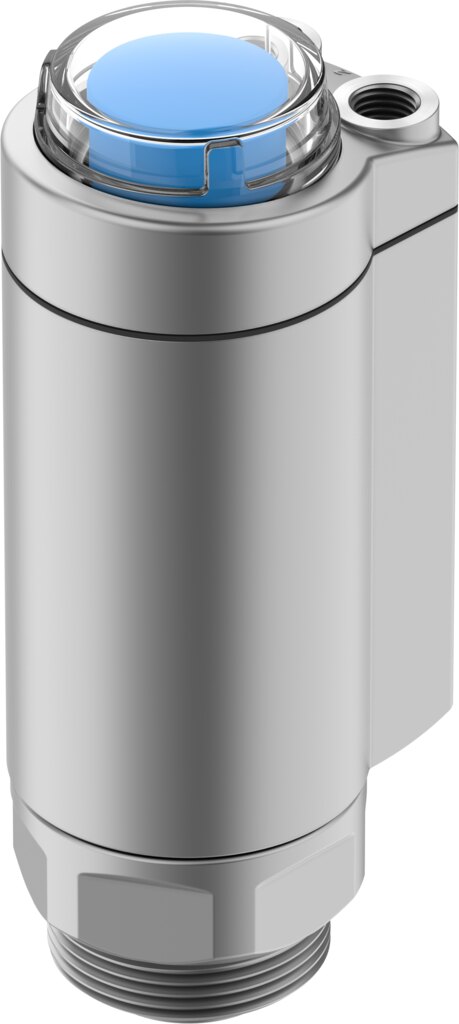

Piston actuator for process valves, stroke 17 mm, spring-to-close NC, cast stainless steel DFPK-46-17-V4 - Festo 8083959

Name: Piston actuator for process valves, stroke 17 mm, spring-to-close NC, cast stainless steel DFPK-46-17-V4 - Festo 8083959
Brand: Festo
SKU: FES-8083959
Price: 251.89 EUR
Availability: InStock

Festo ✓ Original product Brand new

DFPK piston actuator in size 46 with 17 mm stroke for process valves, control function: closed by spring force, NC. Housing and cover in cast stainless steel 1.4408, degree of protection IP65, IP67, IP69K, operating pressure 5 to 10 bar. ATEX II 2G/2D, mechanical position indicator.

Net

€251.89

excl. VAT

Item FES-8083959

Manufacturer no. DFPK-46-17-V4

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Without pilot pressure the DFPK-46-17-V4 keeps the process valve closed by spring force and switches it with compressed air, stroke 17 mm. A cast stainless steel housing (1.4408) and protection to IP65, IP67, IP69K make it suitable for plants that are wet-cleaned.

Benefits

Cast stainless steel 1.4408 for housing and cover, stainless steel piston rod
Degree of protection IP65, IP67, IP69K
ATEX II 2G and II 2D, ignition protection Ex h IIC T6...T4 Gb
Operating pressure 5 to 10 bar, connection female thread G1/8
Mechanical position indicator, ambient temperature 0 to 60 °C

Applications

The DFPK-46 actuates process valves with 17 mm of linear travel and with ATEX II 2G it can also be used in zones 1 and 2. Product weight 1.3 kg.

Technical data

Order code	DFPK-46-17-V4
Festo part number	8083959
Size of valve actuator	46
Stroke	17 mm
Mounting position	any
Position detection	with mechanical indicator
Control function	closed by spring force, NC
Operating pressure	5 to 10 bar
CE mark (see declaration of conformity)	to EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)	to UK EX regulations
Explosion protection certification outside the EU	EPL Gb (GB)
Explosion protection	Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T6...T4 Gb
Explosion ignition protection type for dust	Ex h IIIC T80°C...T120°C Db
Explosion ambient temperature	0 to 60 °C
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-10 to 60 °C
Degree of protection	IP65, IP67, IP69K
Ambient temperature	0 to 60 °C
Product weight	1298 g
Pneumatic connection	female thread G1/8
Note on materials	RoHS compliant
Material cover	cast stainless steel
Material seals	FPM
Material housing	cast stainless steel
Material number housing	1.4408
Material piston rod	high-alloy stainless steel
Weight	1.4 kg
Manufacturer	Festo
Hersteller-Nr	DFPK-46-17-V4
EAN	4052568457747
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Stainless steel 1.4408
Thread	G 1/8
Stroke [mm]	17
Seal material	FPM
Medium	Compressed air
Function	single-acting
Actuation type	pneumatic
Thread type	Internal thread
Betriebsdruck max [bar]	10
Protection rating	IP65
Temperaturbereich	0-60 °C
Temperature (max.)	60
