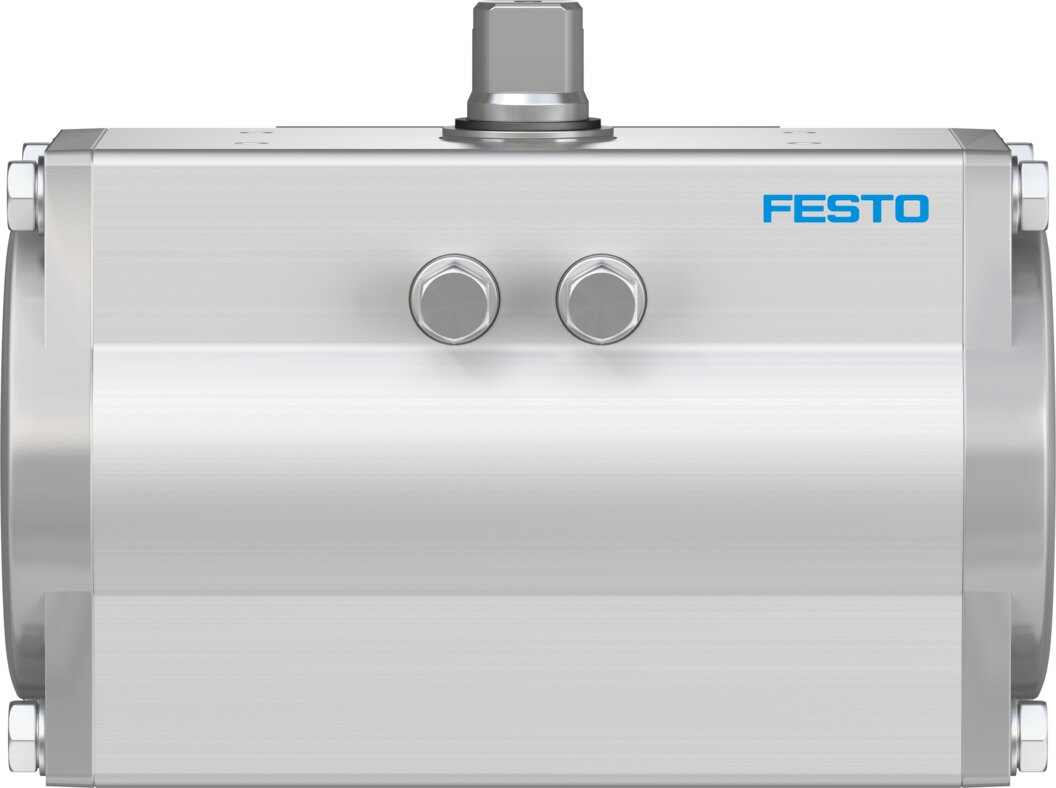

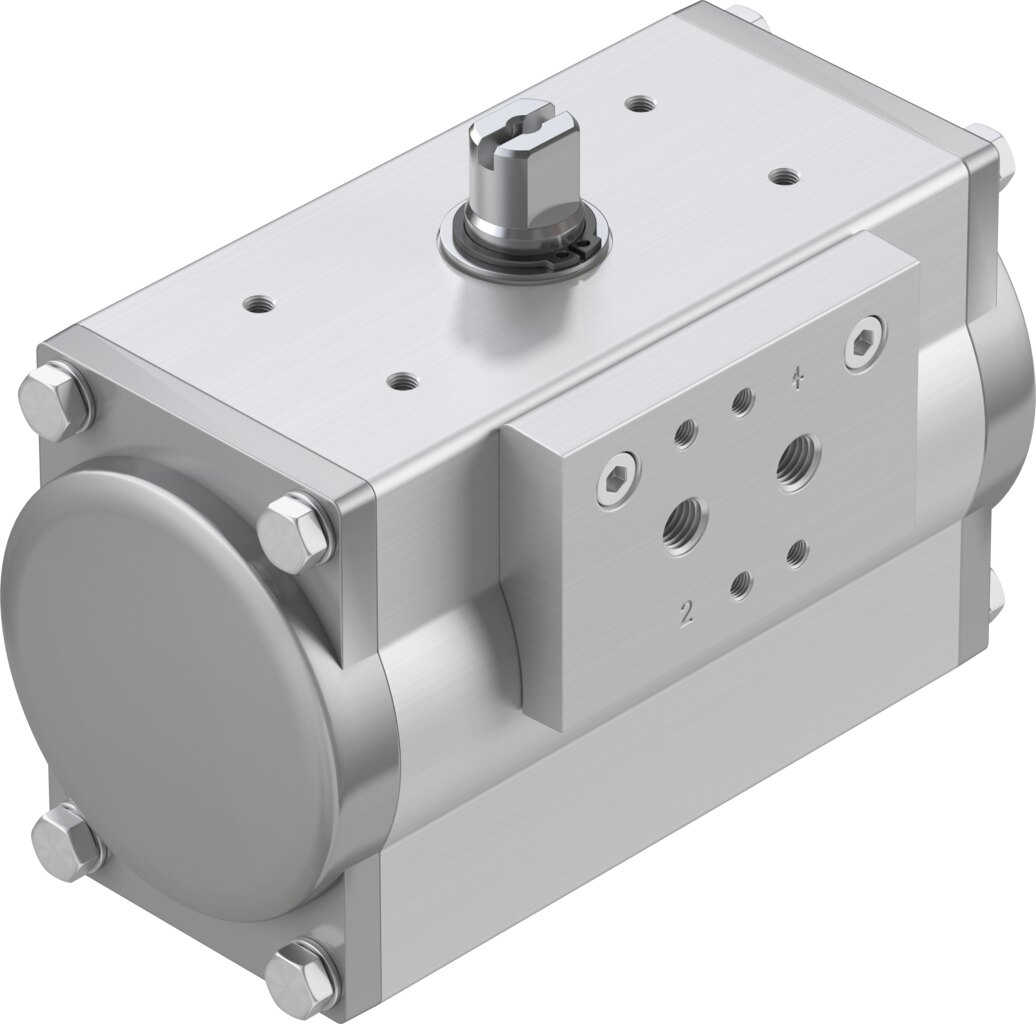

Quarter turn actuator, double-acting, 38.3 Nm, size 40, flange F0507 DFPD-N-40-RP-90-RD-F0507 - Festo 8066404

With up to 38.3 Nm at 5.5 bar nominal pressure, the size 40 DFPD operates ball valves and butterfly valves with flange pattern F0507. Flange pattern F0507 to ISO 5211 and shaft connection T14, depth 16 mm fit directly onto the valve top.

Benefits

• 38.3 Nm torque across the 90° swivel angle at 5.5 bar
• Valve interface to ISO 5211: flange F0507, shaft connection T14
• Valve interface to VDI/VDE 3845 (NAMUR) for direct mounting of a solenoid valve, positioner and position sensor interface size AA 1
• For hazardous areas: ATEX II 2G and II 2D, ignition protection Ex h IIC T4 Gb X
• End position at 0° adjustable by -5 to 5°
• Suitable for safety-related control systems (SRP/CS) up to SIL 2 Low Demand

Applications

It operates 90-degree valves with top flange F0507, for example ball valves or butterfly valves in pipelines. Thanks to ATEX II 2G/2D, the size 40 DFPD may be used in zones 1 and 2 as well as zones 21 and 22. The DFPD-N-40-RP-90-RD-F0507 runs on compressed air to ISO 8573-1:2010 [7:4:4] within 2 to 8 bar. For sizing the valve bracket: product weight 1.88 kg.
