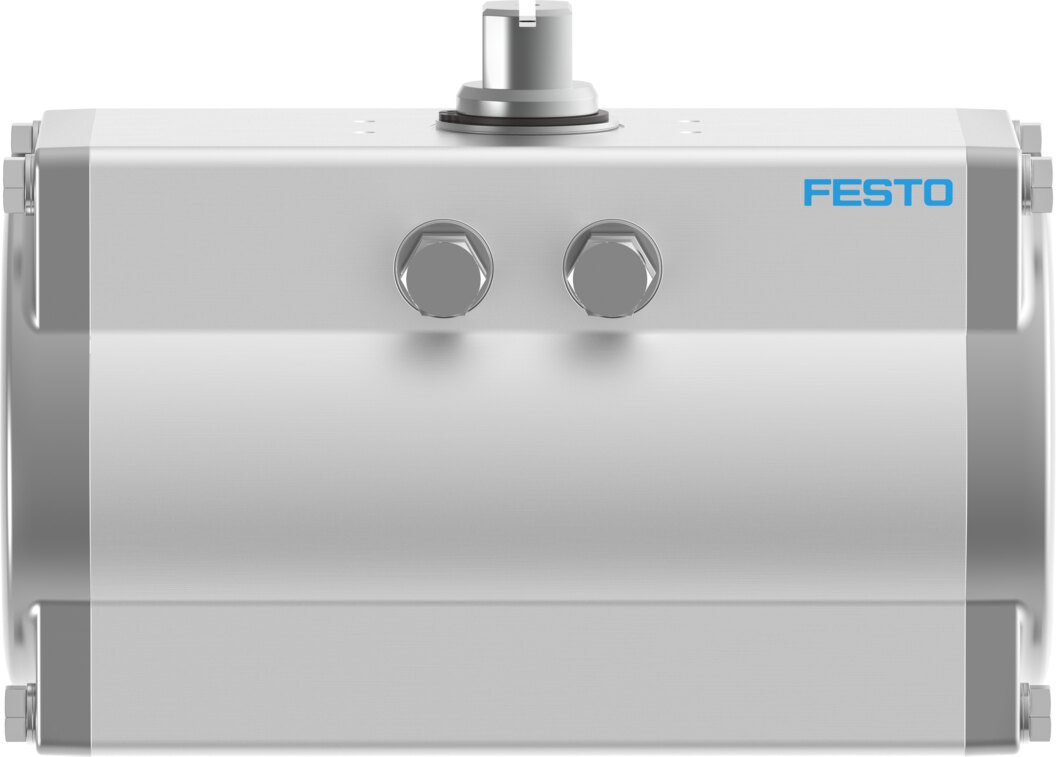

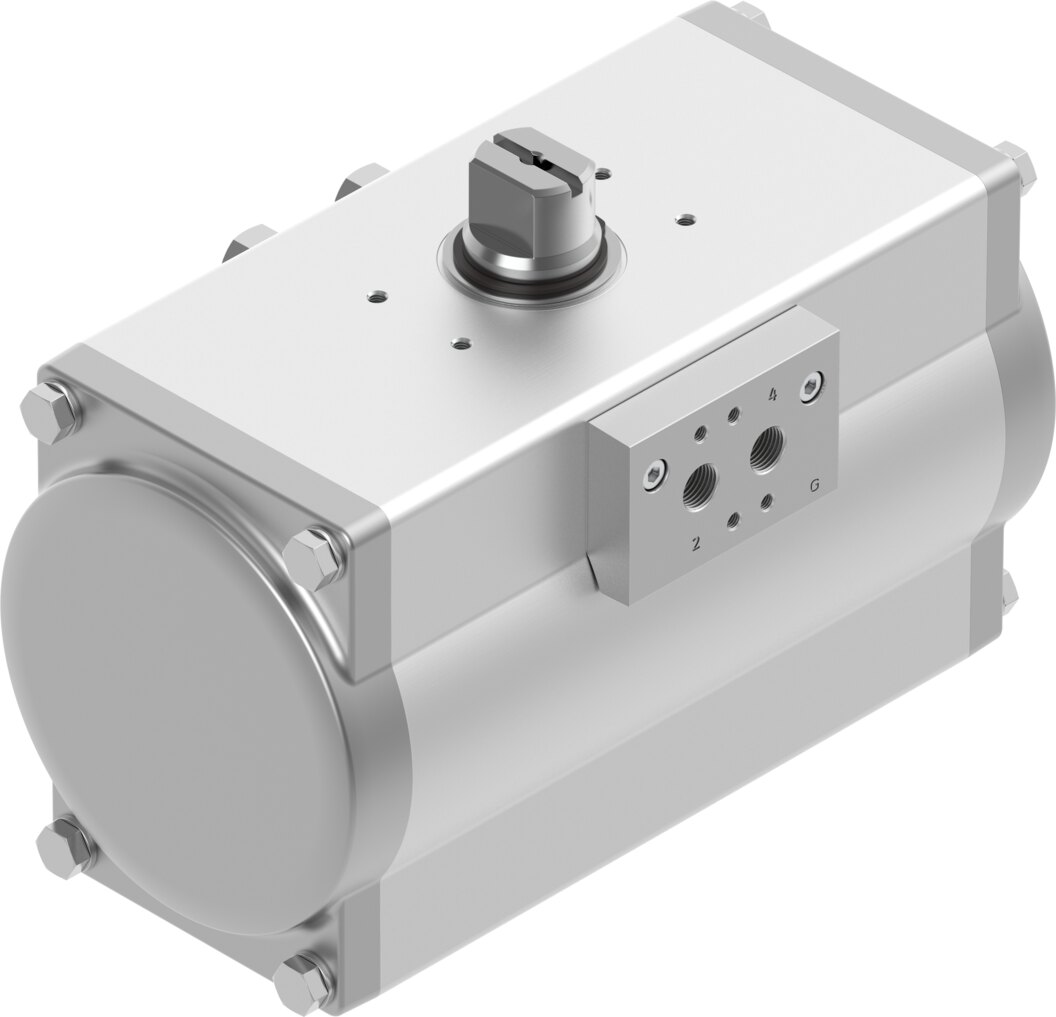

Quarter turn actuator, double-acting, 234.3 Nm, size 240, flange F0710 DFPD-N-240-RP-90-RD-F0710 - Festo 8066414

Name: Quarter turn actuator, double-acting, 234.3 Nm, size 240, flange F0710 DFPD-N-240-RP-90-RD-F0710 - Festo 8066414
Brand: Festo
SKU: FES-8066414
Price: 312.95 EUR
Availability: InStock

Festo ✓ Original product Brand new

Double-acting DFPD in size 240 for quarter-turn valves, mounted via flange F0710 to ISO 5211. At 5.5 bar nominal pressure it reaches 234.3 Nm across its 90° swivel range. Approvals and rating: ATEX II 2G/2D, suitable up to SIL 2 Low Demand. Weight 8.59 kg.

Net

€312.95

excl. VAT

Item FES-8066414

Manufacturer no. DFPD-N-240-RP-90-RD-F0710

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Double-acting quarter turn actuator with rack and pinion for quarter-turn valves: 234.3 Nm torque at 5.5 bar, swivel angle 90°. It mounts via the F0710 hole pattern to ISO 5211, the T22 shaft, depth 24 mm engages the valve stem.

Benefits

Torque 234.3 Nm at 5.5 bar nominal pressure
Valve interface to ISO 5211: flange F0710, shaft connection T22

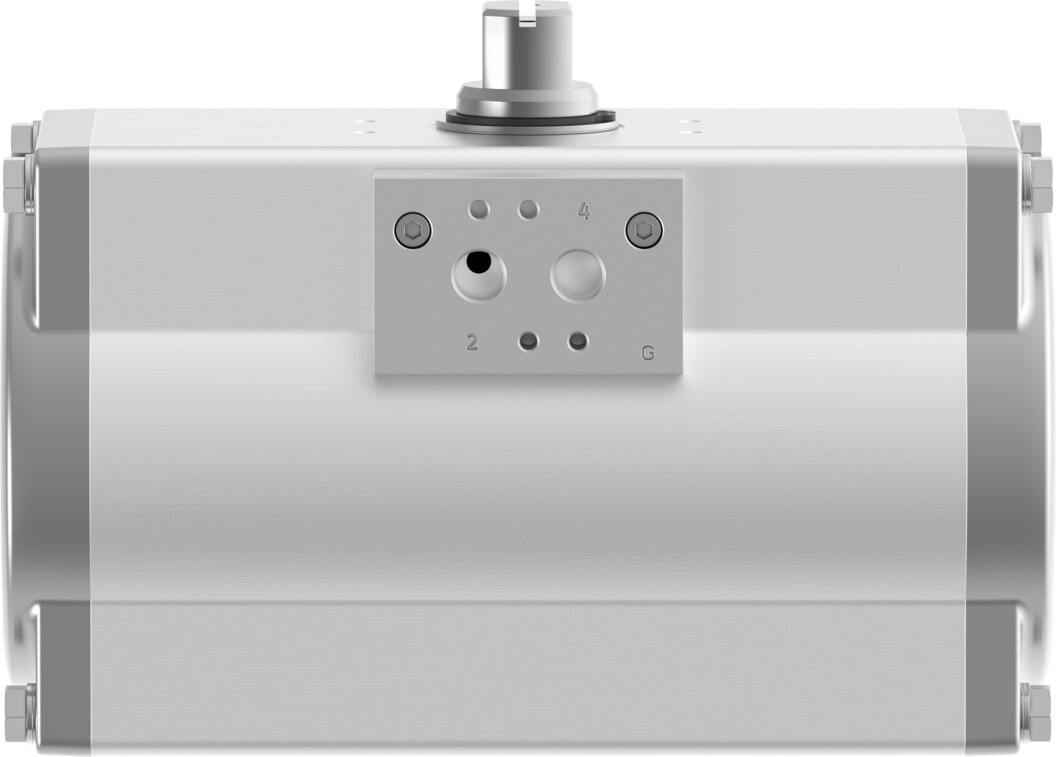

Valve interface to VDI/VDE 3845 (NAMUR) for direct mounting of a solenoid valve, positioner and position sensor interface size AA 2
For hazardous areas: ATEX II 2G and II 2D, ignition protection Ex h IIC T4 Gb X
End position at 0° adjustable by -5 to 5°
Suitable for safety-related control systems (SRP/CS) up to SIL 2 Low Demand

Applications

The DFPD is intended for quarter-turn valves with top flange F0710, such as ball valves and butterfly valves in process plants. Thanks to ATEX II 2G/2D, the size 240 DFPD may be used in zones 1 and 2 as well as zones 21 and 22. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] within 2 to 8 bar, nominal pressure 5.5 bar. The product weight is 8.59 kg.

Technical data

Order code	DFPD-N-240-RP-90-RD-F0710
Festo part number	8066414
Size of valve actuator	240
Flange hole pattern	F0710
Swivel angle	90°
End-position adjustment range at 0°	-5 to 5°
End-position adjustment range at nominal swivel angle	-5 to 5°
Shaft connection depth	24 mm
Fitting connection conforms to standard	ISO 5211
Mounting position	any
Mode of operation	double-acting
Design	rack and pinion
Closing direction	closes to the right
Valve connection conforms to standard	VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 2
Device type according to VDMA 66413	safety component
Safety function	the safety function consists of the actuator switching to the specified safety switching position, This switching movement is achieved by pressurising the corresponding pressure chamber with compressed air, The value of the generated torque depends on the
Safety Integrity Level (SIL)	up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture, Up to SIL 1 high demand mode
Certified for safety function to ISO 13849 and IEC 61508 (SIL)	Product can be used in SRP/CS up to SIL 2 (Low Demand), Product can be used in SRP/CS up to SIL 1 (High Demand), Up to SIL 3 in a redundant architecture
Burst pressure	24 bar
Operating pressure	2 to 8 bar
Nominal operating pressure	5.5 bar
Marine classification	see certificate
CE mark (see declaration of conformity)	to EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)	to UK EX regulations
Explosion protection certification outside the EU	EPL Gb (GB)
Explosion protection	Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority	DNV TAP00001CE, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T4 Gb X
Explosion ignition protection type for dust	Ex h IIIC T105°C Db X
Explosion ambient temperature	-20 to 80 °C
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-20 to 60 °C
Ambient temperature	-20 to 80 °C
Torque at nominal operating pressure and 0° swivel angle	234.3 Nm
Torque at nominal operating pressure and 90° swivel angle	234.3 Nm
Note on torque	The operating torque of the actuator must not exceed the maximum permissible torque listed in ISO 5211 for the size of the mounting flange and coupling
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°	20.3 l
Product weight	8594 g
Shaft connection	T22
Pneumatic connection	1/4 NPT
Note on materials	RoHS compliant
Material connecting plate	anodised wrought aluminium alloy
Material cover	die-cast aluminium, coated
Material seals	NBR
Material housing	anodised aluminium
Material piston	die-cast aluminium
Material bearing	POM
Material cam	steel
Material screws	high-alloy stainless steel
Material shaft	steel, nickel-plated
Manufacturer	Festo
Hersteller-Nr	DFPD-N-240-RP-90-RD-F0710
EAN	4052568443696
Zolltarifnummer	84123900
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium
Seal material	NBR
Medium	Compressed air
Function	double-acting
Actuation type	pneumatic
Series	DFPD
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
