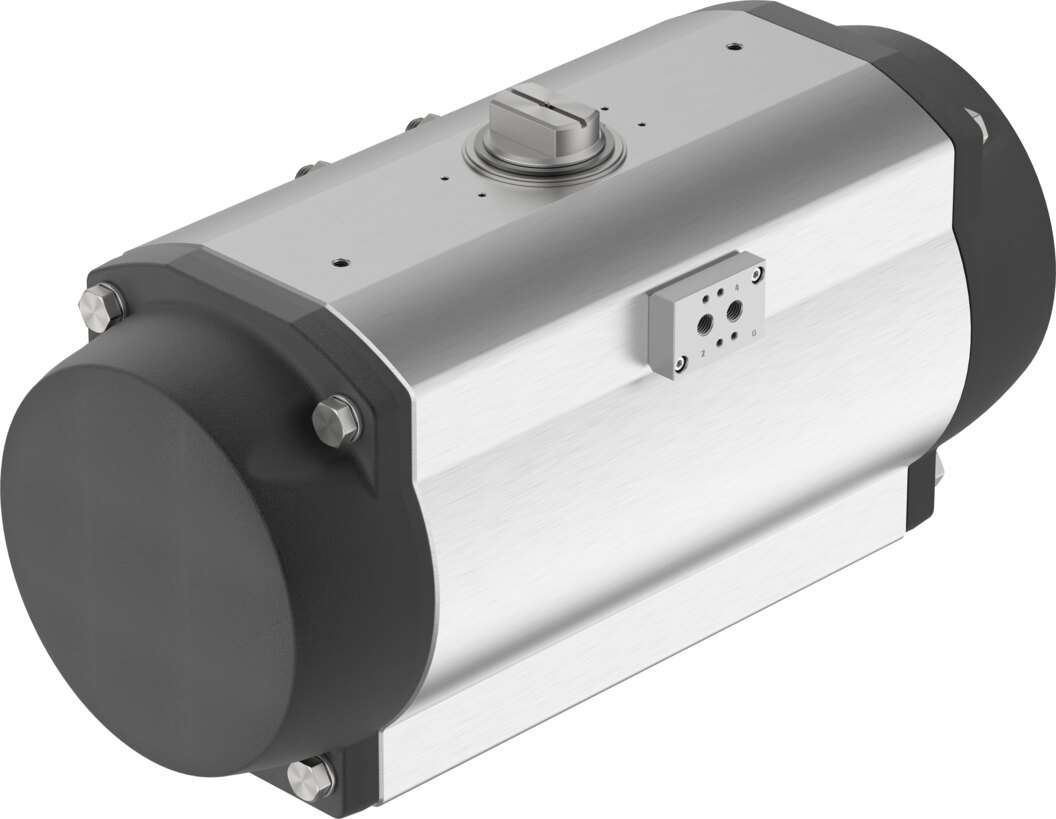

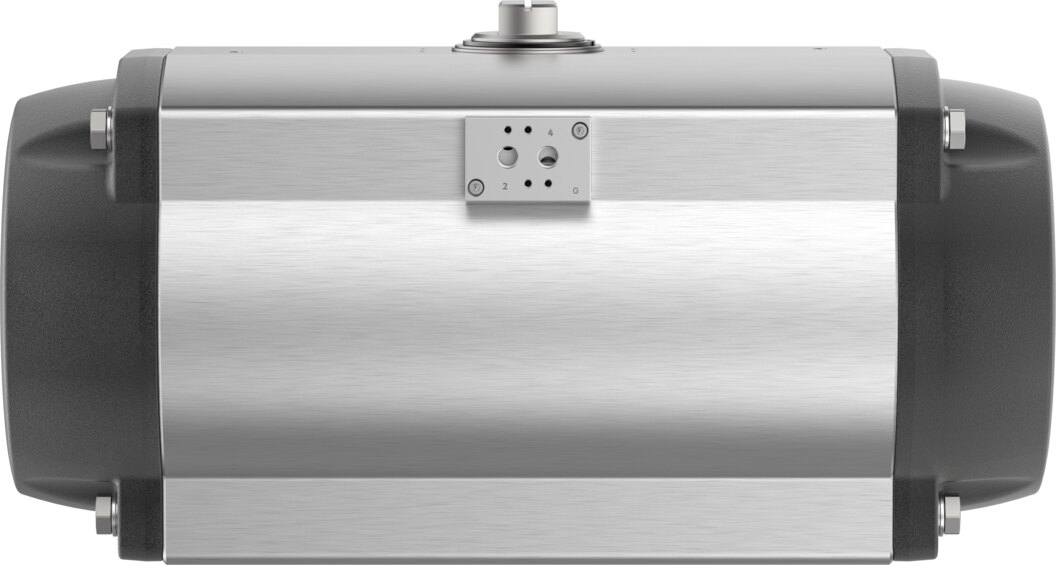

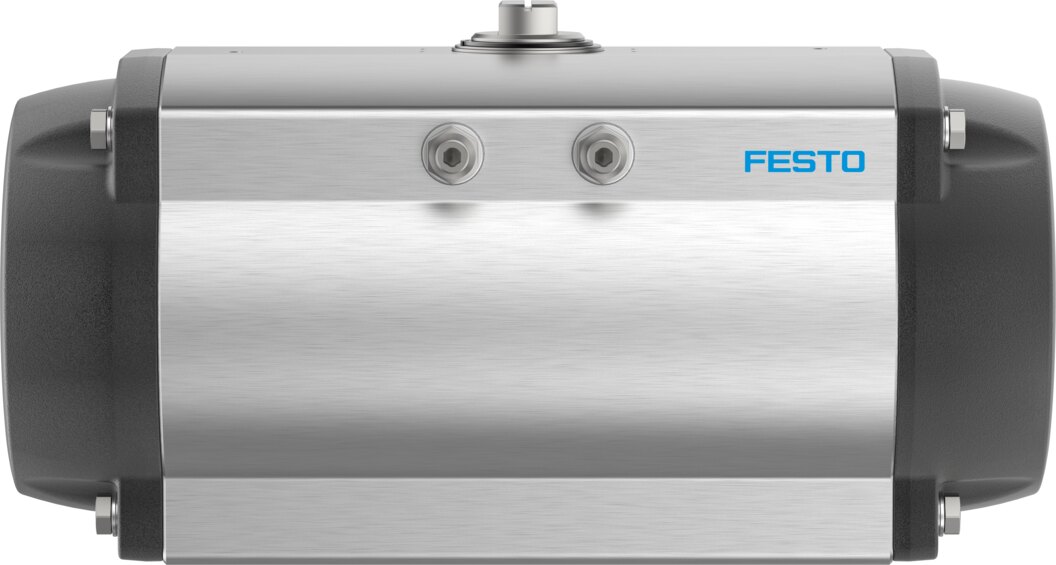

Quarter turn actuator, single-acting, spring return, size 2300, flange F16 DFPD-N-2300-RP-90-RS45-F16-R3-C - Festo 8102915

Name: Quarter turn actuator, single-acting, spring return, size 2300, flange F16 DFPD-N-2300-RP-90-RS45-F16-R3-C - Festo 8102915
Brand: Festo
SKU: FES-8102915
Price: 2954.00 EUR
Availability: InStock

Festo ✓ Original product Brand new

Spring-return quarter turn actuator in size 2300 for quarter-turn valves, mounted via flange F16 to ISO 5211. At 4.5 bar nominal pressure the air stroke delivers 700.6 to 1163 Nm, the spring returns with 663.3 to 1127 Nm. Approvals and rating: ATEX II 2G/2D, suitable up to SIL 2 Low Demand.

Net

€2,954.00

excl. VAT

Item FES-8102915

Manufacturer no. DFPD-N-2300-RP-90-RS45-F16-R3-C

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

If the compressed air fails, the spring set of the DFPD-N-2300-RP-90-RS45-F16-R3-C turns the valve into the defined position with at least 663.3 Nm spring torque. Flange pattern F16 to ISO 5211 and shaft connection T46, depth 48 mm fit directly onto the valve top.

Benefits

700.6 to 1163 Nm with compressed air (4.5 bar) and 663.3 to 1127 Nm from the spring set
Safety position by spring force if air supply fails, device type to VDMA 66413: safety component
Valve interface to ISO 5211: flange F16, shaft connection T46
Valve interface to VDI/VDE 3845 (NAMUR) for direct mounting of a solenoid valve, positioner and position sensor interface size AA 3
For hazardous areas: ATEX II 2G and II 2D, ignition protection Ex h IIC T4 Gb X
Shaft made of high-alloy stainless steel, ambient temperature -20 to 80 °C

Applications

Typical tasks are on/off actuation of ball valves, butterfly valves and plug valves with top flange F16. For hazardous areas: the actuator with flange F16 is rated ATEX II 2G/2D for zones 1 and 2 as well as zones 21 and 22. The DFPD-N-2300-RP-90-RS45-F16-R3-C runs on compressed air to ISO 8573-1:2010 [7:4:4] within 2 to 8 bar. The product weight is 74.7 kg.

Technical data

Order code	DFPD-N-2300-RP-90-RS45-F16-R3-C
Festo part number	8102915
Size of valve actuator	2300
Flange hole pattern	F16
Swivel angle	90°
End-position adjustment range at 0°	-5 to 5°
End-position adjustment range at nominal swivel angle	-5 to 5°
Shaft connection depth	48 mm
Fitting connection conforms to standard	ISO 5211
Mounting position	any
Mode of operation	single-acting
Design	rack and pinion
Closing direction	closes to the right
Valve connection conforms to standard	VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 3
Device type according to VDMA 66413	safety component
Safety function	With the compressed air switched off and the spring chamber exhausted, the actuator moves into the defined safety position, This movement is produced by the force of the spring assembly
Safety Integrity Level (SIL)	up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture, Up to SIL 1 high demand mode
Certified for safety function to ISO 13849 and IEC 61508 (SIL)	Product can be used in SRP/CS up to SIL 2 (Low Demand), Product can be used in SRP/CS up to SIL 1 (High Demand), Up to SIL 3 in a redundant architecture
Burst pressure	24 bar
Operating pressure	2 to 8 bar
Nominal operating pressure	4.5 bar
Marine classification	see certificate
CE mark (see declaration of conformity)	to EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)	to UK EX regulations
Explosion protection certification outside the EU	EPL Gb (GB)
Explosion protection	Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority	DNV TAP00001CE, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T4 Gb X
Explosion ignition protection type for dust	Ex h IIIC T105°C Db X
Explosion ambient temperature	-20 to 80 °C
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-20 to 60 °C
Ambient temperature	-20 to 80 °C
Torque at nominal operating pressure and 0° swivel angle	1163 Nm
Torque at nominal operating pressure and 90° swivel angle	700.6 Nm
Note on torque	The operating torque of the actuator must not exceed the maximum permissible torque listed in ISO 5211 for the size of the mounting flange and coupling
Spring return torque at 0° swivel angle	663.3 Nm
Spring return torque at 90° swivel angle	1127 Nm
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°	84.4 l
Product weight	74726 g
Shaft connection	T46
Pneumatic connection	1/4 NPT
Note on materials	RoHS compliant
Material connecting plate	anodised wrought aluminium alloy
Material cover	anodised die-cast aluminium
Material seals	NBR
Material spring	spring steel
Material housing	anodised aluminium
Material piston	die-cast aluminium
Material bearing	POM
Material cam	steel
Material screws	high-alloy stainless steel
Material shaft	high-alloy stainless steel
Manufacturer	Festo
Hersteller-Nr	DFPD-N-2300-RP-90-RS45-F16-R3-C
EAN	4052568456184
Zolltarifnummer	90330090
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium
Seal material	NBR
Medium	Compressed air
Function	single-acting
Actuation type	pneumatic
Norm	ISO 5211, VDI/VDE 3845
Series	DFPD
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
