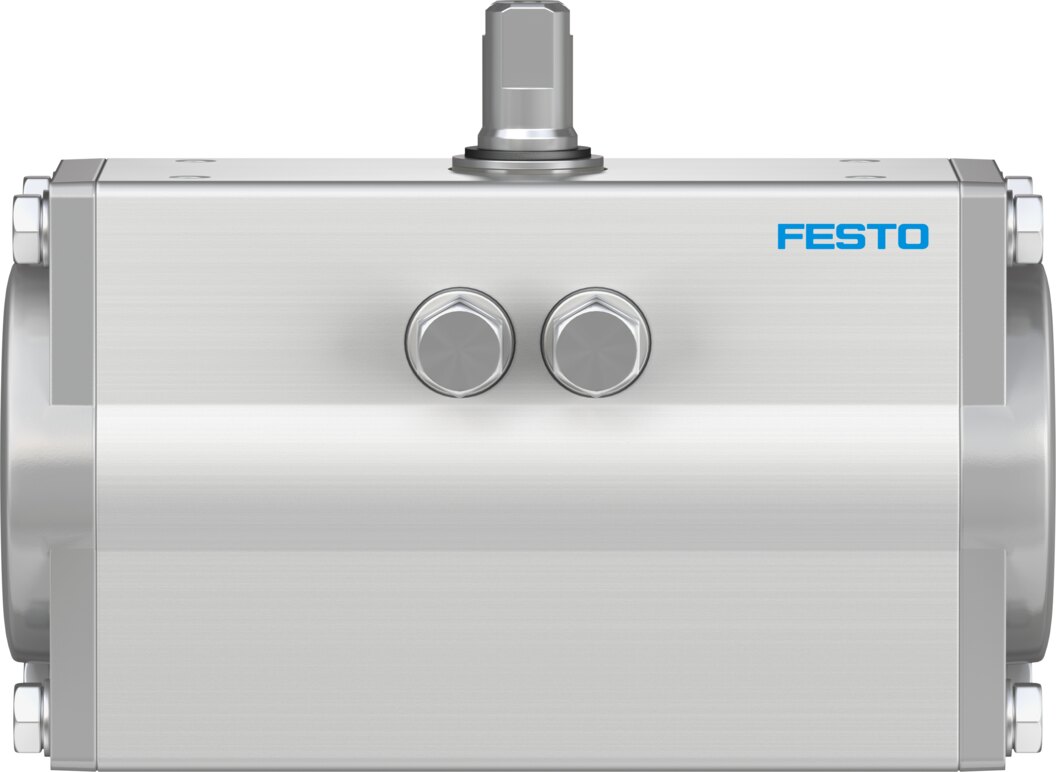

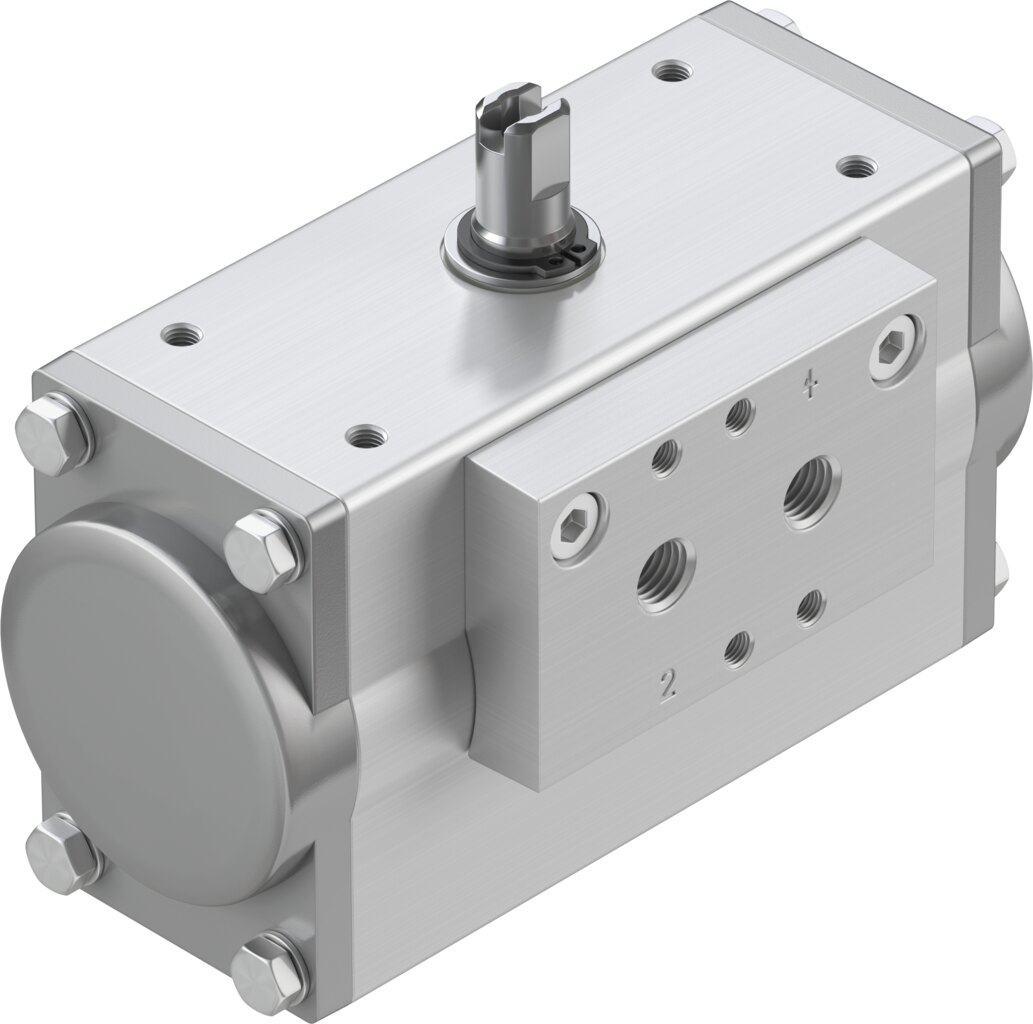

Quarter turn actuator, double-acting, 10.3 Nm, size 10, flange F04 DFPD-N-10-RP-90-RD-F04 - Festo 8066401

Name: Quarter turn actuator, double-acting, 10.3 Nm, size 10, flange F04 DFPD-N-10-RP-90-RD-F04 - Festo 8066401
Brand: Festo
SKU: FES-8066401
Price: 78.14 EUR
Availability: InStock

Festo ✓ Original product Brand new

Double-acting DFPD in size 10 for quarter-turn valves, mounted via flange F04 to ISO 5211. Torque 10.3 Nm at 5.5 bar, swivel angle 90°. Approvals and rating: ATEX II 2G/2D, suitable up to SIL 2 Low Demand. Weight 0.96 kg.

Net

€78.14

excl. VAT

Item FES-8066401

Manufacturer no. DFPD-N-10-RP-90-RD-F04

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The double-acting DFPD-N-10-RP-90-RD-F04 turns process valves in both directions with compressed air and delivers 10.3 Nm at 5.5 bar. It mounts via the F04 hole pattern to ISO 5211, the T9 shaft, depth 10 mm engages the valve stem.

Benefits

10.3 Nm torque across the 90° swivel angle at 5.5 bar
Valve interface to ISO 5211: flange F04, shaft connection T9
Valve interface to VDI/VDE 3845 (NAMUR) for direct mounting of a solenoid valve, positioner and position sensor interface size AA 1
For hazardous areas: ATEX II 2G and II 2D, ignition protection Ex h IIC T4 Gb X
Air consumption 1 l per switching cycle at 6 bar
End position at 0° adjustable by -5 to 5°

Applications

It operates 90-degree valves with top flange F04, for example ball valves or butterfly valves in pipelines. For hazardous areas: the actuator with flange F04 is rated ATEX II 2G/2D for zones 1 and 2 as well as zones 21 and 22. Medium: compressed air to ISO 8573-1:2010 [7:4:4], permitted 2 to 8 bar, rated at 5.5 bar. The product weight is 0.96 kg.

Technical data

Order code	DFPD-N-10-RP-90-RD-F04
Festo part number	8066401
Size of valve actuator	10
Flange hole pattern	F04
Swivel angle	90°
End-position adjustment range at 0°	-5 to 5°
End-position adjustment range at nominal swivel angle	-5 to 5°
Shaft connection depth	10 mm
Fitting connection conforms to standard	ISO 5211
Mounting position	any
Mode of operation	double-acting
Design	rack and pinion
Closing direction	closes to the right
Valve connection conforms to standard	VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 1
Device type according to VDMA 66413	safety component
Safety function	the safety function consists of the actuator switching to the specified safety switching position, This switching movement is achieved by pressurising the corresponding pressure chamber with compressed air, The value of the generated torque depends on the
Safety Integrity Level (SIL)	up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture, Up to SIL 1 high demand mode
Certified for safety function to ISO 13849 and IEC 61508 (SIL)	Product can be used in SRP/CS up to SIL 2 (Low Demand), Product can be used in SRP/CS up to SIL 1 (High Demand), Up to SIL 3 in a redundant architecture
Burst pressure	24 bar
Operating pressure	2 to 8 bar
Nominal operating pressure	5.5 bar
Marine classification	see certificate
CE mark (see declaration of conformity)	to EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)	to UK EX regulations
Explosion protection certification outside the EU	EPL Gb (GB)
Explosion protection	Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority	DNV TAP00001CE, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T4 Gb X
Explosion ignition protection type for dust	Ex h IIIC T105°C Db X
Explosion ambient temperature	-20 to 80 °C
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	dew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-20 to 60 °C
Ambient temperature	-20 to 80 °C
Torque at nominal operating pressure and 0° swivel angle	10.3 Nm
Torque at nominal operating pressure and 90° swivel angle	10.3 Nm
Note on torque	The operating torque of the actuator must not exceed the maximum permissible torque listed in ISO 5211 for the size of the mounting flange and coupling
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°	1 l
Product weight	965 g
Shaft connection	T9
Pneumatic connection	1/8 NPT
Note on materials	RoHS compliant
Material connecting plate	anodised wrought aluminium alloy
Material cover	die-cast aluminium, coated
Material seals	NBR
Material housing	anodised aluminium
Material piston	die-cast aluminium
Material bearing	POM
Material cam	high-alloy stainless steel
Material screws	high-alloy stainless steel
Material shaft	steel, nickel-plated
Manufacturer	Festo
Hersteller-Nr	DFPD-N-10-RP-90-RD-F04
EAN	4052568443566
Zolltarifnummer	84123900
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	Aluminium
Seal material	NBR
Medium	Compressed air
Function	double-acting
Actuation type	pneumatic
Series	DFPD
Betriebsdruck max [bar]	8
Temperaturbereich	-20-80 °C
Temperature (max.)	80
