Quarter turn actuator, single-acting, spring return, size 900, flange F1012 DFPD-900-RP-90-RS40-F1012 - Festo 610343

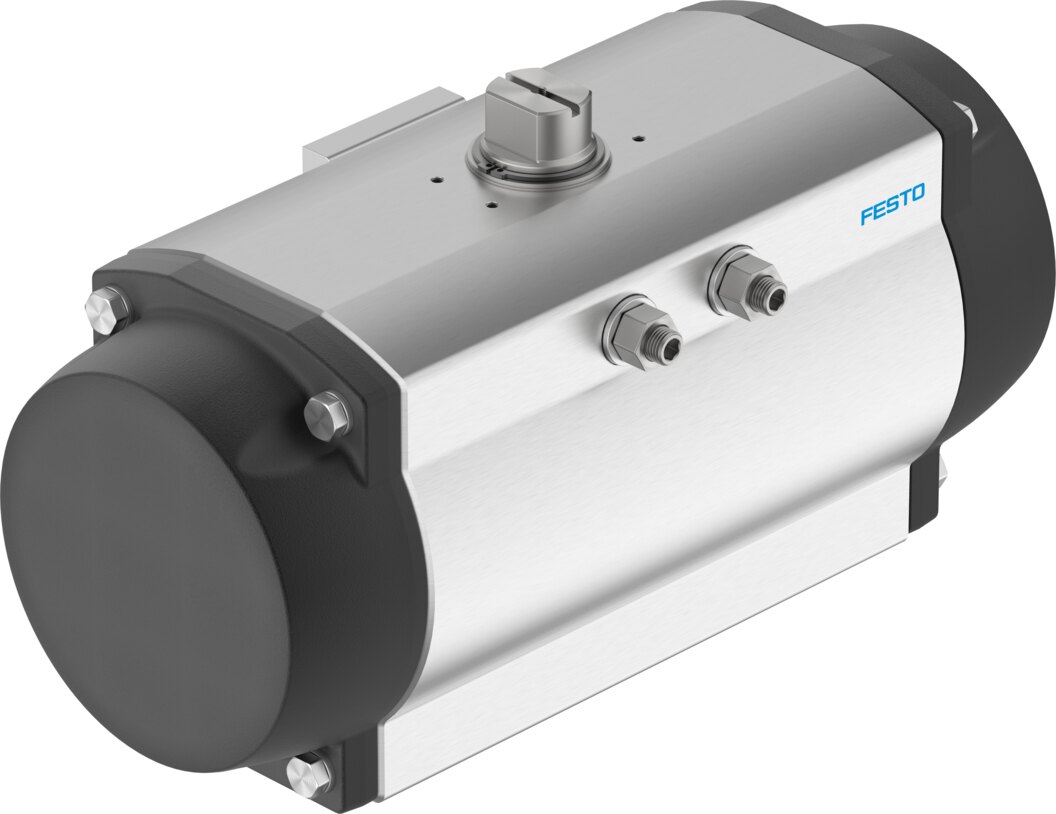

The Festo DFPD-900-RP-90-RS40-F1012 is a single-acting rack-and-pinion quarter turn actuator for valves with top flange F1012 to ISO 5211. Without compressed air the spring returns the valve to its home position, swivel angle 90°.
Net
excl. VAT
€1,000.94
Item
FES-610343
Manufacturer no.
DFPD-900-RP-90-RS40-F1012
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For ball valves and butterfly valves with top flange F1012: the size 900 DFPD works single-acting via rack and pinion. Torque values and spring set for this version are given in the Festo data sheet for part number 610343.
Benefits
- Valve interface with flange pattern F1012 to ISO 5211
- Rack-and-pinion drive in size 900, swivel angle 90°
- Single-acting with spring return to the home position, closes to the right
- Weight according to price list 31 kg
Technical data
| Order code | DFPD-900-RP-90-RS40-F1012 |
|---|---|
| Festo part number | 610343 |
| Series | DFPD |
| Size of valve actuator | 900 |
| Design | rack and pinion |
| Swivel angle | 90° |
| Mode of operation | single-acting |
| Closing direction | closes to the right |
| Flange hole pattern | F1012 |
| Fitting connection conforms to standard | ISO 5211 |
| Weight | 31 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFPD-900-RP-90-RS40-F1012 |
| Zolltarifnummer | 84123900 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Function | single-acting |
| Actuation type | pneumatic |
| Norm | ISO 5211 |
