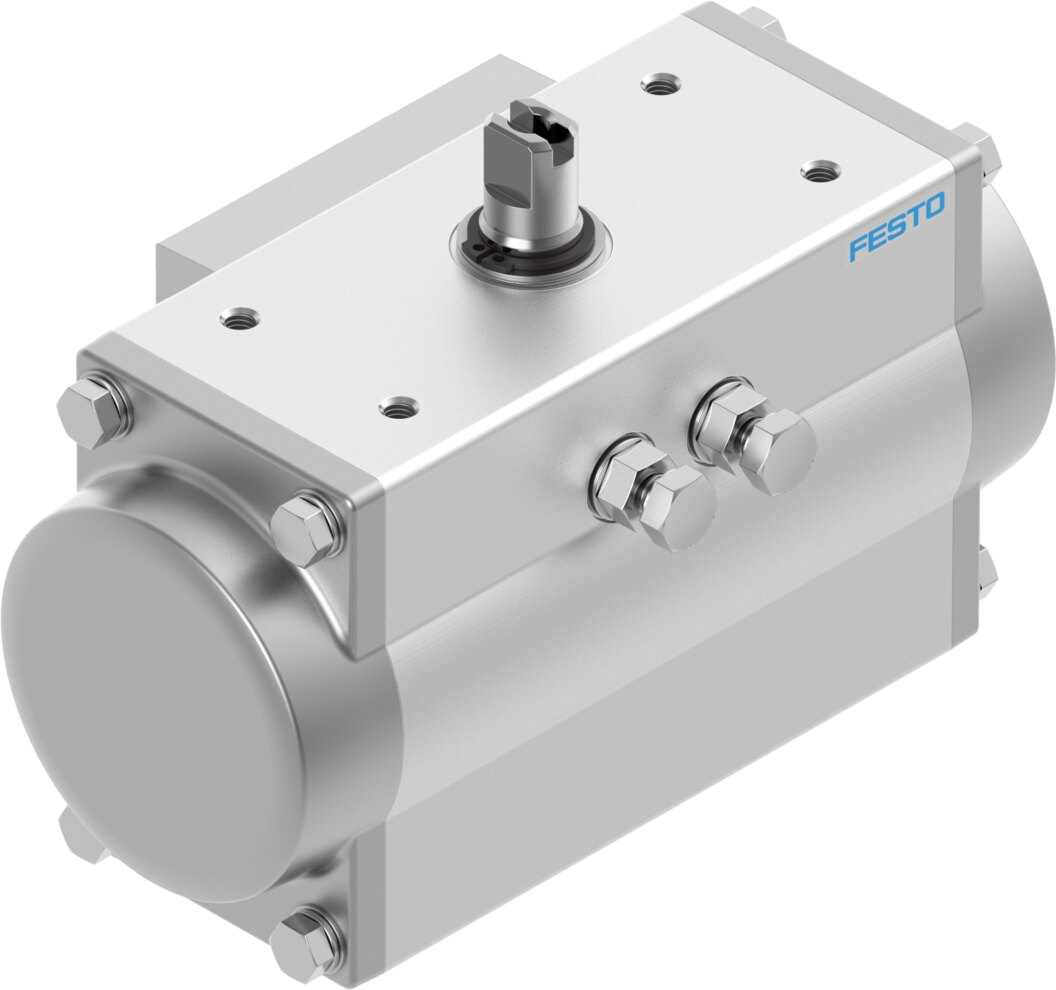

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Quarter turn actuator, single-acting, spring return, size 900, flange F14 DFPD-900-RP-90-LS60-F14 - Festo 610144

Name: Quarter turn actuator, single-acting, spring return, size 900, flange F14 DFPD-900-RP-90-LS60-F14 - Festo 610144
Brand: Festo
SKU: FES-610144
Price: 1084.32 EUR
Availability: InStock

Festo ✓ Original product Brand new

The Festo DFPD-900-RP-90-LS60-F14 is a single-acting rack-and-pinion quarter turn actuator for valves with top flange F14 to ISO 5211. Without compressed air the spring returns the valve to its home position, swivel angle 90°.

Net

€1,084.32

excl. VAT

Item FES-610144

Manufacturer no. DFPD-900-RP-90-LS60-F14

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The DFPD-900-RP-90-LS60-F14 operates quarter-turn valves such as ball valves and butterfly valves with top flange F14. Torque values and spring set for this version are given in the Festo data sheet for part number 610144.

Benefits

Valve interface with flange pattern F14 to ISO 5211
Rack-and-pinion drive in size 900, swivel angle 90°
Single-acting with spring return to the home position
Weight according to price list 32 kg

Technical data

Order code	DFPD-900-RP-90-LS60-F14
Festo part number	610144
Series	DFPD
Size of valve actuator	900
Design	rack and pinion
Swivel angle	90°
Mode of operation	single-acting
Flange hole pattern	F14
Fitting connection conforms to standard	ISO 5211
Weight	32 kg
Manufacturer	Festo
Hersteller-Nr	DFPD-900-RP-90-LS60-F14
Zolltarifnummer	84123900
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Function	single-acting
Actuation type	pneumatic
Norm	ISO 5211
