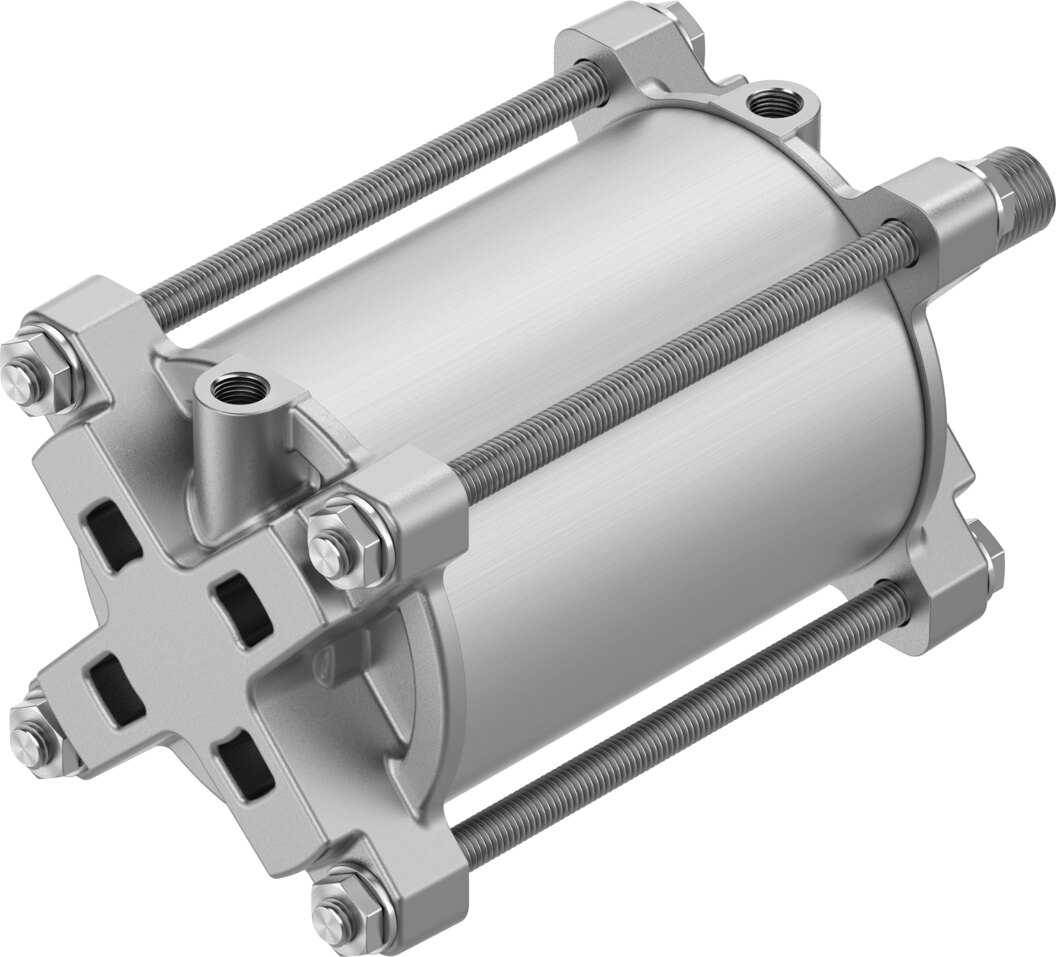

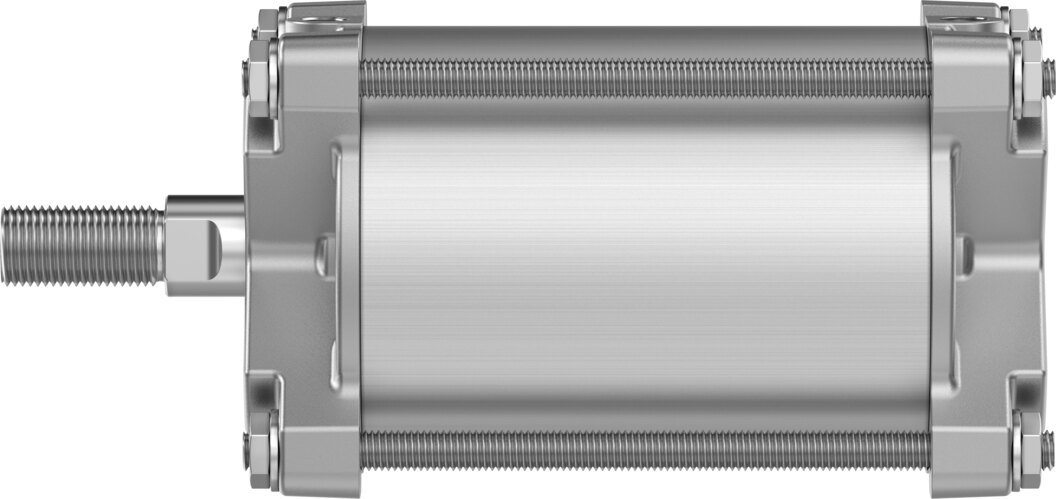

Linear drive DFPC-80-65-D - Festo 8110817
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size of valve actuator | 80 |
|---|---|
| Flange hole pattern | F07 |
| Stroke | 65 mm |
| Piston diameter | 80 mm |
| Fitting connection conforms to standard | ISO 5210 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Design | Piston, Piston rod, Tie rod 1, Cylinder barrel |
| Position detection | Via proximity switch |
| Operating pressure | 2 ... 8 bar |
| Nominal operating pressure | 6 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -20 ... 80 °C |
| Impact energy in end positions | 1.4 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 2827 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 3016 N |
| Air consumption on return stroke per 10 mm | 0.33 l |
| Air consumption on advance stroke per 10 mm | 0.352 l |
| Moving mass for 0 mm stroke | 451 g |
| Additional moving mass per 10 mm stroke | 24.8 g |
| Product weight | 1630 g |
| Basic weight for 0 mm stroke | 1230.3 g |
| Additional weight per 10 mm stroke | 61.8 g |
| Type of mounting | on flange according to ISO 5210, With spacer bolt |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS compliant |
| Material cover | Gravity die-cast aluminium |
| Material piston rod | High-alloy stainless steel |
| Material piston rod wiper | TPE-U(PU) |
| Material nut | High-alloy stainless steel |
| Material static seals | NBR |
| Material tie rod | High-alloy stainless steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Weight | 1.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFPC-80-65-D |
| EAN | 4052568460594 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
