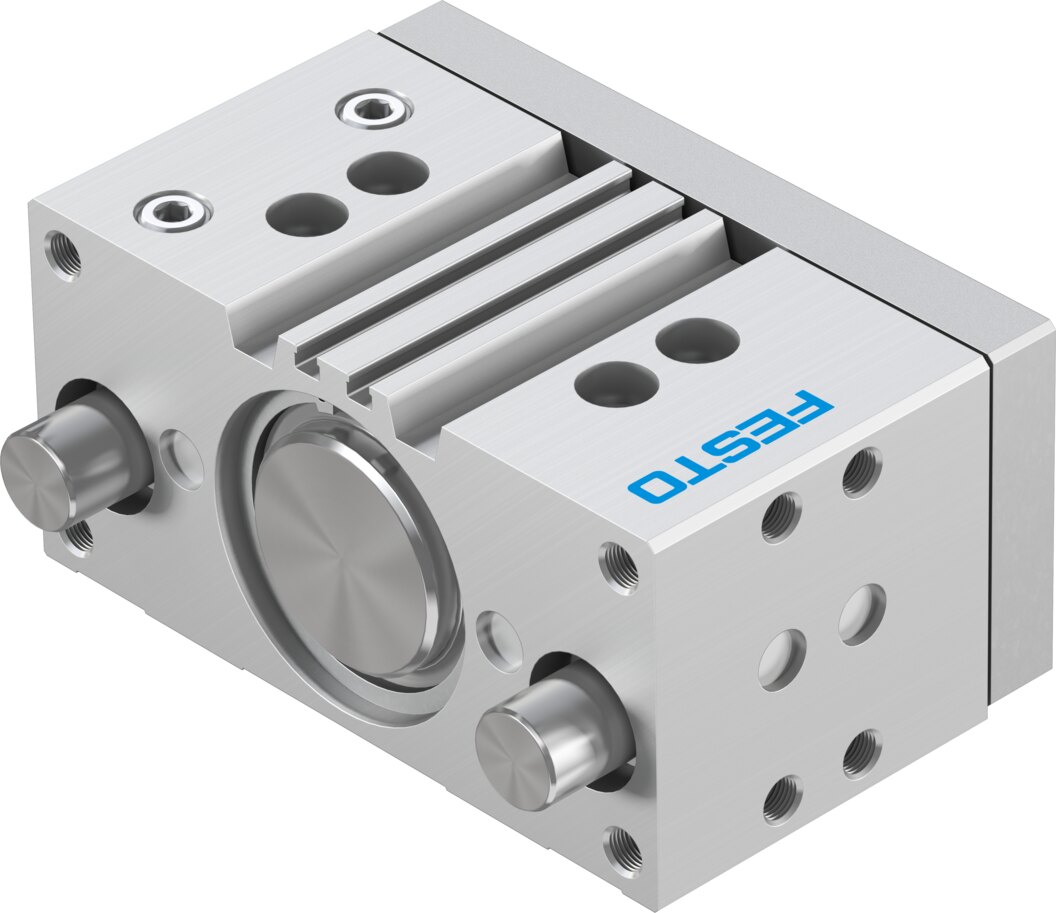

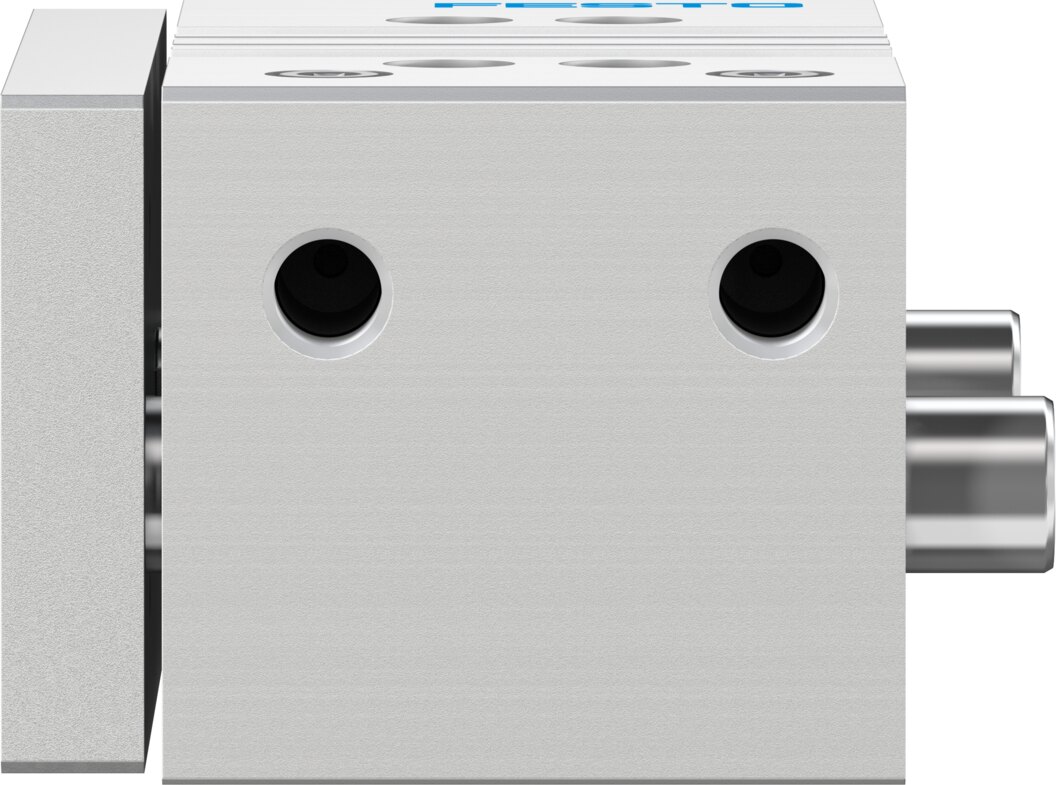

Guided drive with ball bearing guide Ø 63 mm 25 mm stroke DFM-63-25-P-A-KF-F1A - Festo 8118954

Where a bare piston rod cannot take side loads, the DFM-63-25-P-A-KF-F1A guided drive steps in with 25 mm stroke and 1870 N advancing force at 6 bar.

Benefits

• Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 1487 N
• Force: 1870 N advance and 1750 N return at 6 bar (theoretical)
• Cushioning: elastic cushioning rings at both ends, impact energy up to 1.3 J
• Moments: Mx up to 92.97 Nm, My/Mz up to 31.98 Nm
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Speed: up to 0.6 m/s

Applications

Use the DFM-63-25-P-A-KF-F1A where smooth travel and accurate guidance matter for lifting, joining or ejecting parts. The DFM-63-25-P-A-KF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 63 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
