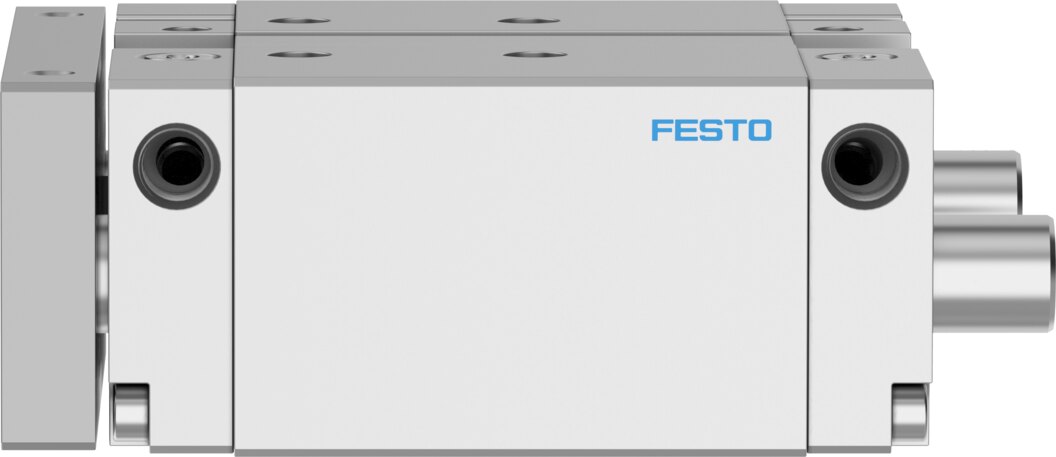

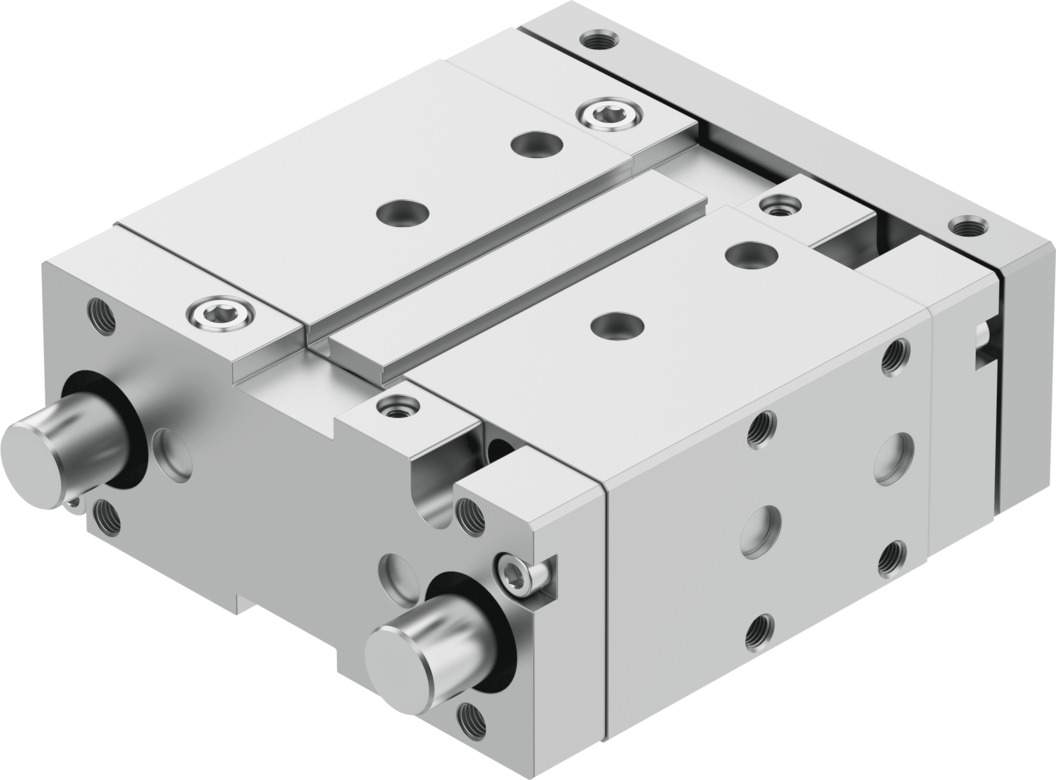

Guided drive with plain-bearing guide Ø 50 mm 50 mm stroke DFM-50-50-B-PPV-A-GF - Festo 588730

At 6 bar the DFM-50-50-B-PPV-A-GF turns a theoretical 1178 N into a guided linear motion over 50 mm, with a 50 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 1178 N advance and 1057 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Cushioning: pneumatic end-position cushioning, adjustable at both ends
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

The DFM-50-50-B-PPV-A-GF suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-50-50-B-PPV-A-GF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 50 mm version offers cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.
