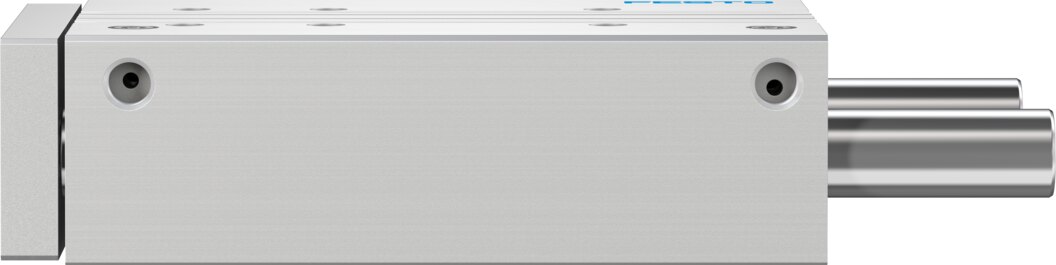

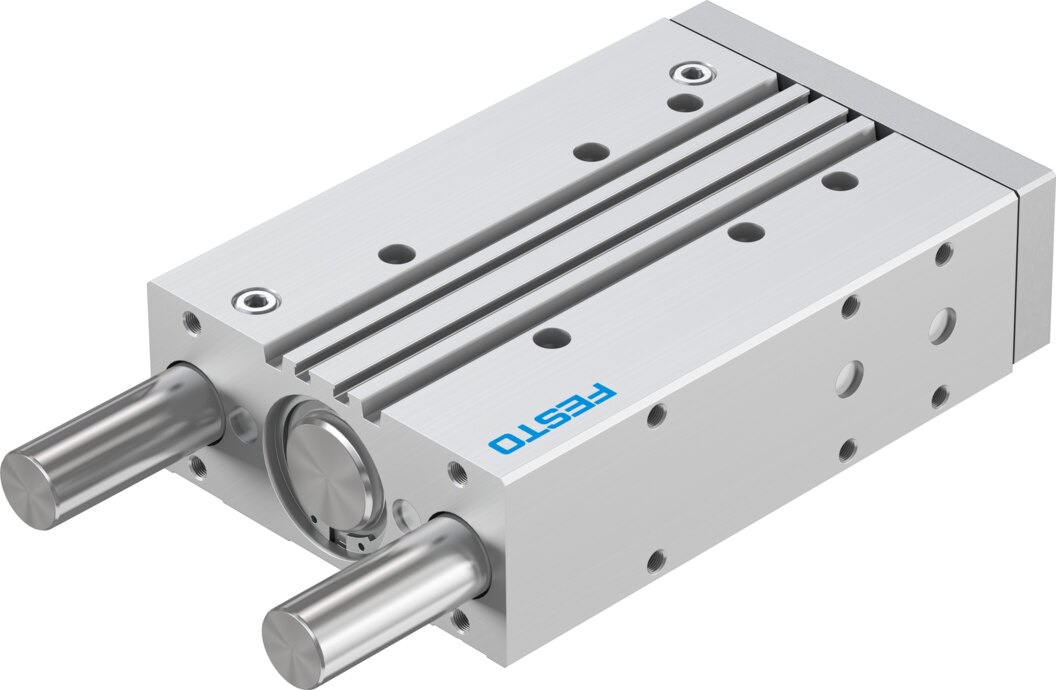

Guided drive with plain-bearing guide Ø 50 mm 160 mm stroke DFM-50-160-P-A-GF-F1A - Festo 8118932
With 160 mm stroke and a 50 mm piston, the DFM-50-160-P-A-GF-F1A guided drive handles lifting and pushing tasks on a plain-bearing guide. At 6 bar it delivers a theoretical 1178 N advancing and 1057 N retracting. The guide takes transverse forces up to 1533 N and Mx moments up to 84.33 Nm directly.
Net
excl. VAT
€574.31
Item
FES-8118932
Manufacturer no.
DFM-50-160-P-A-GF-F1A
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At 6 bar the DFM-50-160-P-A-GF-F1A turns a theoretical 1178 N into a guided linear motion over 160 mm, with a 50 mm piston.
Benefits
- Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1533 N
- Force: 1178 N advance and 1057 N return at 6 bar (theoretical)
- Speed: up to 0.6 m/s
- Piston rod: high-alloy stainless steel
- Battery production: reduced Cu/Zn/Ni content (F1a)
- Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
Applications
Typical uses of the DFM-50-160-P-A-GF-F1A are ejecting, separating and lifting on conveyor lines and in fixtures. The DFM-50-160-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 160 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
Technical data
| Type | DFM-50-160-P-A-GF-F1A |
|---|---|
| Festo part number | 8118932 |
| Load centre of gravity to yoke plate xs | 50 mm |
| Stroke | 160 mm |
| Piston diameter | 50 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Variants | no copper, zinc or nickel as main constituent (exceptions: nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical connectors, coils) |
| Operating pressure | 1 to 10 bar |
| Maximum speed | 0.6 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (ISO 14644-14) | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 1 J |
| Maximum force Fy | 1533 N |
| Maximum force Fy static | 1533 N |
| Maximum force Fz | 1533 N |
| Maximum force Fz static | 1533 N |
| Maximum moment Mx | 84.33 Nm |
| Maximum moment Mx static | 84.33 Nm |
| Maximum moment My | 69.77 Nm |
| Maximum moment My static | 69.77 Nm |
| Maximum moment Mz | 69.77 Nm |
| Maximum moment Mz static | 69.77 Nm |
| Maximum permissible torque Mx (stroke-dependent) | 12.43 Nm |
| Maximum effective load at distance xs (stroke-dependent) | 200 N |
| Theoretical force at 6 bar, return stroke | 1057 N |
| Theoretical force at 6 bar, advance stroke | 1178 N |
| Moving mass | 3569 g |
| Product weight | 7205 g |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Weight | 7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFM-50-160-P-A-GF-F1A |
| EAN | 4052568570309 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Gleitführung |
| Material | Aluminium |
| Thread | G 1/4 |
| Piston Ø [mm] | 50 |
| Stroke [mm] | 160 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | double-acting |
| Series | DFM |
| Bore (mm) | 50 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
