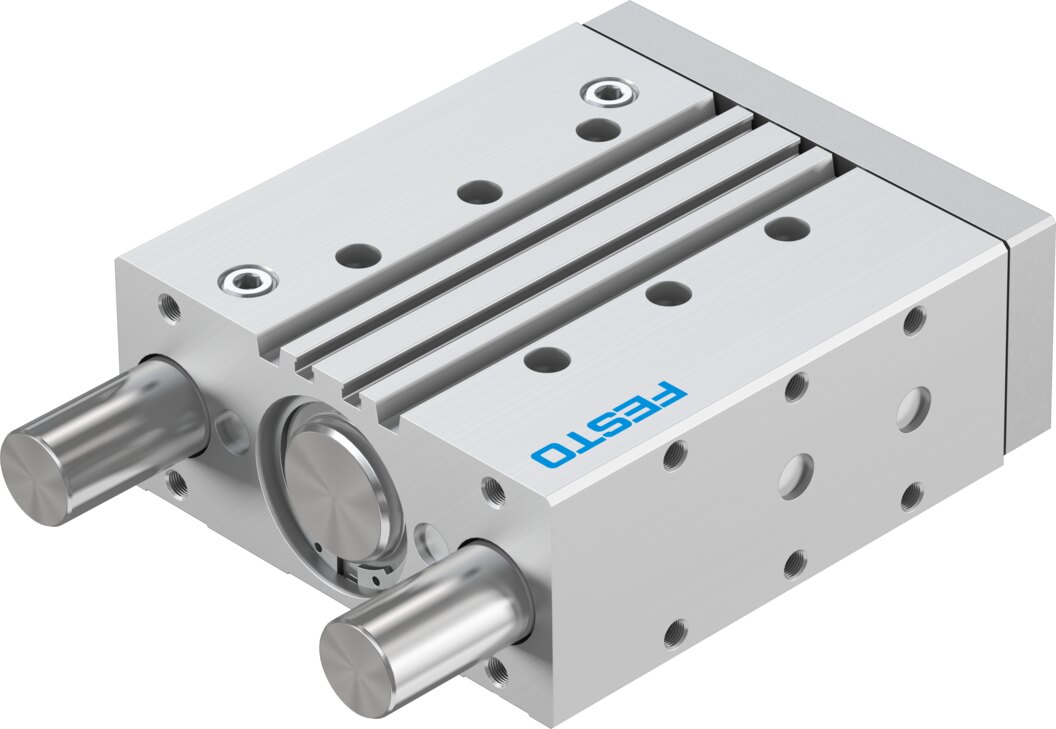

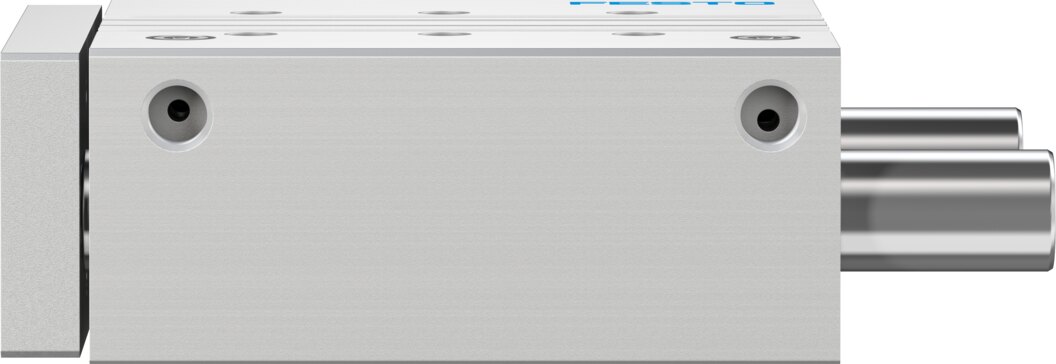

Guided drive with plain-bearing guide Ø 50 mm 100 mm stroke DFM-50-100-P-A-GF-F1A - Festo 8118930

50 mm piston, 100 mm stroke and 1178 N advancing force at 6 bar: the DFM-50-100-P-A-GF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1533 N
• Force: 1178 N advance and 1057 N return at 6 bar (theoretical)
• Speed: up to 0.6 m/s
• Moments: Mx up to 84.33 Nm, My/Mz up to 54.43 Nm
• Cushioning: elastic cushioning rings at both ends, impact energy up to 1 J
• Piston rod: high-alloy stainless steel

Applications

The DFM-50-100-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-50-100-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 50 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
