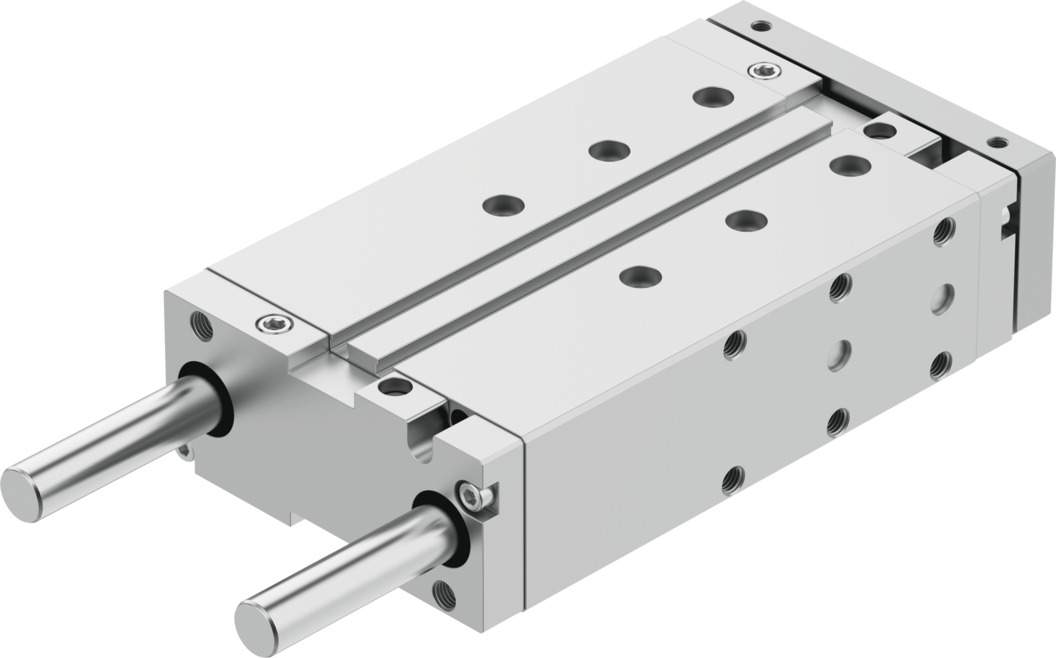

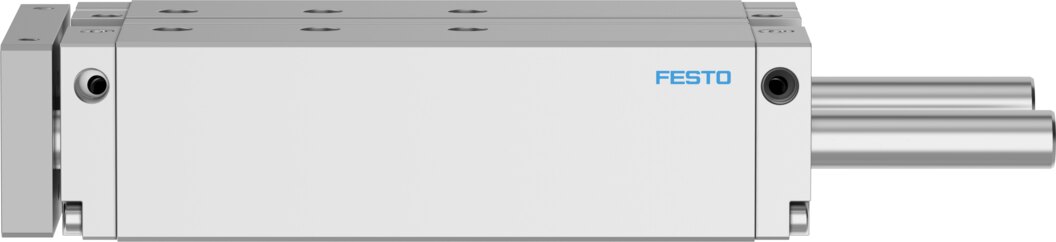

The Festo DFM-40-125-B-PPV-A-KF carries the load on guide rods with recirculating ball bearing guide and a yoke plate, with a 40 mm piston and 125 mm stroke. Theoretical force at 6 bar: 754 N advance, 686 N return. Pneumatic end-position cushioning is adjustable at both ends.

Net

€736.54

excl. VAT

Item FES-8161447

Manufacturer no. DFM-40-125-B-PPV-A-KF

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

40 mm piston, 125 mm stroke and 754 N advancing force at 6 bar: the DFM-40-125-B-PPV-A-KF guided drive combines drive and guide in one ready-to-fit unit.

Benefits

Recirculating ball bearing guide: guide rods in recirculating ball bushings
Force: 754 N advance and 686 N return at 6 bar (theoretical)
Piston rod: high-alloy stainless steel
Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
Cushioning: pneumatic end-position cushioning, adjustable at both ends

Applications

Typical jobs for the DFM-40-125-B-PPV-A-KF are precise lifting, pushing and positioning in assembly and handling systems. The DFM-40-125-B-PPV-A-KF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. Documented for this 125 mm stroke version: cleanroom class 6 to ISO 14644-1.

Technical data

Type	DFM-40-125-B-PPV-A-KF
Festo part number	8161447
Stroke	125 mm
Piston diameter	40 mm
Operating mode, drive unit	Yoke
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any
Guide	Recirculating ball bearing guide
Design	Guidance
Position detection	Via proximity switch
Operating pressure	1.5 to 10 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)	Class 6 according to ISO 14644-1
Ambient temperature	-5 to 60 °C
Impact energy in end positions	0.7 J
Theoretical force at 6 bar, return stroke	686 N
Theoretical force at 6 bar, advance stroke	754 N
Alternative connections	See product drawing
Pneumatic connection	G1/8
Note on materials	RoHS compliant
Material cover	Wrought aluminium alloy
Material seals	NBR
Material housing	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel
Weight	4.1 kg
