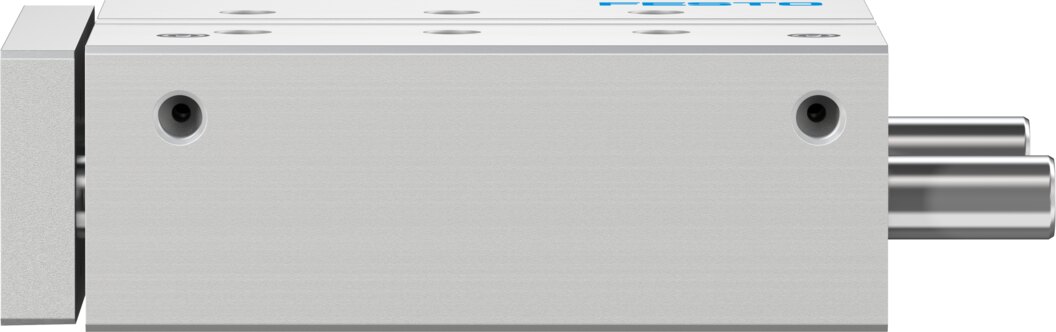

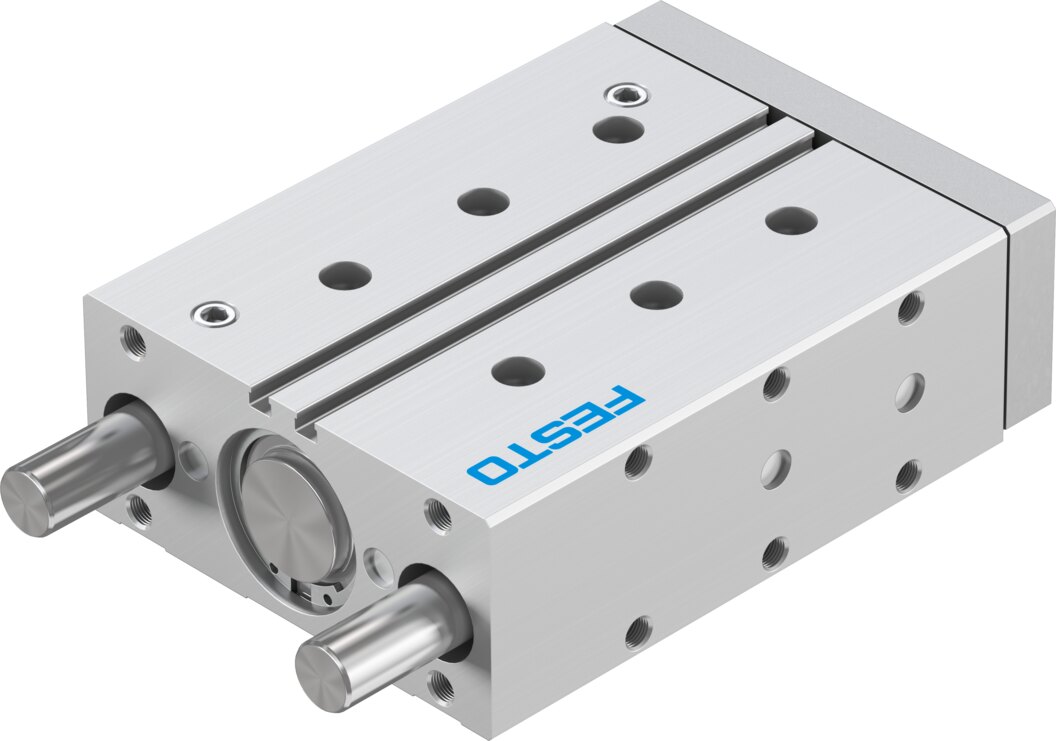

Guided drive with ball bearing guide Ø 40 mm 100 mm stroke DFM-40-100-P-A-KF-F1A - Festo 8118917

Where a bare piston rod cannot take side loads, the DFM-40-100-P-A-KF-F1A guided drive steps in with 100 mm stroke and 754 N advancing force at 6 bar.

Benefits

• Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 1130 N
• Force: 754 N advance and 686 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Moments: Mx up to 49.74 Nm, My/Mz up to 28.83 Nm
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.7 J
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

Typical jobs for the DFM-40-100-P-A-KF-F1A are precise lifting, pushing and positioning in assembly and handling systems. The DFM-40-100-P-A-KF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 40 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
