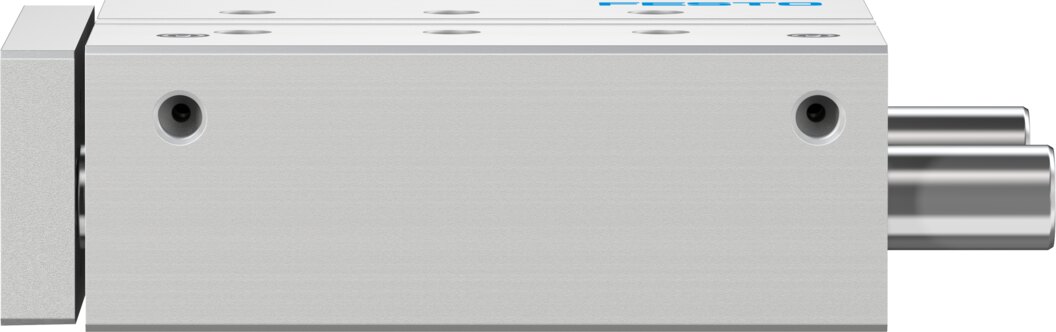

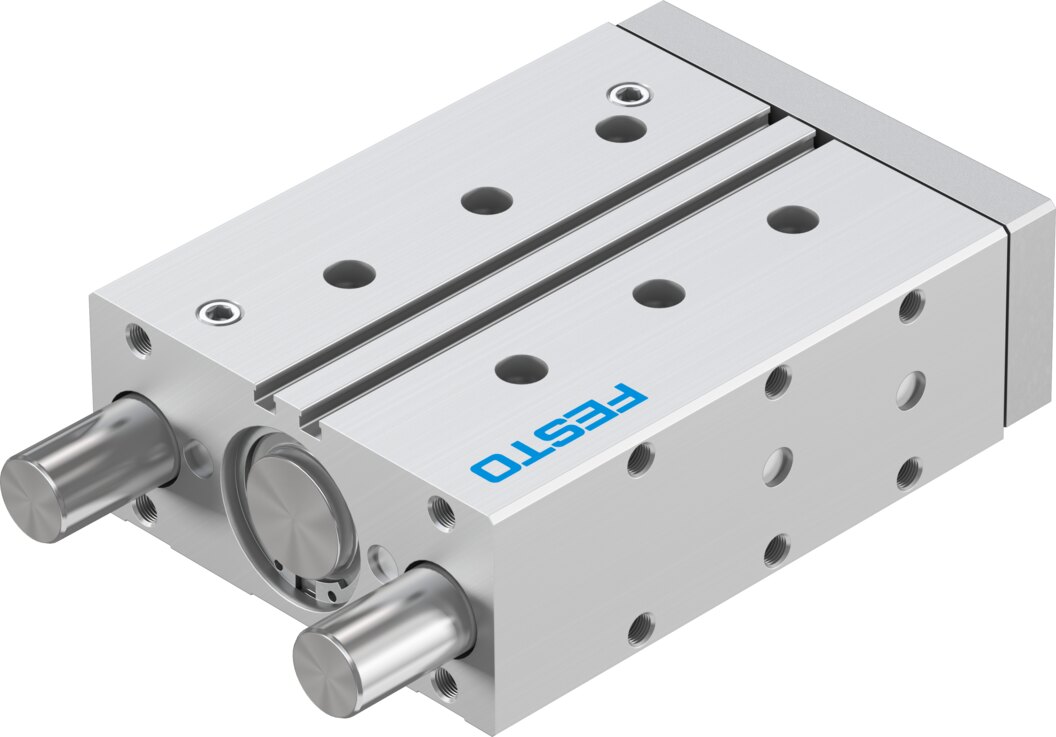

Guided drive with plain-bearing guide Ø 40 mm 100 mm stroke DFM-40-100-P-A-GF-F1A - Festo 8118910

Where a bare piston rod cannot take side loads, the DFM-40-100-P-A-GF-F1A guided drive steps in with 100 mm stroke and 754 N advancing force at 6 bar.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1227 N
• Force: 754 N advance and 686 N return at 6 bar (theoretical)
• Moments: Mx up to 53.97 Nm, My/Mz up to 35.57 Nm
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.7 J
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Speed: up to 0.8 m/s

Applications

Typical uses of the DFM-40-100-P-A-GF-F1A are ejecting, separating and lifting on conveyor lines and in fixtures. Operating medium for the DFM-40-100-P-A-GF-F1A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. For electronics, precision or battery production, this 40 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
