Führungszylinder DFM-40-100-B-PPV-A-KF - Festo 8165514
Führungszylinder DFM-40-100-B-PPV-A-KF - Festo 8165514 Führungszylinder DFM-40-100-B-PPV-A-KF - Festo 8165514 Führungszylinder DFM-40-100-B-PPV-A-KF - Festo 8165514

Images are examples, some edited with AI. The technical data are authoritative. AI notice

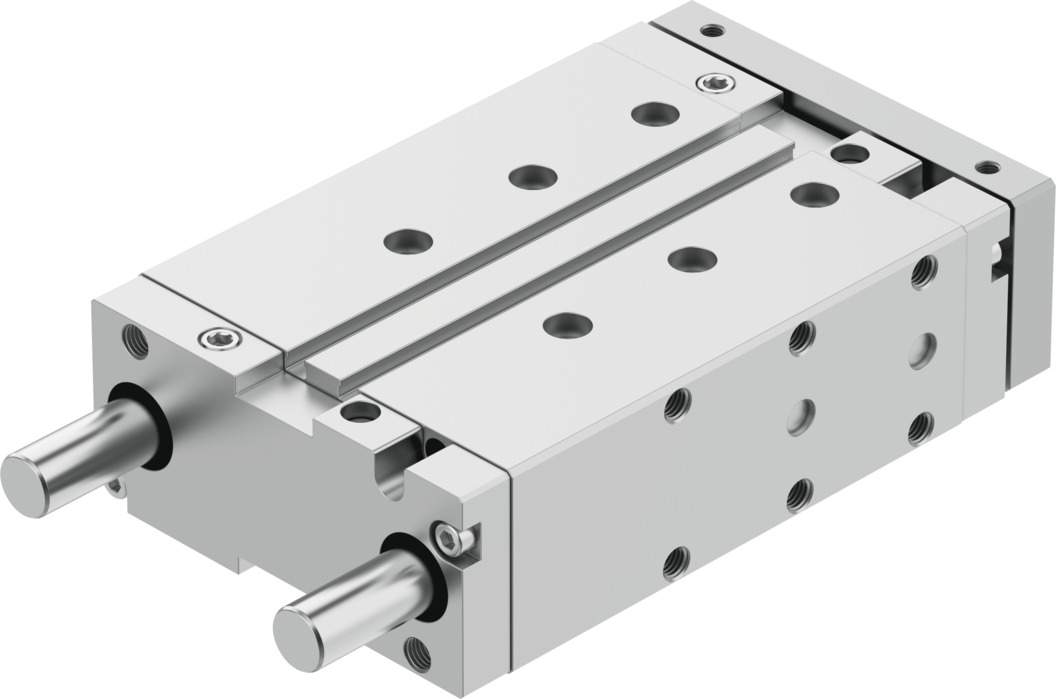

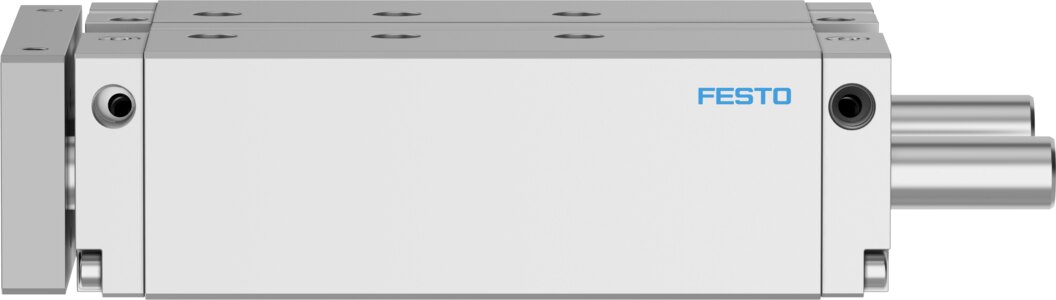

Guided drive with ball bearing guide Ø 40 mm 100 mm stroke DFM-40-100-B-PPV-A-KF - Festo 8165514

Festo ✓ Original product Brand new

The Festo DFM-40-100-B-PPV-A-KF carries the load on guide rods with recirculating ball bearing guide and a yoke plate, with a 40 mm piston and 100 mm stroke. At 6 bar it delivers a theoretical 754 N advancing and 686 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net
€681.90
excl. VAT
Item FES-8165514
Manufacturer no. DFM-40-100-B-PPV-A-KF
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where a bare piston rod cannot take side loads, the DFM-40-100-B-PPV-A-KF guided drive steps in with 100 mm stroke and 754 N advancing force at 6 bar.

Benefits

  • Recirculating ball bearing guide: guide rods in recirculating ball bushings
  • Force: 754 N advance and 686 N return at 6 bar (theoretical)
  • Piston rod: high-alloy stainless steel
  • Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
  • Cushioning: pneumatic end-position cushioning, adjustable at both ends

Applications

Typical jobs for the DFM-40-100-B-PPV-A-KF are precise lifting, pushing and positioning in assembly and handling systems. The DFM-40-100-B-PPV-A-KF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 40 mm version offers cleanroom class 6 to ISO 14644-1.

Technical data

TypeDFM-40-100-B-PPV-A-KF
Festo part number8165514
Stroke100 mm
Piston diameter40 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Position detectionVia proximity switch
Operating pressure1.5 to 10 bar
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)Class 6 according to ISO 14644-1
Ambient temperature-5 to 60 °C
Impact energy in end positions0.7 J
Theoretical force at 6 bar, return stroke686 N
Theoretical force at 6 bar, advance stroke754 N
Alternative connectionsSee product drawing
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Weight3.6 kg
ManufacturerFesto
Hersteller-NrDFM-40-100-B-PPV-A-KF
EAN4052568596118
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungKugelumlaufführung
MaterialAluminium
ThreadG 1/8
Piston Ø [mm]40
Stroke [mm]100
Seal materialNBR
MediumCompressed air
Functiondouble-acting
SeriesDFM
Bore (mm)40
Betriebsdruck max [bar]10
Temperaturbereich-5-60 °C
Temperature (max.)60
