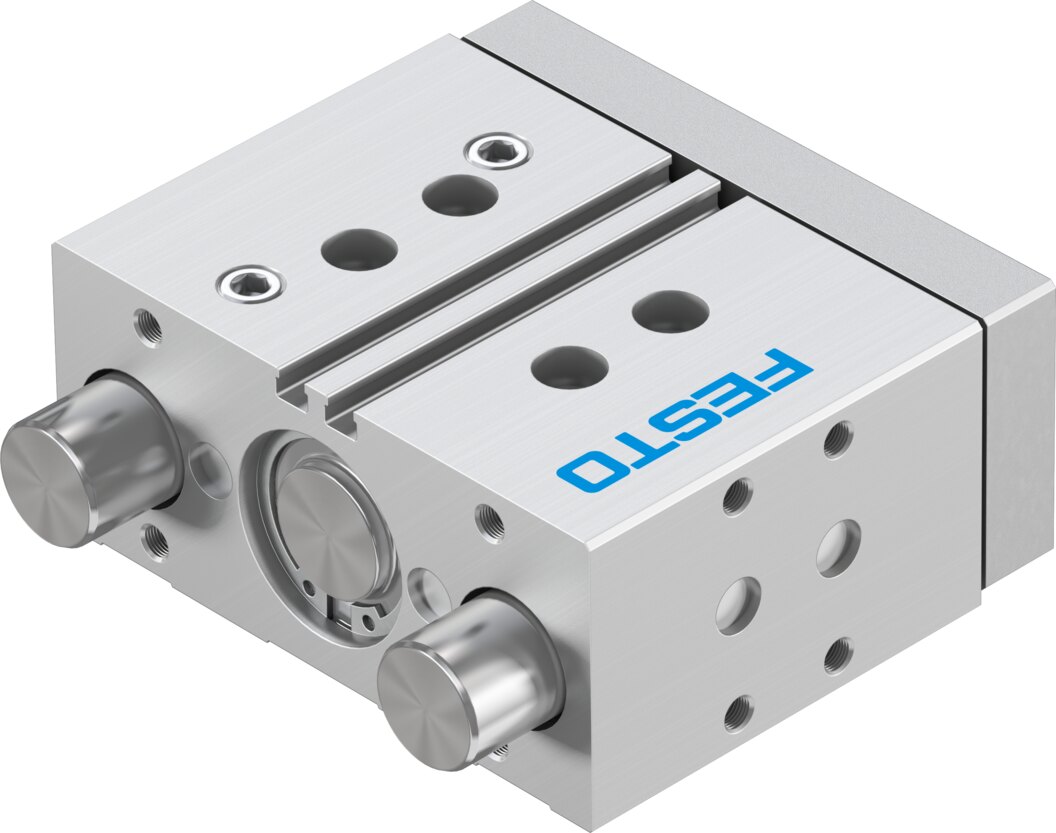

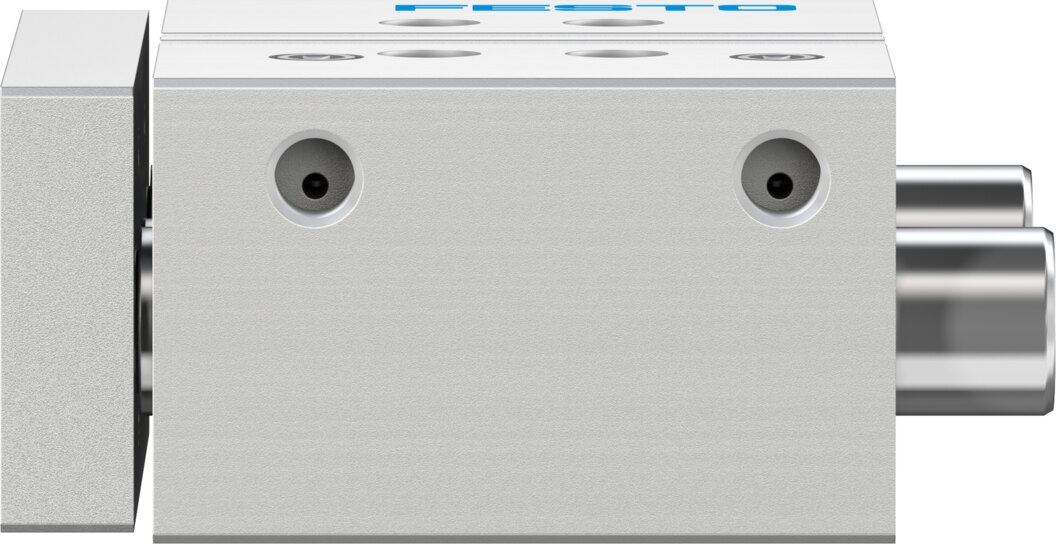

Guided drive with plain-bearing guide Ø 32 mm 30 mm stroke DFM-32-30-P-A-GF-F1A - Festo 8118883

At 6 bar the DFM-32-30-P-A-GF-F1A turns a theoretical 482 N into a guided linear motion over 30 mm, with a 32 mm piston.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 1227 N
• Force: 482 N advance and 415 N return at 6 bar (theoretical)
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Piston rod: high-alloy stainless steel
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.4 J

Applications

Typical uses of the DFM-32-30-P-A-GF-F1A are ejecting, separating and lifting on conveyor lines and in fixtures. Operating medium for the DFM-32-30-P-A-GF-F1A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. For electronics, precision or battery production, this 32 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
