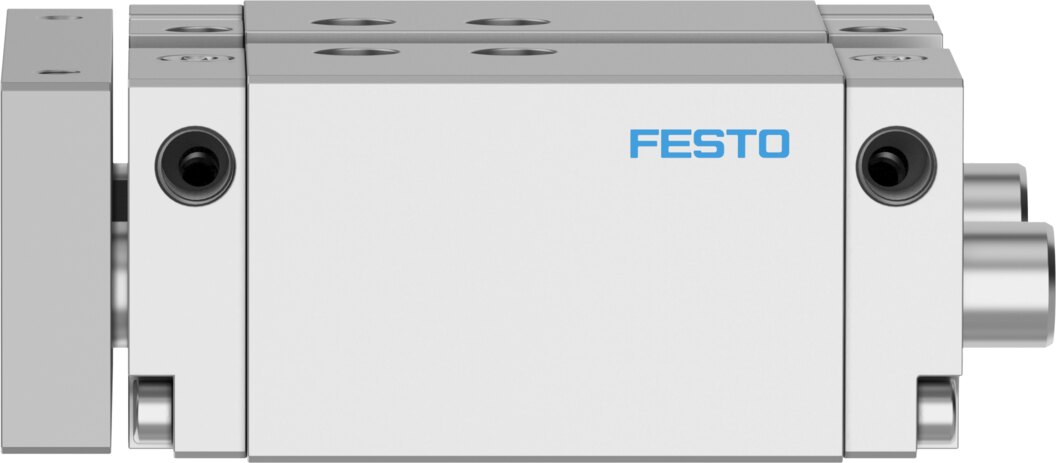

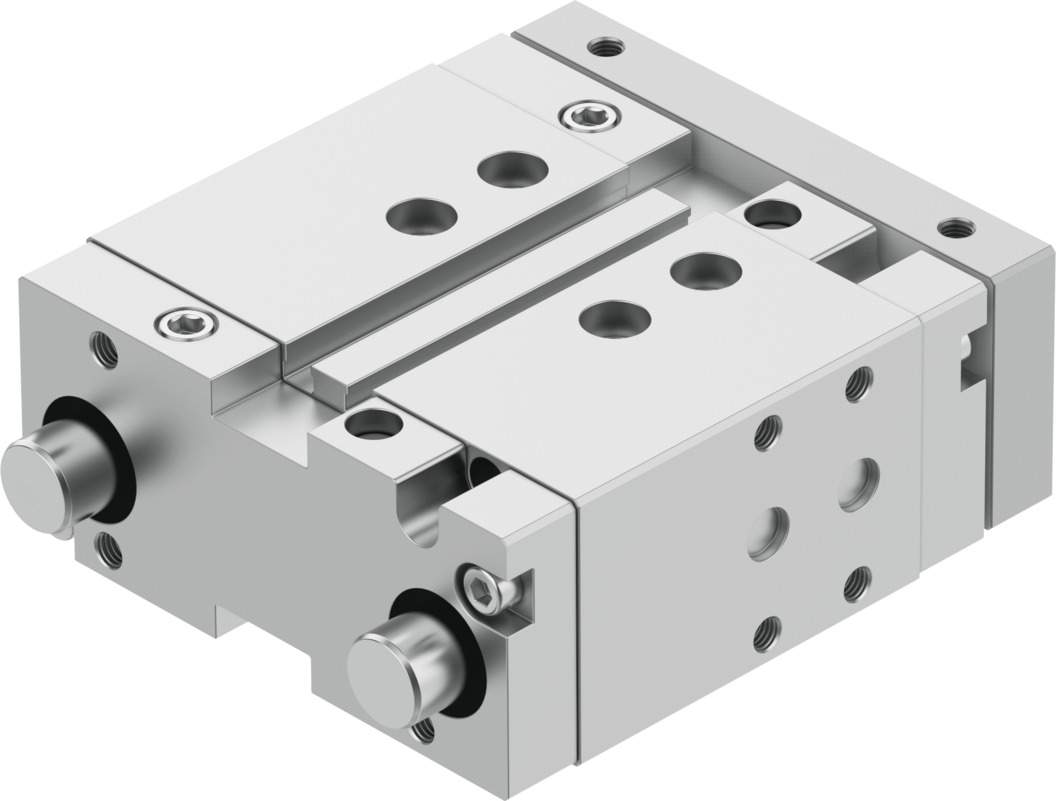

Guided drive with plain-bearing guide Ø 32 mm 30 mm stroke DFM-32-30-B-PPV-A-GF - Festo 8161434

Where a bare piston rod cannot take side loads, the DFM-32-30-B-PPV-A-GF guided drive steps in with 30 mm stroke and 482 N advancing force at 6 bar.

Benefits

• Plain-bearing guide: guide rods in plain bearings
• Force: 482 N advance and 415 N return at 6 bar (theoretical)
• Piston rod: high-alloy stainless steel
• Cushioning: pneumatic end-position cushioning, adjustable at both ends
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

The DFM-32-30-B-PPV-A-GF suits lifting, stopping and pushing tasks in conveyor systems and fixture building. Operating medium for the DFM-32-30-B-PPV-A-GF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. Documented for this 30 mm stroke version: cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.
