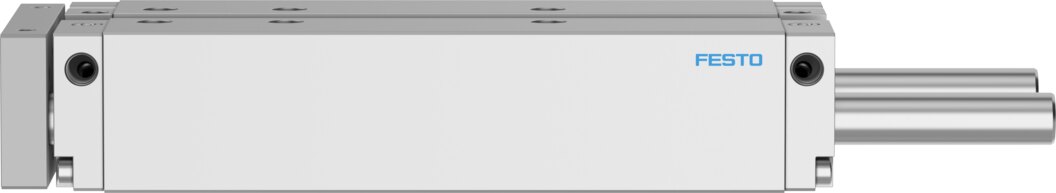

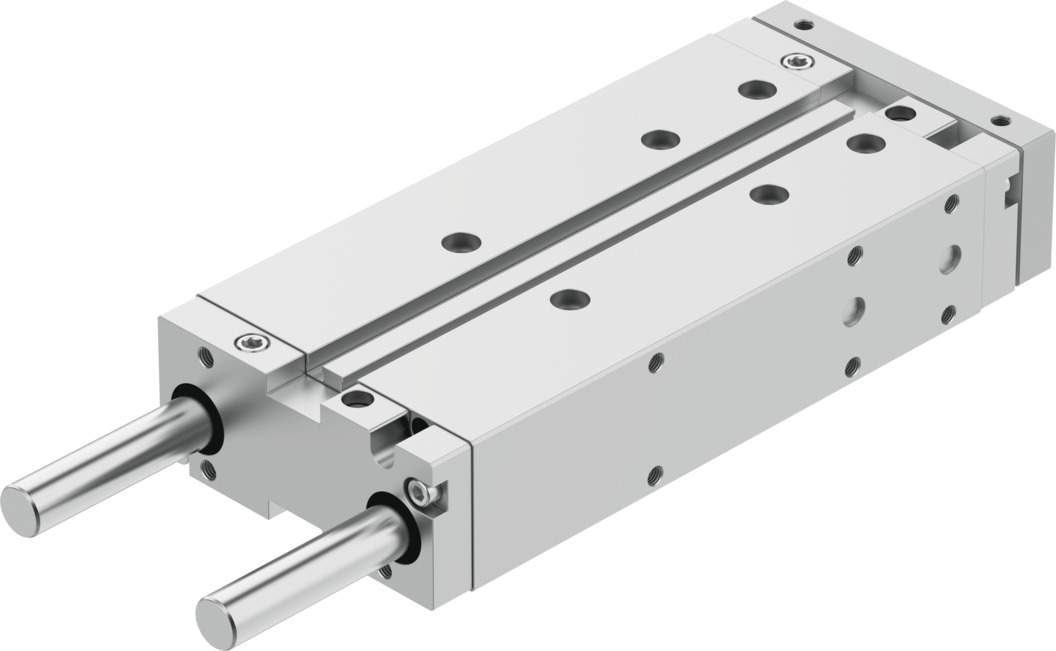

Guided drive with ball bearing guide Ø 32 mm 160 mm stroke DFM-32-160-B-PPV-A-KF - Festo 609356

Name: Guided drive with ball bearing guide Ø 32 mm 160 mm stroke DFM-32-160-B-PPV-A-KF - Festo 609356
Brand: Festo
SKU: FES-609356
Price: 738.24 EUR
Availability: InStock

Festo ✓ Original product Brand new

The Festo DFM-32-160-B-PPV-A-KF carries the load on guide rods with recirculating ball bearing guide and a yoke plate, with a 32 mm piston and 160 mm stroke. At 6 bar it delivers a theoretical 482 N advancing and 415 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net

€738.24

excl. VAT

Item FES-609356

Manufacturer no. DFM-32-160-B-PPV-A-KF

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At 6 bar the DFM-32-160-B-PPV-A-KF turns a theoretical 482 N into a guided linear motion over 160 mm, with a 32 mm piston.

Benefits

Recirculating ball bearing guide: guide rods in recirculating ball bushings
Force: 482 N advance and 415 N return at 6 bar (theoretical)
Piston rod: high-alloy stainless steel
Cushioning: pneumatic end-position cushioning, adjustable at both ends
Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

Use the DFM-32-160-B-PPV-A-KF where smooth travel and accurate guidance matter for lifting, joining or ejecting parts. The DFM-32-160-B-PPV-A-KF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 32 mm version offers cleanroom class 6 to ISO 14644-1.

Technical data

Type	DFM-32-160-B-PPV-A-KF
Festo part number	609356
Stroke	160 mm
Piston diameter	32 mm
Operating mode, drive unit	Yoke
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any
Guide	Recirculating ball bearing guide
Design	Guidance
Position detection	Via proximity switch
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)	Class 6 according to ISO 14644-1
Ambient temperature	-5 to 60 °C
Impact energy in end positions	0.4 J
Theoretical force at 6 bar, return stroke	415 N
Theoretical force at 6 bar, advance stroke	482 N
Alternative connections	See product drawing
Pneumatic connection	G1/8
Material cover	Wrought aluminium alloy
Material seals	NBR
Material housing	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel
Weight	3.9 kg
Manufacturer	Festo
Hersteller-Nr	DFM-32-160-B-PPV-A-KF
EAN	4052568411749
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	Kugelumlaufführung
Material	Aluminium
Thread	G 1/8
Piston Ø [mm]	32
Stroke [mm]	160
Seal material	NBR
Medium	Compressed air
Function	double-acting
Series	DFM
Bore (mm)	32
Temperaturbereich	-5-60 °C
Temperature (max.)	60
