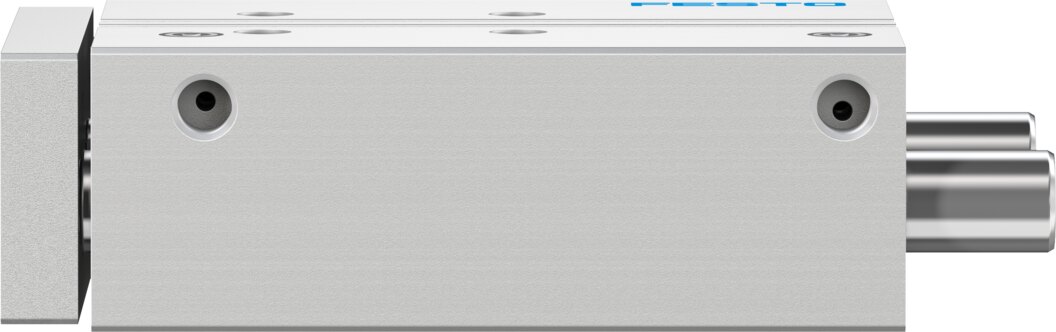

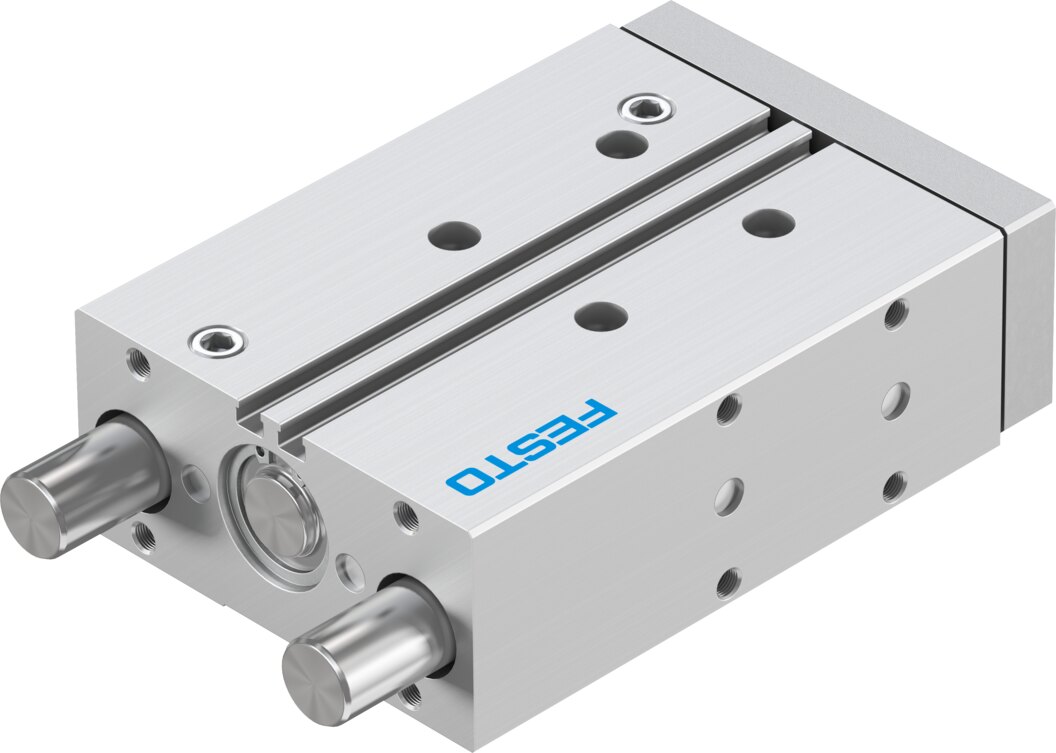

Guided drive with plain-bearing guide Ø 25 mm 80 mm stroke DFM-25-80-P-A-GF-F1A - Festo 8118867

25 mm piston, 80 mm stroke and 295 N advancing force at 6 bar: the DFM-25-80-P-A-GF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 810.7 N
• Force: 295 N advance and 247 N return at 6 bar (theoretical)
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Speed: up to 0.8 m/s
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Cushioning: elastic cushioning rings at both ends, impact energy up to 0.3 J

Applications

The DFM-25-80-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. Operating medium for the DFM-25-80-P-A-GF-F1A is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -20 to 80 °C, any mounting position. Documented for this 80 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
