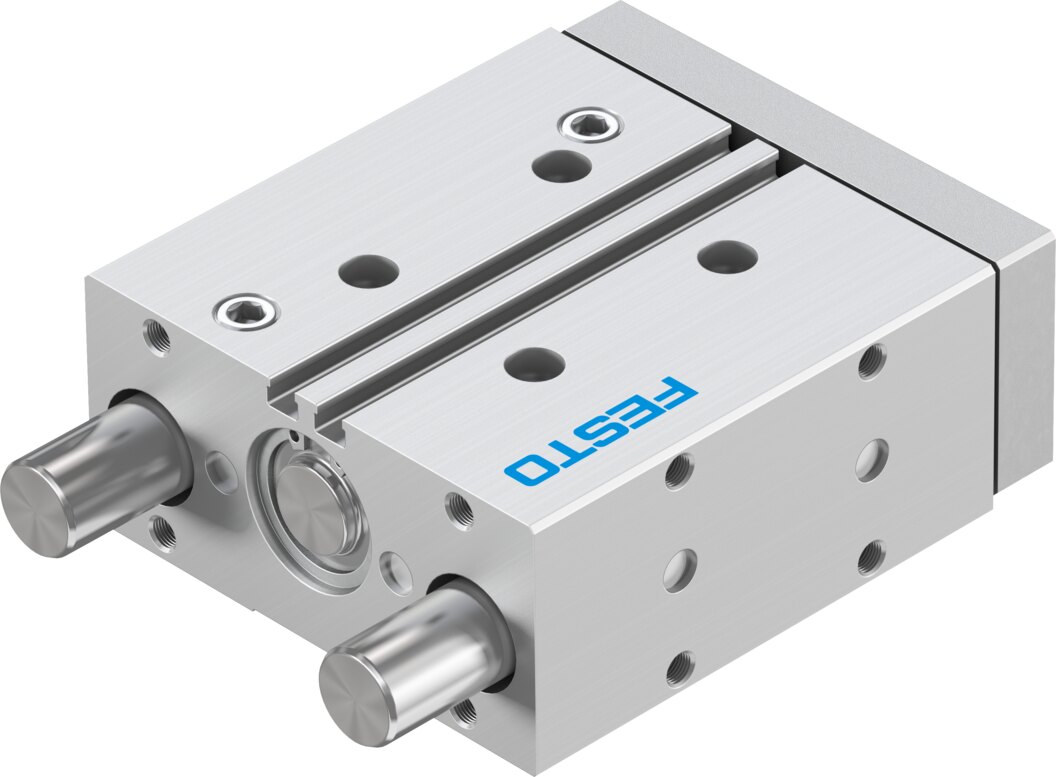

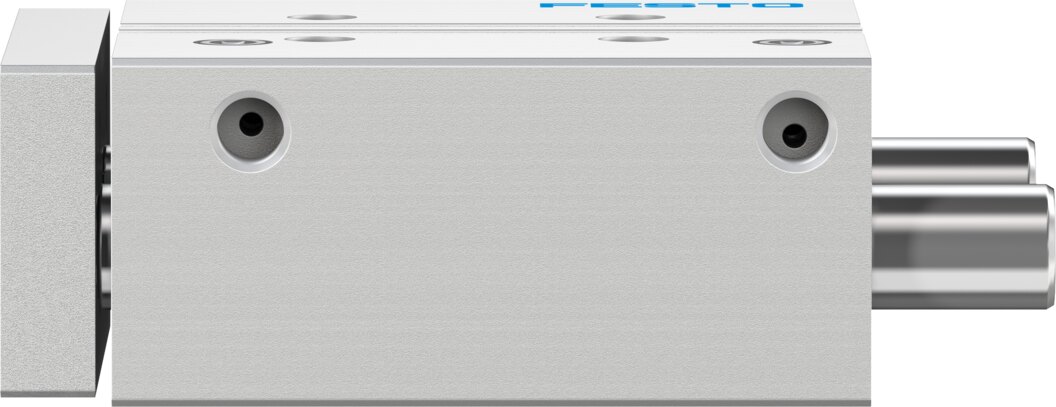

Guided drive with plain-bearing guide Ø 25 mm 50 mm stroke DFM-25-50-P-A-GF-F1A - Festo 8118866

25 mm piston, 50 mm stroke and 295 N advancing force at 6 bar: the DFM-25-50-P-A-GF-F1A guided drive combines drive and guide in one ready-to-fit unit.

Benefits

• Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 810.7 N
• Force: 295 N advance and 247 N return at 6 bar (theoretical)
• Speed: up to 0.8 m/s
• Battery production: reduced Cu/Zn/Ni content (F1a)
• Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
• Piston rod: high-alloy stainless steel

Applications

The DFM-25-50-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-25-50-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 50 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
